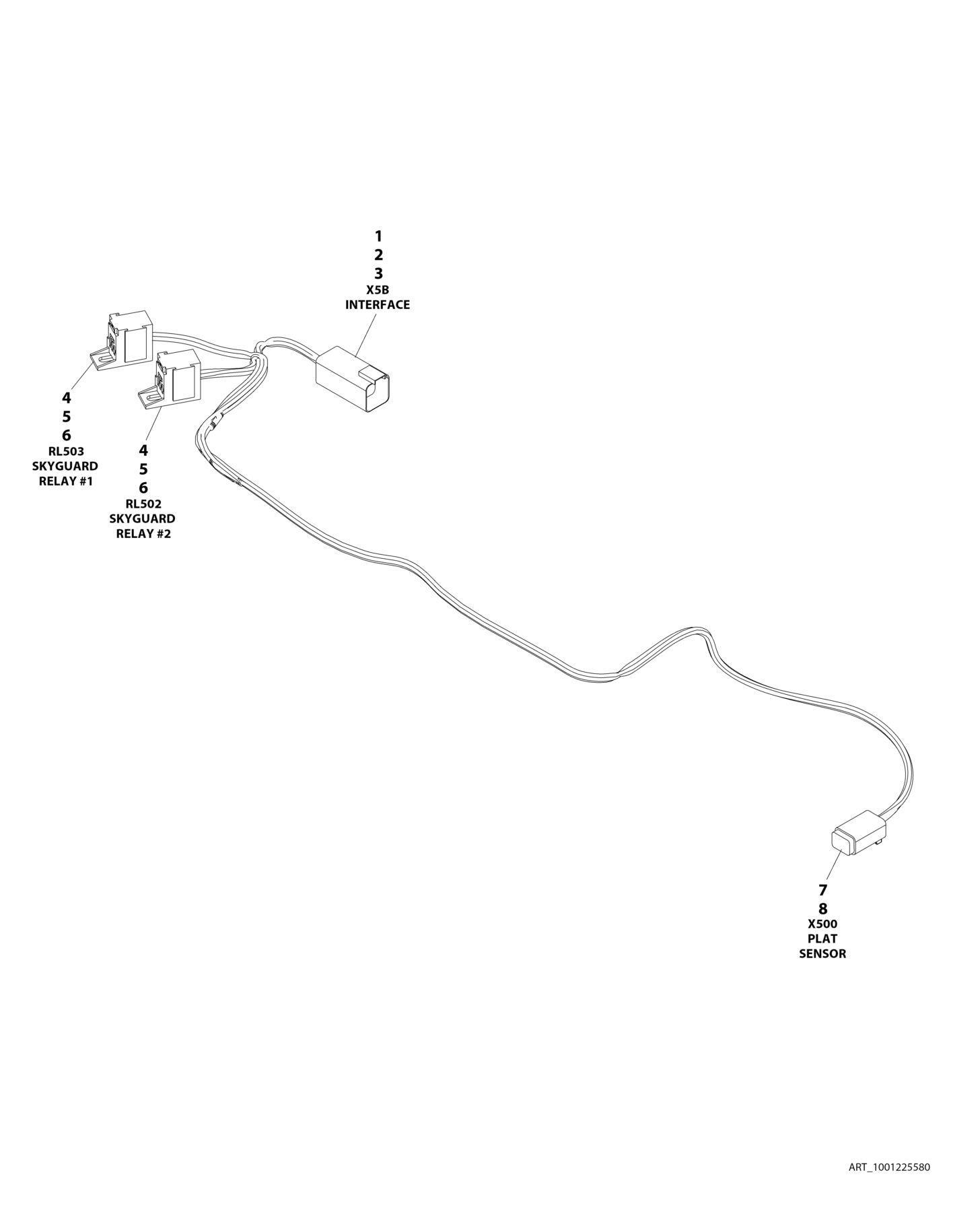

FIGURE 7-33. SKYGUARD INTERFACE HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001225580 Ref INTERFACE HARNESS - WITH 1 CELL LSS 1 4460899 1 Connector 2 4460464 4 Terminal 3 4460466 2 Plug 4 1001186432 2 Connector 5 1001116720 4 Terminal 6 1001118388 4 Terminal 7 4460884 1 Connector 8 4460465 4 Terminal

FIGURE 7 33. SKYGUARD INTERFACE HARNESS

Next Article

FIGURE 7 34. SKYEYE EMITTER HARNESS

FIGURE 7-33. SKYGUARD INTERFACE HARNESS

FIGURE 7-33. SKYGUARD INTERFACE HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

REV
