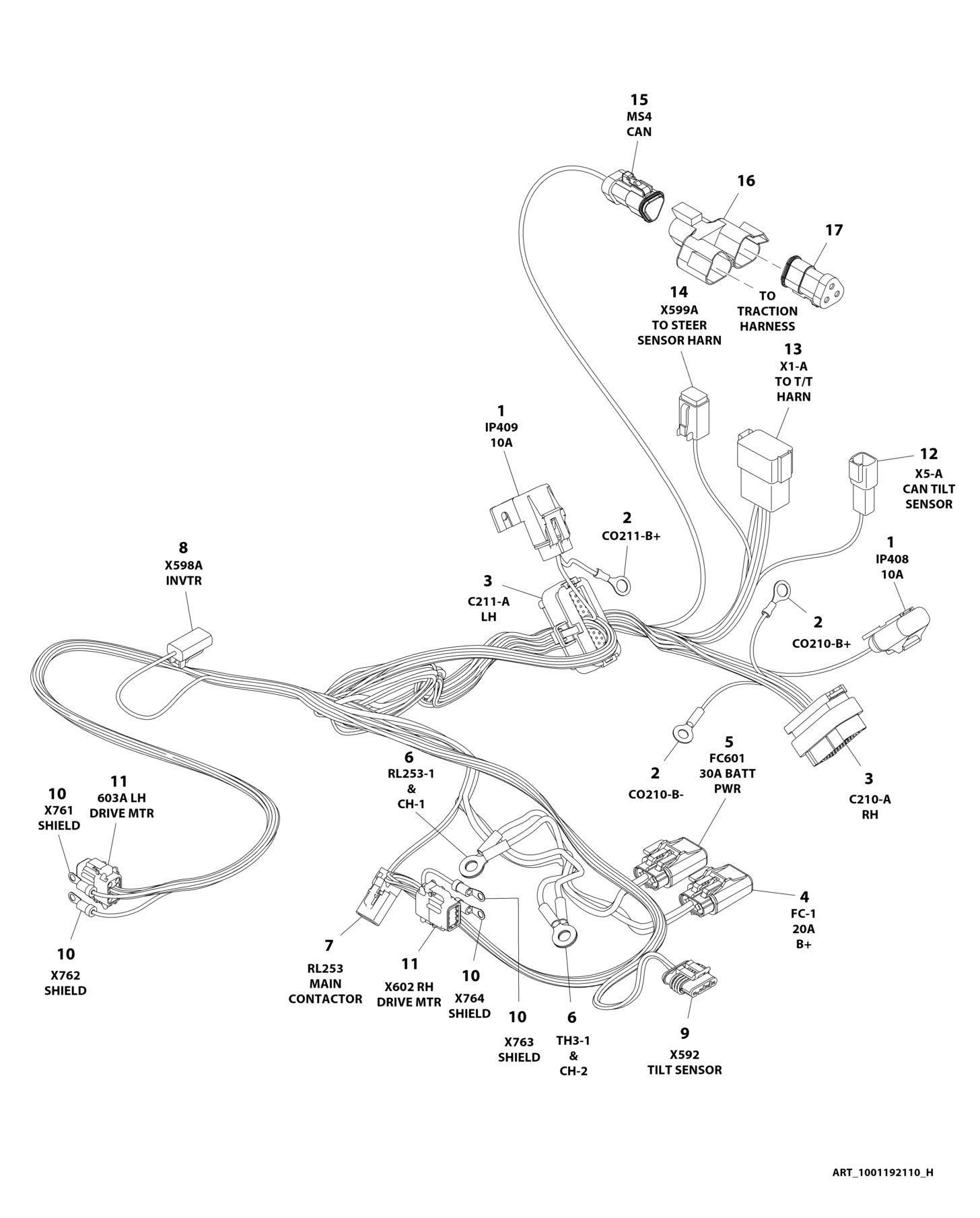

FIGURE 7 39. TRACTION MODULE TO DRIVE HARNESS

FIGURE 7-39. TRACTION MODULE TO DRIVE HARNESS

FIGURE 7-39. TRACTION MODULE TO DRIVE HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001192110 Ref TRACTION MODULE TO DRIVE HARNESS 1 1001217843 2 Fuseholder 1 1001217842 2 Cover 1 8229234 2 Fuse 10Amp 1 1001116733 4 Terminal 2 4460670 3 Terminal, Ring 3 4460873 1 Connector - 35 Position 3 4460871 27 Socket, Female 3 4460905 43 Plug, Terminal 4 1001217844 1 Fuseholder 4 1001217842 1 Cover 4 8229235 1 Fuse 20Amp 4 1001116734 2 Terminal 5 1001117070 1 Fuse Assembly with Cap - 30Amp 5 1001096134 1 Cover 5 1001116734 2 Terminal 5 1001217844 1 Fuseholder 5 1001217842 1 Cover 5 8229236 1 Fuse 30Amp 5 1001116734 2 Terminal 6 8220045 4 Terminal, Ring 7 1001126245 1 Plug, Male - 2 Position 7 1001126008 2 Socket, Female 8 4460891 1 Plug, Male - 2 Position 8 4460465 1 Socket, Female 8 4460466 1 Plug, Terminal 9 1001103012 1 Plug, Male - 4 Position 9 1001107854 4 Terminal 9 1001104498 4 Seal 10 4460042 4 Terminal, Ring 11 1001190577 1 Plug, Male - 8 Position 11 1001126008 16 Socket, Female 12 4460897 1 Receptacle, Female - 2 Position 12 4460464 2 Pin, Male 13 4460950 1 Receptacle, Female - 12 Position 13 1001157891 4 Pin, Male 13 4460464 6 Pin, Male 13 4460466 2 Plug, Terminal 14 4460884 1 Plug, Male - 4 Position 14 4460465 3 Socket, Female 14 4460466 1 Plug, Terminal 15 1001116812 1 Plug, Male - 3 Position 15 4460944 2 Socket, Female 15 4460466 1 Plug, Terminal 16 4460945 1 Connector - 3 Way 17 1001116815 1 Resistor Assembly

REV

H
