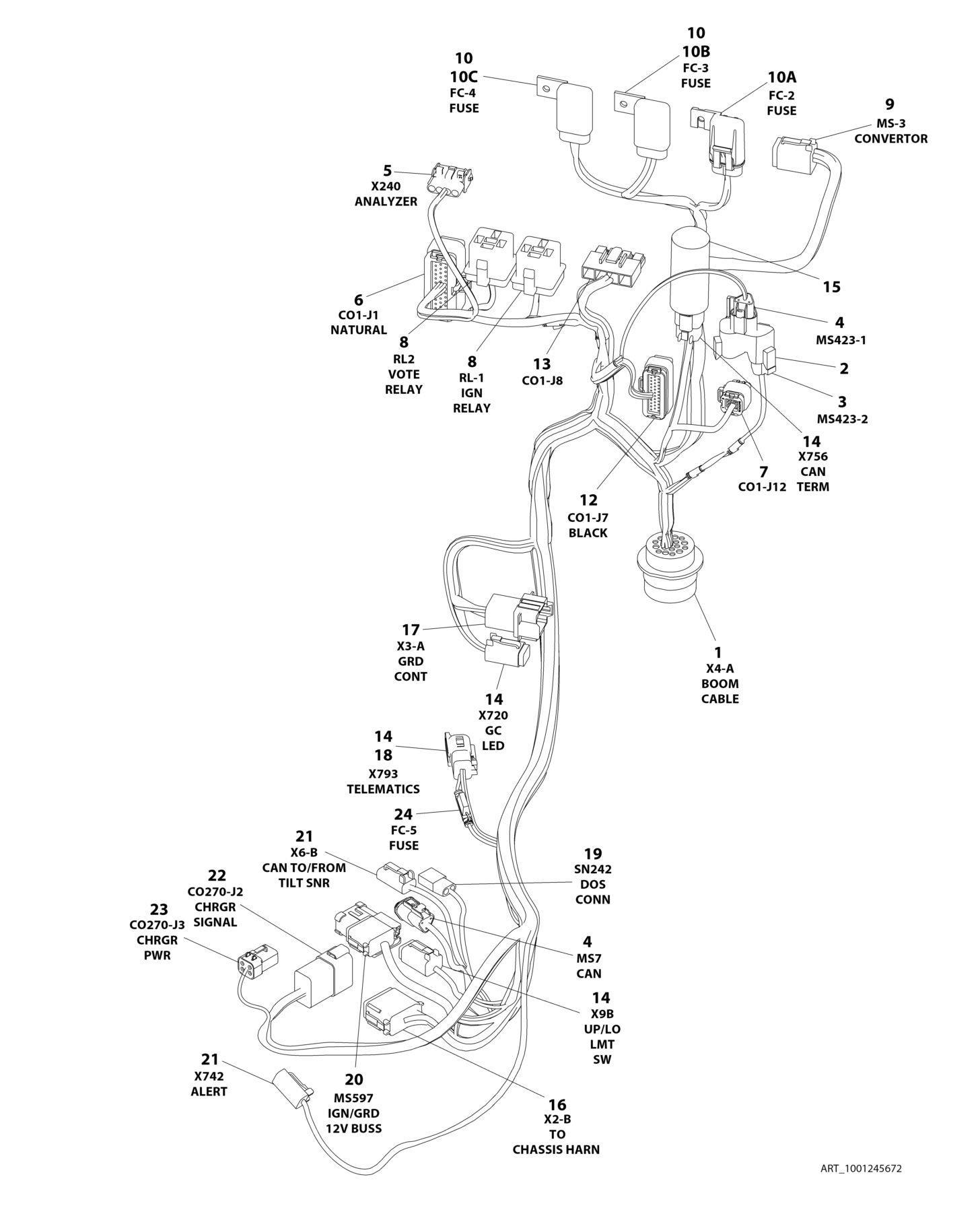

FIGURE 7 41. TURNTABLE HARNESS
FIGURE 7-41. TURNTABLE HARNESS
FIGURE 7-41. TURNTABLE HARNESS
ITEM PART NUMBER QTY
1001245672 Ref TURNTABLE HARNESS
DESCRIPTION
1 4460866 1 Connector - 19 Position 1 4460943 2 Pin, Male 1 4460464 6 Pin, Male 1 4460508 4 Pin, Male 1 4460466 7 Plug, Terminal 2 4460945 1 Receptacle, 3 Way 2 1001173387 1 Clip, Mounting 3 4460539 1 Plug, Male - 3 Position 3 4460944 2 Socket, Female 3 4460466 1 Plug, Terminal 4 1001116812 2 Plug, Male - 3 Position 4 4460944 4 Socket, Female 4 4460466 2 Plug, Terminal 5 4460761 1 Receptacle, Female - 4 Position 5 4460227 4 Pin, Male 6 4460874 1 Connector - 35 Position 6 4460871 12 Socket, Female 6 4460905 23 Plug, Terminal 7 1001113961 1 Plug, Male - 8 Position 7 4460871 3 Socket, Female 7 4460905 5 Plug, Terminal 8 1001203734 2 Plug, Relay 8 1001116732 6 Terminal 8 1001116733 2 Terminal 9 4460894 1 Plug, Male - 6 Position 9 1001157890 5 Socket, Female 9 4460465 1 Socket, Female 10 1001117024 1 Fuseholder with Cover and Fuse - 15Amp 10 1001096134 1 Cover 10 See Note 1 Fuse 15Amp ATO (Note: Use p/n 1001117024 or Purchase Locally) 10 1001217844 3 Fuseholder 10 1001217842 3 Cover 10 1001116734 6 Terminal 10A 8229237 1 Fuse 15Amp ATO 10B 8229261 1 Fuse 5Amp 10C 8229235 1 Fuse 20 Amp 12 4460873 1 Connector - 35 Position 12 4460871 16 Socket, Female 12 4460905 19 Plug, Terminal 13 4460878 1 Receptacle, Female - 4 Position 13 4460887 4 Terminal 14 4460884 4 Plug, Male - 4 Position 14 4460465 16 Socket, Female 15 1001186231 1 Resistor Assembly 16 4460836 1 Plug, Male - 12 Position 16 1001157890 4 Socket, Female 16 4460465 6 Socket, Female 16 4460466 2 Plug, Terminal
REV
B
ITEM PART NUMBER QTY
DESCRIPTION
17 1001116813 1 Receptacle, Female - 8 Position 17 4460464 5 Pin, Male 17 1001157891 2 Pin, Male 17 4460466 1 Plug, Terminal 18 1001192401 1 Cap, Dust 19 4460424 1 Plug, Male - 2 Position 19 4460226 2 Socket, Female 20 4460933 1 Plug, Male - 12 Position 20 1001157890 1 Socket, Female 20 4460465 1 Socket, Female 20 4460942 3 Socket, Female 20 4460466 6 Plug, Terminal 20 1001125677 1 Bussbar- Female - 12 Position 21 4460891 2 Plug, Male - 2 Position 21 4460465 4 Socket, Female 22 4460931 1 Receptacle, Female - 8 Position 22 4460464 6 Pin, Male 22 4460466 2 Plug, Terminal 23 1001116810 1 Plug, Male - 4 Position 23 4460905 2 Plug, Terminal 23 4460466 2 Plug, Terminal 24 2400060 1 Holder, Fuse 24 8229242 1 Fuse 5Amp
