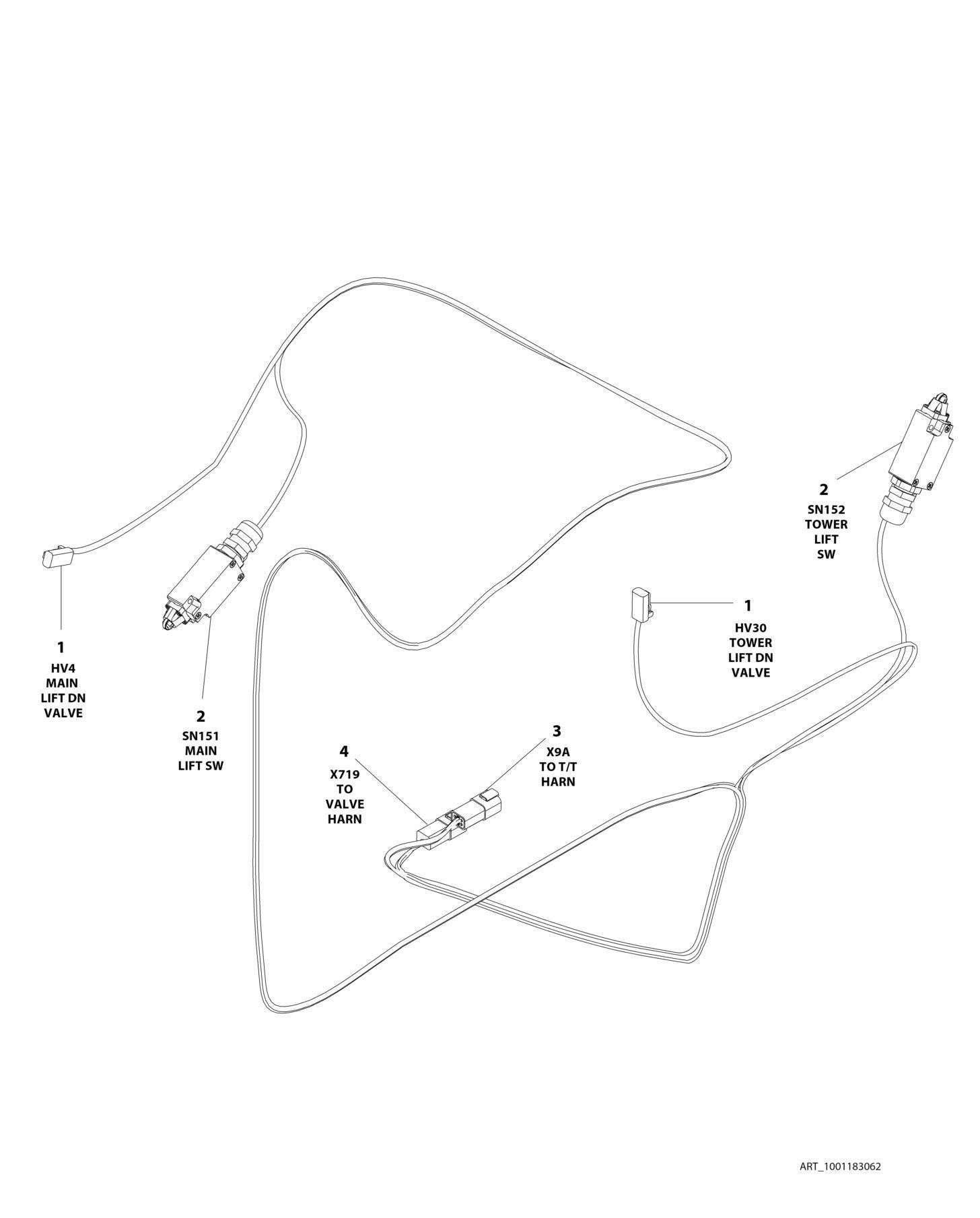

FIGURE 7 17. BOOM VALVE AND LIMIT SWITCH HARNESS
FIGURE 7-17. BOOM VALVE AND LIMIT SWITCH HARNESS
FIGURE 7-17. BOOM VALVE AND LIMIT SWITCH HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
1001183062 Ref BOOM VALVE AND LIMIT SWITCH HARNESS 1 4460891 2 Plug, Male - 2 Position 1 4460465 4 Socket, Female 2 4360548 2 Switch, Limit 2 4460968 2 Connector, Strain Relief 2 0962449 2 Bushing 3 4460932 1 Receptacle, Female - 4 Position 3 4460464 4 Pin, Male 4 1001205184 1 Receptacle, Female - 4 Position 4 1001116693 4 Pin, Male
REV
E
