FIGURE 7 16. BOOM HARNESS TOWER BOOM

from JLG E300AJ E300AJP PVC 2001 Parts Manual (31215002)_english

FIGURE 10 1. SPECIAL OPTIONS

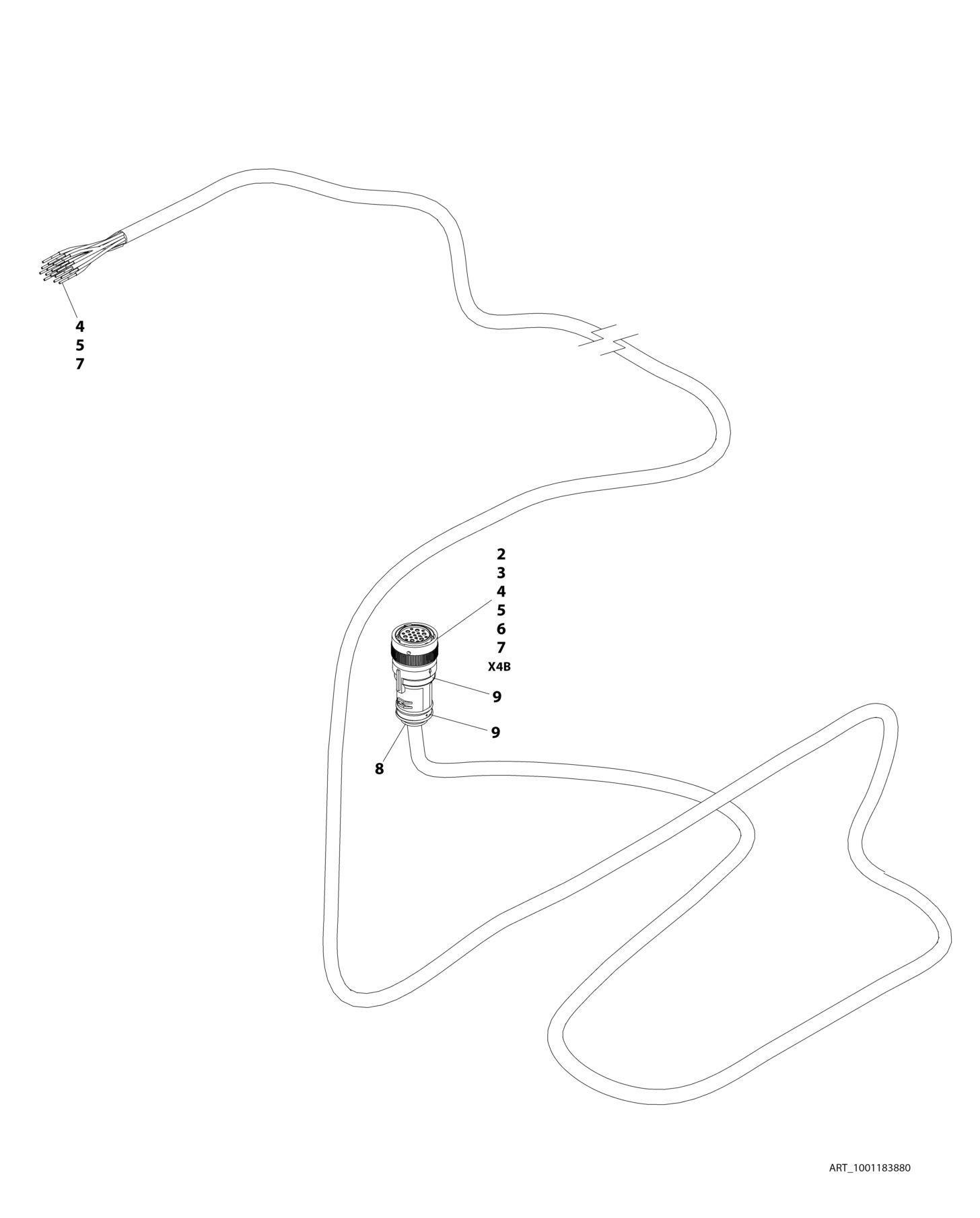

FIGURE 7-16. BOOM HARNESS - TOWER BOOM

ITEM PART NUMBER QTY

DESCRIPTION

1001183880 Ref BOOM HARNESS - TOWER BOOM 2 1001188292 1 Connector - 19 Position 3 1001188291 1 Backshell 4 4460465 22 Socket, Female 5 4460509 8 Socket, Female 6 4460466 4 Plug, Terminal 7 2820118 AR Heat Shrink 8 1001188354 1 Grommet 9 4240033 2 Tie-Wire

FIGURE 7 16. BOOM HARNESS TOWER BOOM

Next Article

FIGURE 10 1. SPECIAL OPTIONS

FIGURE 7-16. BOOM HARNESS - TOWER BOOM

FIGURE 7-16. BOOM HARNESS - TOWER BOOM

ITEM PART NUMBER QTY

DESCRIPTION

REV
