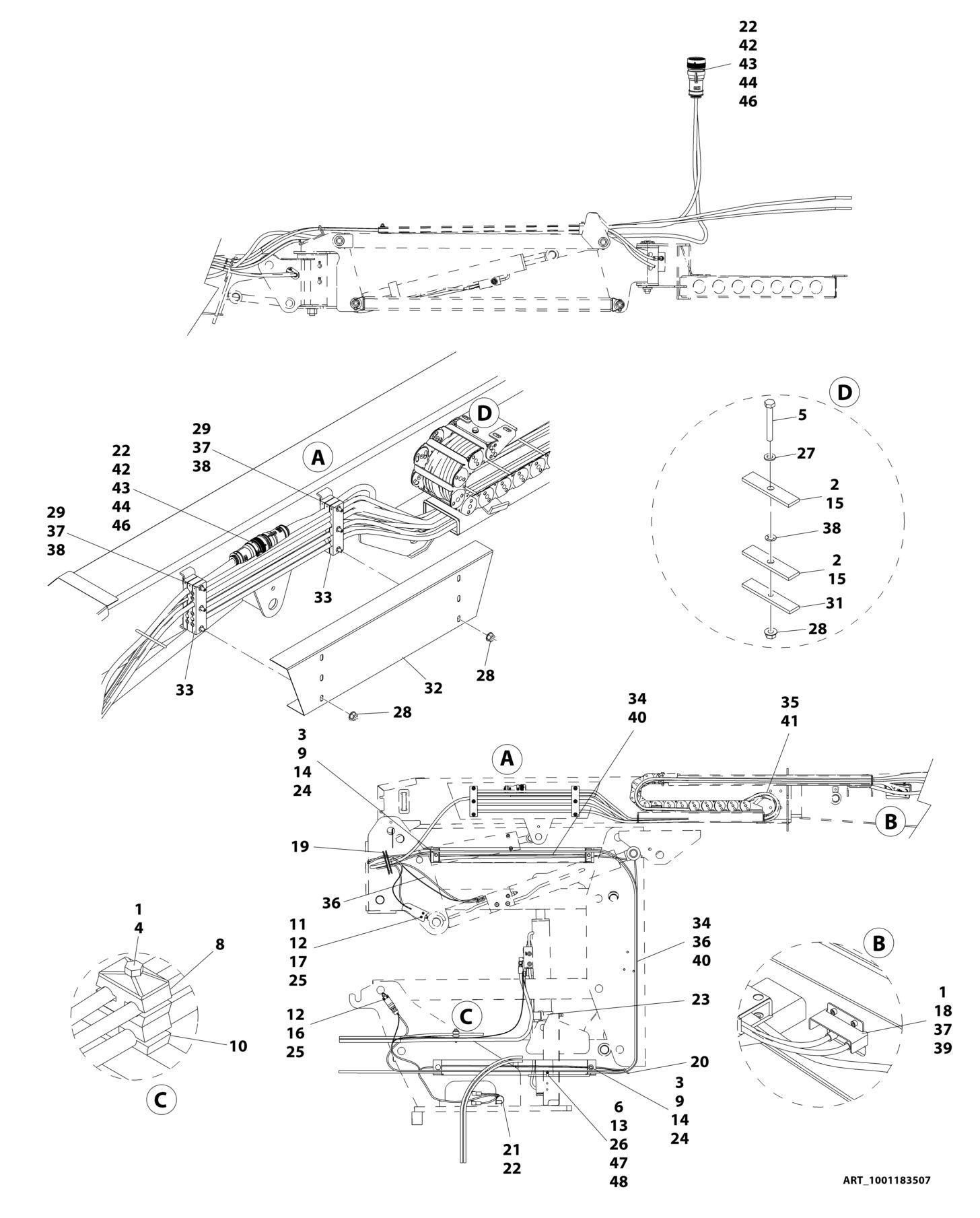

FIGURE 7 14. BOOM CABLES AND CLAMPS INSTALLATION E300AJP
ITEM PART NUMBER QTY DESCRIPTION REV
1001183507 Ref BOOM CABLES AND CLAMPS INSTALLATION - E300AJP E 1 0100011 AR Compound, Locking 2 0100081 AR Adhesive 3 0641416 6 Bolt 1/4 x 2 3 0641418 6 Bolt 1/4 x 2-1/4 4 0641511 1 Bolt 5/16 x 1-3/8 4 0641520 1 Bolt 5/16 x 2-1/2 5 0700820 2 Bolt M8 x 60 6 0721006 1 Screw #10 x 3/4 7 1320043 1 Clamp 8 1320159 1 Clamp 9 1320261 6 Clamp 10 1320262 1 Clamp 11 1670899 1 Cover, Switch 12 3310805 4 Nut #8 13 3311005 1 Nut #10 14 3311405 6 Nut 1/4 15 3340939 4 Pad, Rubber 16 3930820 2 Capscrew #8 x 1-1/4 17 3930828 2 Capscrew #8 x 1-3/4 18 4031908 2 Capscrew M8 x 20 19 4060808 AR Flex-Trim 20 4100066 2 Sleeve 21 4240018 AR Strap 22 4240033 AR Tie-Wire 23 4240156 2 Strap, Cinch 24 4711400 6 Washer 1/4 25 4750800 4 Washer #8 26 4751000 2 Washer #10 27 4811900 2 Washer M8 28 5260800 8 Nut M8 Grade 10.9 29 5281920 6 Screw M8 x 80 30 8750011 1 Bolt 31 1001106757 2 Plate, Clamp 32 1001107152 1 Plate, Shield 33 1001204216 2 Clamp, Block 34 1001109756 1 AC Cable - Tower Boom 35 1001109757 1 AC Cable - Main Boom 35 4460709 1 Plug, Male 36 1001183062 1 Boom Valve and Limit Switch Harness (See Separate Breakdown in this Section) 37 1001118274 8 Nut M8 38 1001119228 8 Nut, Push M8 39 1001122600 1 Plate, Cover 40 1001183880 1 Boom Harness - Tower Boom(See Separate Breakdown in this Section) 41 1001183881 1 Boom Harness - Main Boom(See Separate Breakdown in this Section) 42 1001188354 2 Grommet 43 1001188291 2 Backshell
ITEM PART NUMBER QTY
44 1001188292 2 Connector - 19 Position 46 4460466 8 Plug, Terminal 47 4240032 1 Tie-Strap 48 4460234 1 Mount, Tie-Strap
