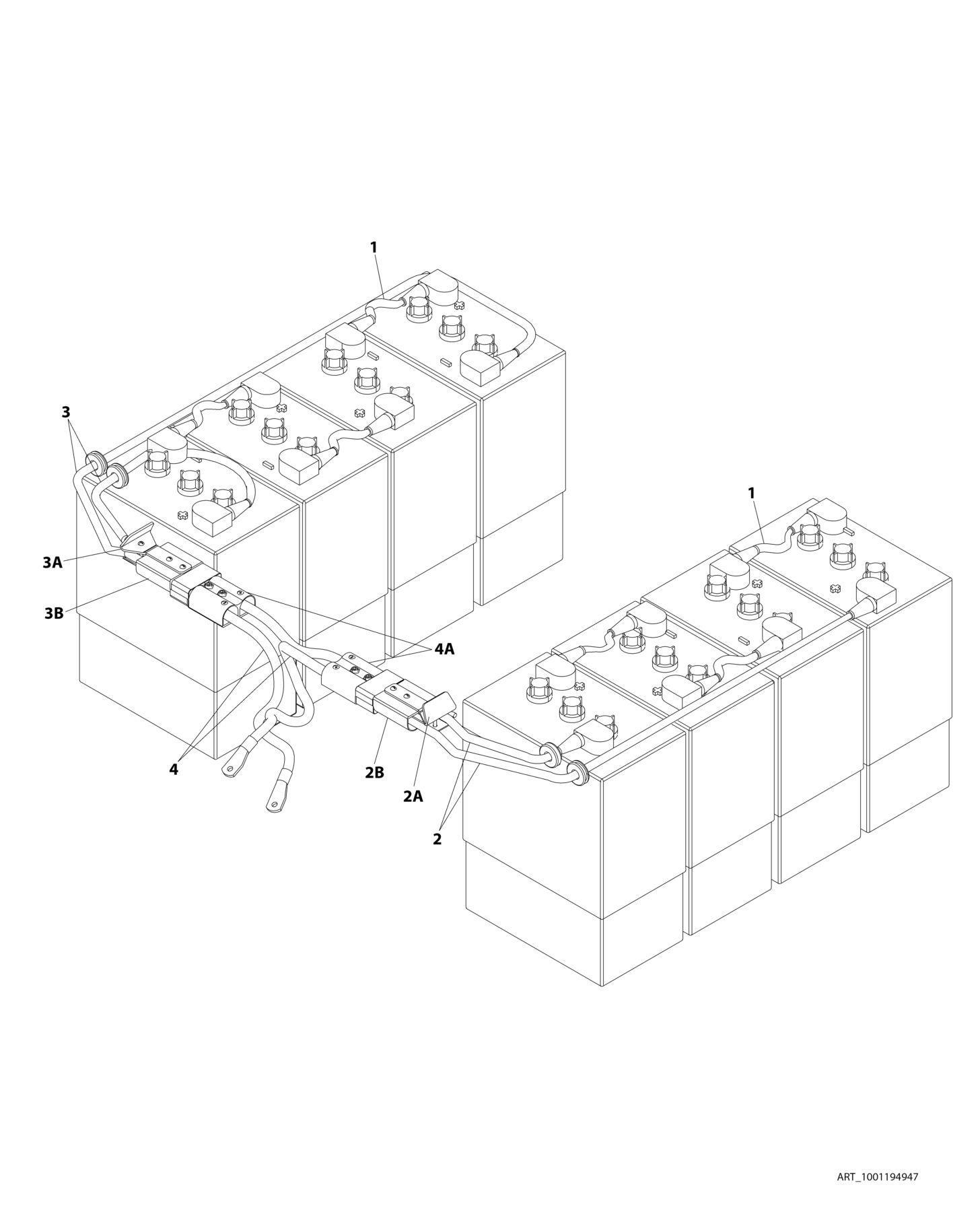

FIGURE 7 12. BATTERY CABLE KIT 375AH/706HD BATTERIES

FIGURE 7-12. BATTERY CABLE KIT - 375AH/706HD BATTERIES

FIGURE 7-12. BATTERY CABLE KIT - 375AH/706HD BATTERIES

ITEM PART NUMBER QTY

DESCRIPTION

1001194947 Ref BATTERY CABLE KIT - 375AH/706HD BATTERIES 1 1060092 6 Cable, Battery - Positive to Negative 2 1060742 1 Cable, Right Battery Box 2A 1320172 1 Handle 2B 4460025 1 Connector, Anderson 3 1060743 1 Cable, Left Battery Box 3A 1320172 1 Handle 3B 4460025 1 Connector, Anderson 4 1001181412 1 Cable, Battery 4A 4460025 2 Connector, Anderson

REV

D
