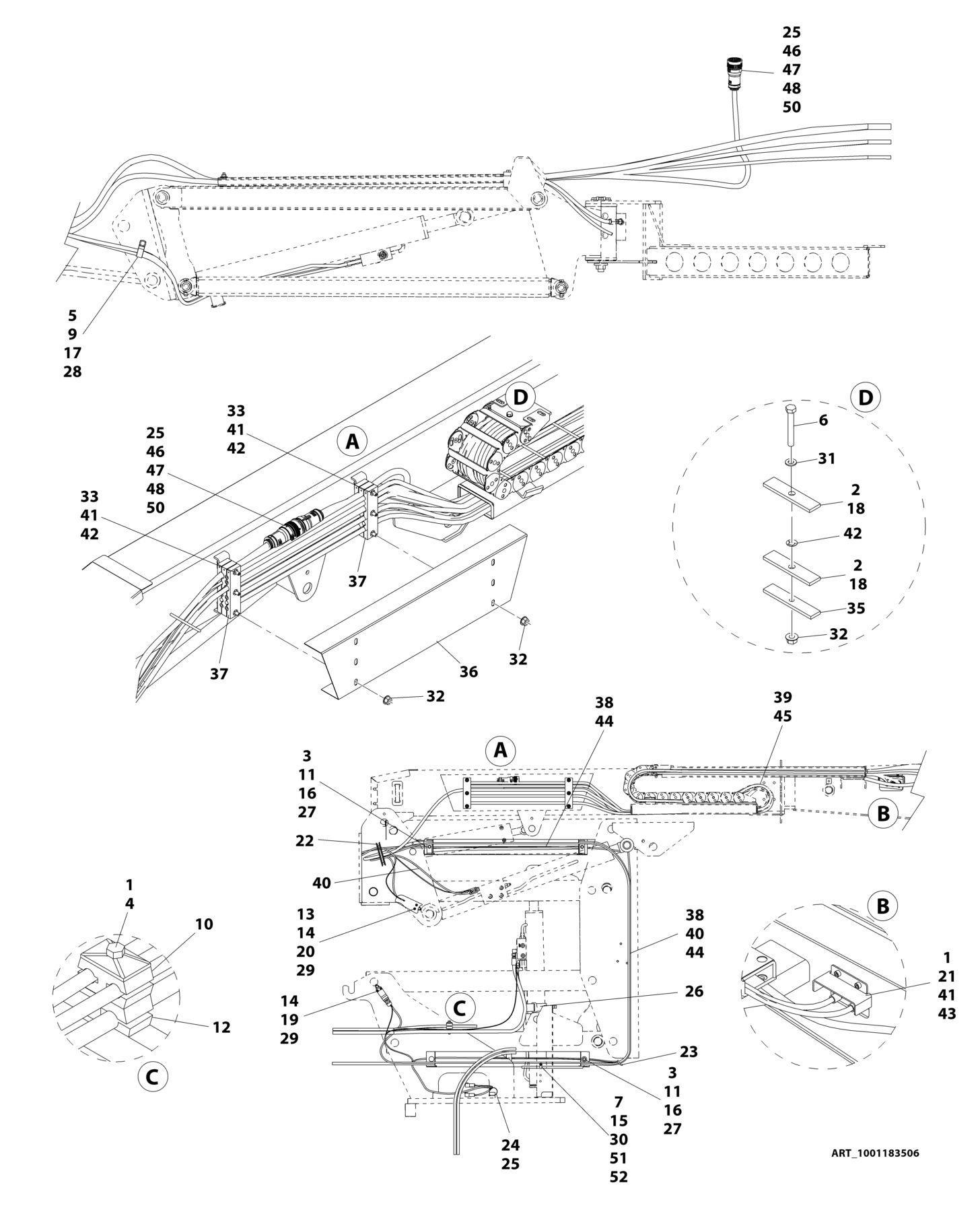

FIGURE 7 13. BOOM CABLES AND CLAMPS INSTALLATION E300AJ
ITEM PART NUMBER QTY
DESCRIPTION
1001183506 Ref BOOM CABLES AND CLAMPS INSTALLATION - E300AJ 1 0100011 AR Compound, Locking 2 0100081 AR Adhesive 3 0641416 6 Bolt 1/4 x 2 3 0641418 6 Bolt 1/4 x 2-1/4 4 0641511 1 Bolt 5/16 x 1-3/8 4 0641520 1 Bolt 5/16 x 2-1/2 5 0641608 1 Bolt 3/8 x 1 6 0700820 2 Bolt M8 x 60 7 0721006 1 Screw #10 x 3/4 9 1320130 1 Clamp 10 1320159 1 Clamp 11 1320261 6 Clamp 12 1320262 1 Clamp 13 1670899 1 Cover, Switch 14 3310805 4 Nut #8 15 3311005 1 Nut #10 16 3311405 6 Nut 1/4 17 3311605 1 Nut 3/8 18 3340939 4 Pad, Rubber 19 3930820 2 Capscrew #8 x 1-1/4 20 3930828 2 Capscrew #8 x 1-3/4 21 4031908 2 Capscrew M8 x 20 22 4060808 AR Flex-Trim 23 4100066 2 Sleeve 24 4240018 AR Strap 25 4240033 AR Tie-Wire 26 4240156 2 Strap, Cinch 27 4711400 6 Washer 1/4 28 4711600 2 Washer 3/8 29 4750800 4 Washer #8 30 4751000 2 Washer #10 31 4811900 2 Washer M8 32 5260800 8 Nut M8 Grade 10.9 33 5281920 6 Screw M8 x 80 35 1001106757 2 Plate, Clamp 36 1001107152 1 Plate, Shield 37 1001204216 2 Clamp, Block 38 1001109756 1 AC Cable - Tower Boom 39 1001109757 1 AC Cable - Main Boom 39 4460709 1 Plug, Male 40 1001183062 1 Boom Valve and Limit Switch Harness (See Separate Breakdown in this Section) 41 1001118274 8 Nut M8 42 1001119228 8 Nut, Push M8 43 1001122600 1 Plate, Cover 44 1001183880 1 Boom Harness - Tower Boom(See Separate Breakdown in this Section) 45 1001183881 1 Boom Harness - Main Boom (See Separate Breakdown in this Section)
REV
E
ITEM PART NUMBER QTY
46 1001188354 2 Grommet 47 1001188291 2 Backshell 48 1001188292 2 Connector - 19 Position 50 4460466 8 Plug, Terminal 51 4240032 1 Tie-Strap 52 4460234 1 Mount, Tie-Strap
