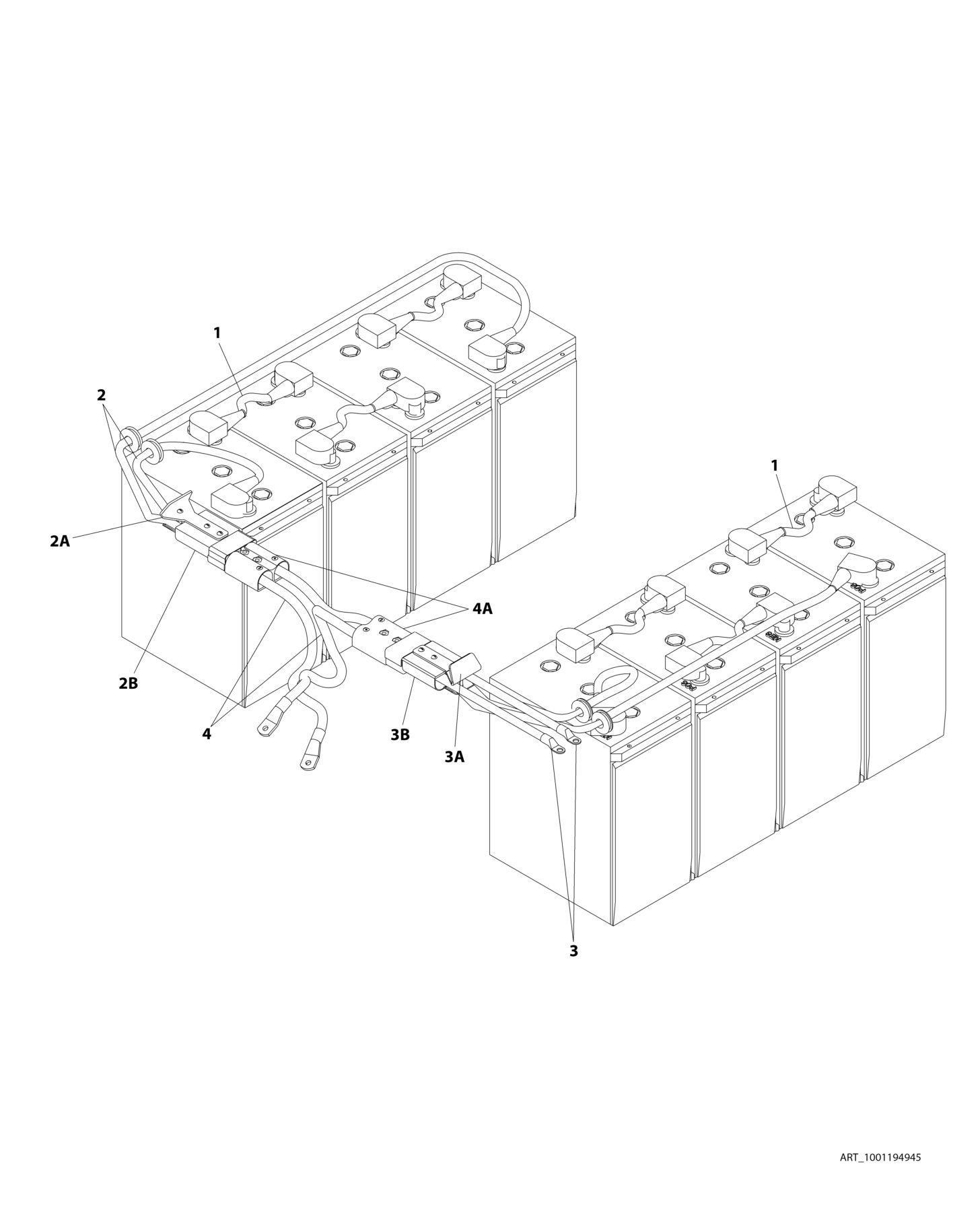

FIGURE 7 11. BATTERY CABLE KIT 305AH AGM BATTERIES

FIGURE 7-11. BATTERY CABLE KIT - 305AH AGM BATTERIES

FIGURE 7-11. BATTERY CABLE KIT - 305AH AGM BATTERIES

ITEM PART NUMBER QTY

DESCRIPTION

1001194945 Ref BATTERY CABLE KIT - 305AH AGM BATTERIES 1 1060092 6 Cable, Battery - Positive to Negative 2 1060743 1 Cable, Left Battery Box 2A 1320172 1 Handle 2B 4460025 1 Connector, Anderson 3 1001116018 1 Cable, Right Battery Box 3A 1320172 1 Handle 3B 4460025 1 Connector, Anderson 4 1001181412 1 Cable, Battery 4A 4460025 2 Connector, Anderson

REV

C
