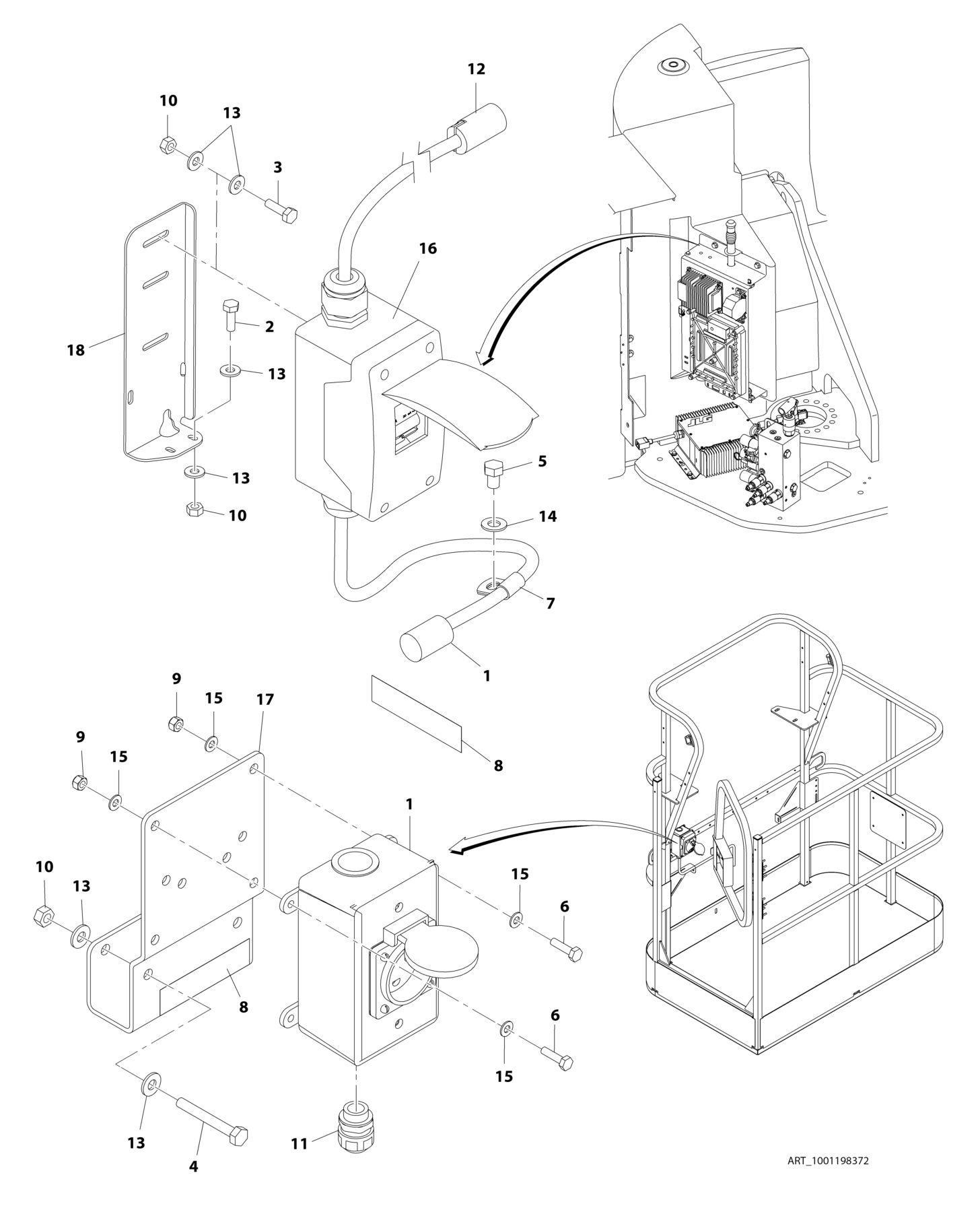

FIGURE 7 8. AC BOX AT PLATFORM INSTALLATION 220V CEE7 SIDE GROUND (CE SPECS
ITEM PART NUMBER QTY
DESCRIPTION
1001198372 Ref AC BOX AT PLATFORM INSTALLATION - 220V CEE7 SIDE GROUND (CE SPEC) 1 0275453 1 Receptacle Box Kit (See Separate Breakdown in this Section) 2 0641406 2 Bolt 1/4 x 3/4 3 0641407 2 Bolt 1/4 x 7/8 4 0641416 2 Bolt 1/4 x 2 5 0641604 1 Bolt 3/8 x 1/2 6 0700408 4 Bolt M4 x 16 7 1320263 1 Clamp 8 3252507 2 Decal - 220V-50/60Hz 9 3290405 4 Nut M4 10 3311405 6 Nut 1/4 11 4460662 1 Connector, Strain Relief 12 4460710 1 Receptacle, Female 13 4711400 12 Washer 14 4751600 1 Washer 3/8 15 4811400 8 Washer M4 16 2902549 1 Breaker Box Kit - CE Specs (See Separate Breakdown in this Section) 17 1001193018 1 Bracket 18 1001197584 1 Bracket
REV
A
