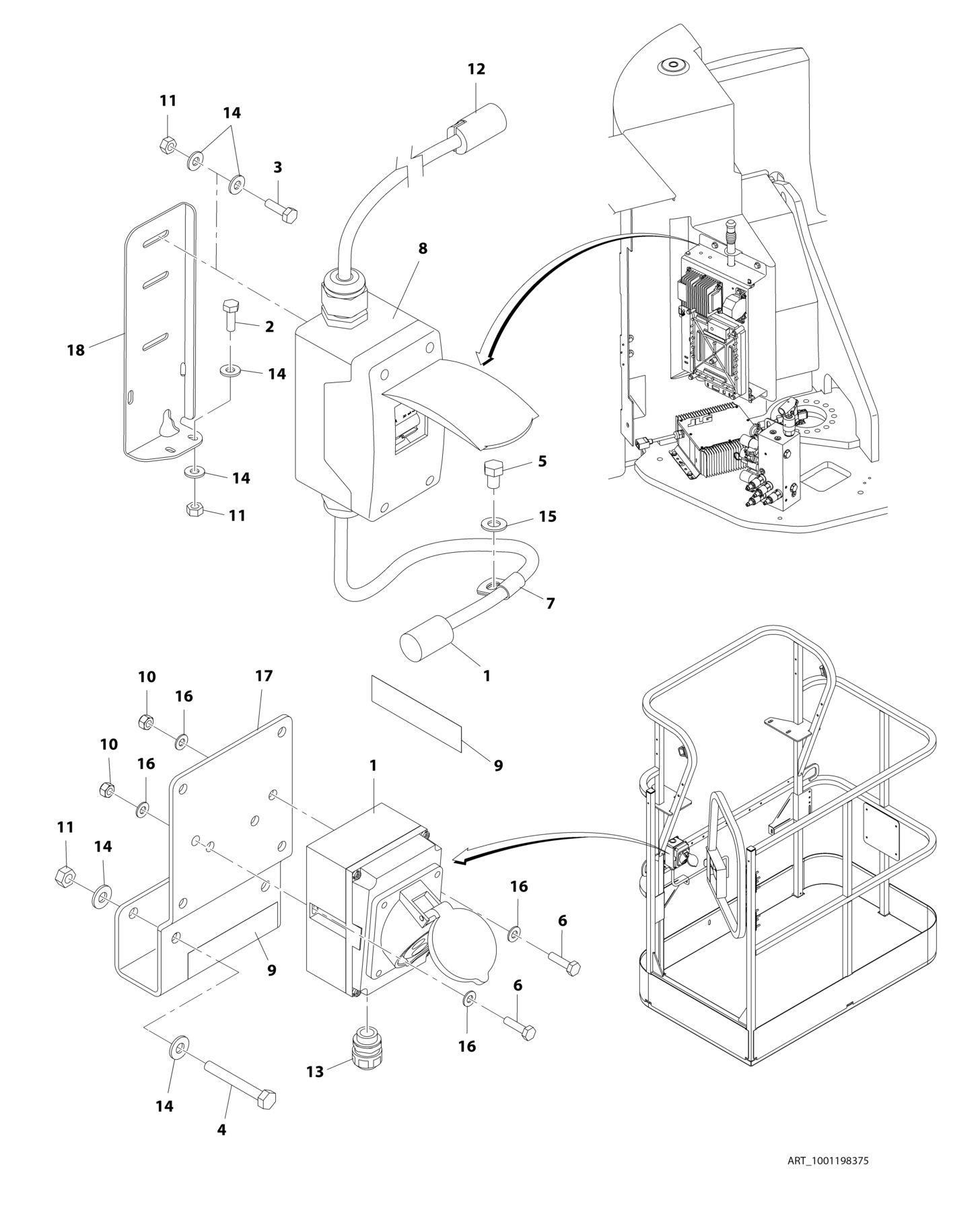

FIGURE 7 5. AC BOX AT PLATFORM INSTALLATION 220V IEC BLUE (CE SPECS
ITEM PART NUMBER QTY
DESCRIPTION
1001198375 Ref AC BOX AT PLATFORM INSTALLATION - 220V IEC BLUE (CE SPEC) 1 0275217 1 Receptacle Box Kit (See Separate Breakdown in this Section) 2 0641406 2 Bolt 1/4 x 3/4 3 0641407 2 Bolt 1/4 x 7/8 4 0641416 2 Bolt 1/4 x 2 5 0641604 1 Bolt 3/8 x 1/2 6 0700408 2 Bolt M4 x 16 7 1320263 1 Clamp 8 2902549 1 Breaker Box Kit - CE Specs (See Separate Breakdown in this Section) 9 3252507 2 Decal - 220V-50/60Hz 10 3290405 2 Nut M4 11 3311405 6 Nut 1/4 12 4460710 1 Receptacle, Female 13 4460968 1 Connector, Strain Relief 14 4711400 12 Washer 15 4751600 1 Washer 3/8 16 4811400 4 Washer M4 17 1001193018 1 Bracket 18 1001197584 1 Bracket
