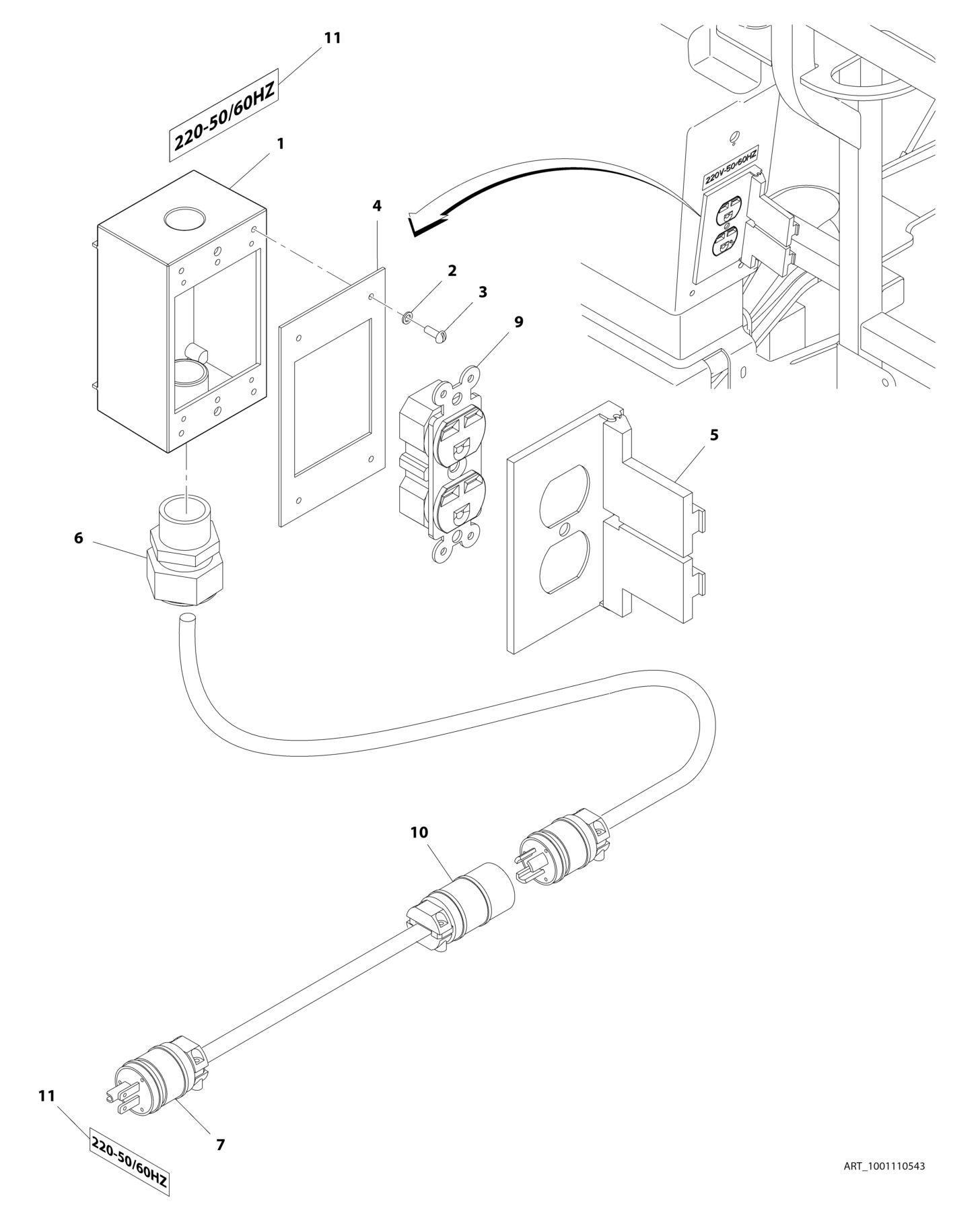

FIGURE 7 3. AC BOX AT PLATFORM INSTALLATION ANSI AND CSA SPECS

FIGURE 7-3. AC BOX AT PLATFORM INSTALLATION - ANSI AND CSA SPECS

FIGURE 7-3. AC BOX AT PLATFORM INSTALLATION - ANSI AND CSA SPECS

ITEM PART NUMBER QTY

DESCRIPTION

1001110543 Ref AC BOX AT PLATFORM INSTALLATION 1 0860038 1 Box, Switch 2 4760600 4 Washer #6 3 3910610 4 Screw #6 x 5/8 4 3960422 1 Gasket 5 4060092 1 Shield, Cover 6 4460071 1 Connector, Strain Relief 7 4460233 1 Plug, Male 9 4460125 1 Receptacle 10 4460710 1 Receptacle, Female 11 3252507 1 Decal - 220V-50/60Hz

REV

B
