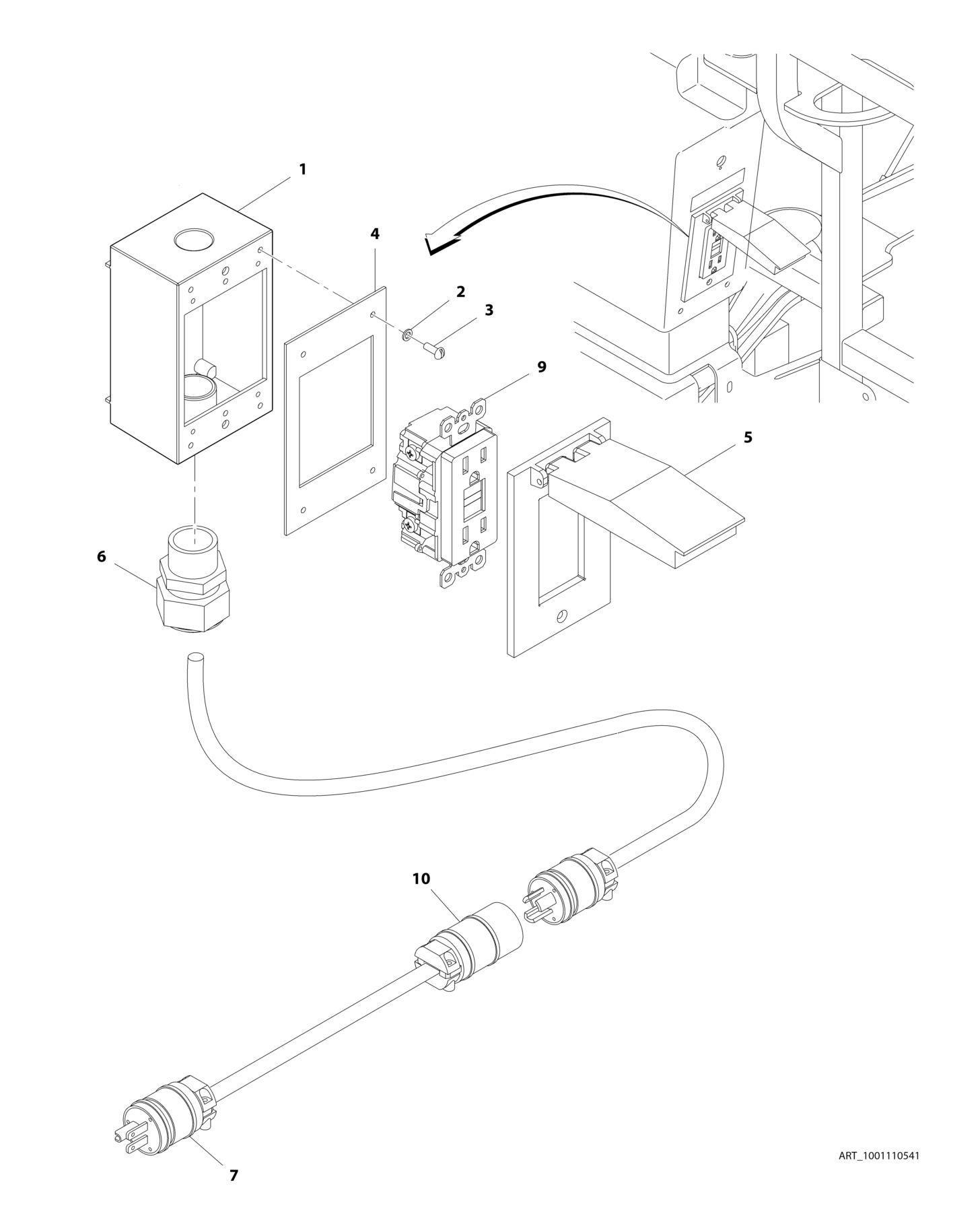

FIGURE 7 2. AC BOX AT PLATFORM INSTALLATION 110V (ANSI, ANSI EXPORT, CSA, JAPANESE AND UL SPECS

FIGURE 7-2. AC BOX AT PLATFORM INSTALLATION - 110V (ANSI, ANSI EXPORT, CSA, JAPANESE AND UL SPECS)

FIGURE 7-2. AC BOX AT PLATFORM INSTALLATION - 110V (ANSI, ANSI EXPORT, CSA, JAPANESE AND UL SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001110541 Ref AC BOX AT PLATFORM INSTALLATION - 110V 1 0860038 1 Box, Switch 2 4760600 4 Washer #6 3 3910610 4 Screw #6 x 5/8 4 3960422 1 Gasket 5 1001110873 1 Shield, Cover 6 4460071 1 Connector, Strain Relief 7 4460205 1 Plug, Male 9 4460346 1 Receptacle 10 4460710 1 Receptacle, Female

REV

B
