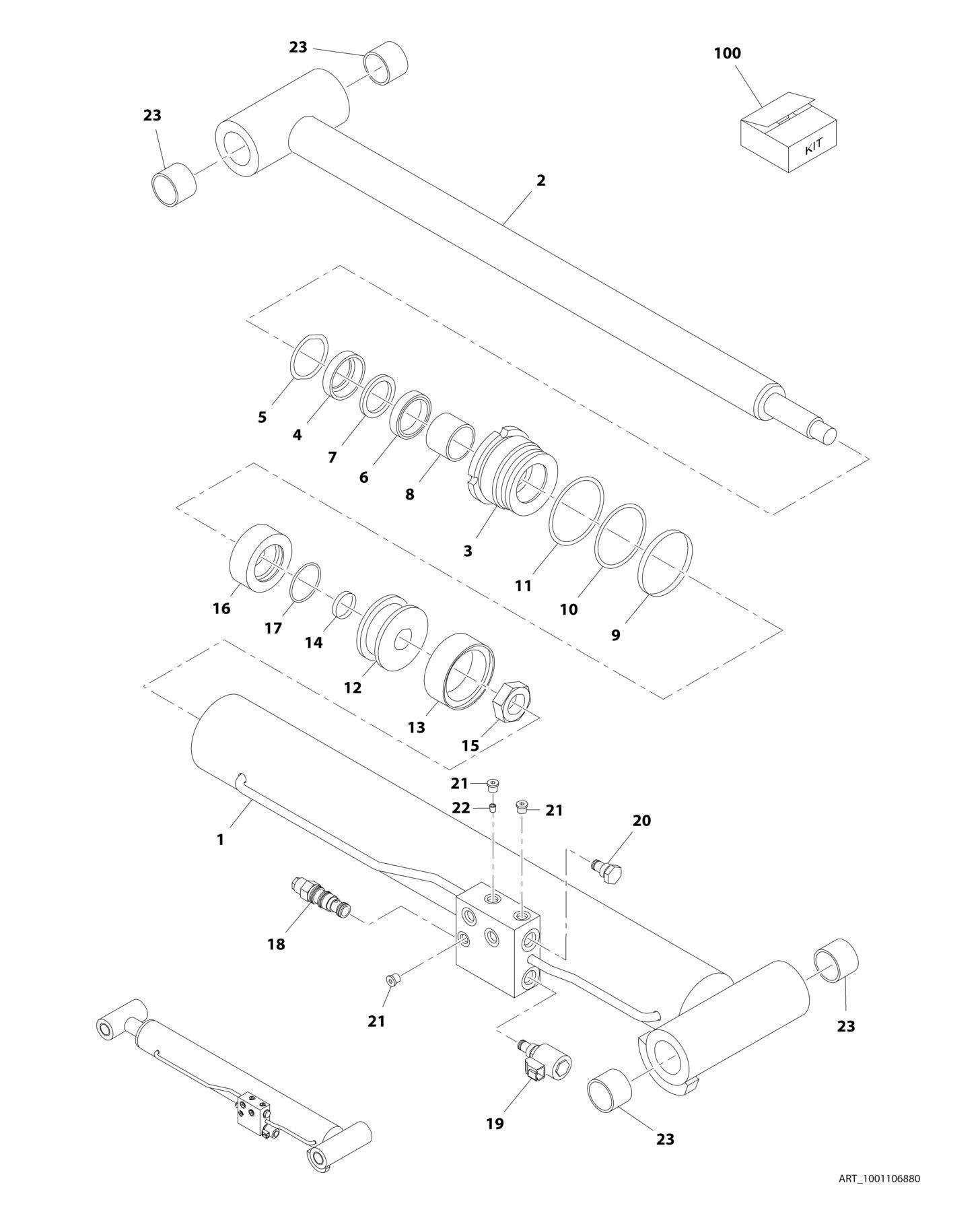

FIGURE 5 3. LIFT CYLINDER ASSEMBLY MAIN BOOM

FIGURE 5-3. LIFT CYLINDER ASSEMBLY - MAIN BOOM

FIGURE 5-3. LIFT CYLINDER ASSEMBLY - MAIN BOOM

ITEM PART NUMBER QTY

DESCRIPTION

1001106880 Ref LIFT CYLINDER ASSEMBLY - MAIN BOOM 1 70002349 1 Barrel Weldment 2 70002348 1 Rod Weldment 3 70002347 1 Head 4 See Note NSS Wiper (Note: Use Item 100) 5 70002412 1 Ring, Retaining 6 See Note NSS Seal, Rod (Note: Use Item 100) 7 See Note NSS Ring, Back-up (Note: Use Item 100) 8 70022593 1 Ring, Wear 9 See Note NSS O-Ring (Note: Use Item 100) 10 See Note NSS Ring, Back-up (Note: Use Item 100) 11 See Note NSS O-Ring (Note: Use Item 100) 12 70002346 1 Piston 13 See Note NSS Seal, Piston (Note: Use Item 100) 14 See Note NSS O-Ring (Note: Use Item 100) 15 70002345 1 Nut 15 0100071 AR Compound, Locking 16 70002344 1 Spacer 17 See Note NSS O-Ring (Note: Use Item 100) 18 70002387 1 Cartridge, Valve (Counterbalance) 18 2900770 1 Seal Kit - 70002387 Valve (1 Per Assembly) 19 7024884 1 Cartridge, Valve (2 Way Poppet) 19 7012967 1 Seal Kit - 7024884 Valve (1 Per Assembly) 19 70002386 1 Coil 20 7012955 1 Cartridge, Valve (Check) 20 7012967 1 Seal Kit - 7012955 Valve (1 Per Assembly) 21 See Note 3 Plug, O-Ring (Note: Not Available for Purchase) 22 70002343 1 Orifice 23 70002342 4 Bearing 100 70002341 1 Seal Kit (Includes Items 4, 6, 7, 9, 10, 11, 13, 14 & 17)

REV

E
