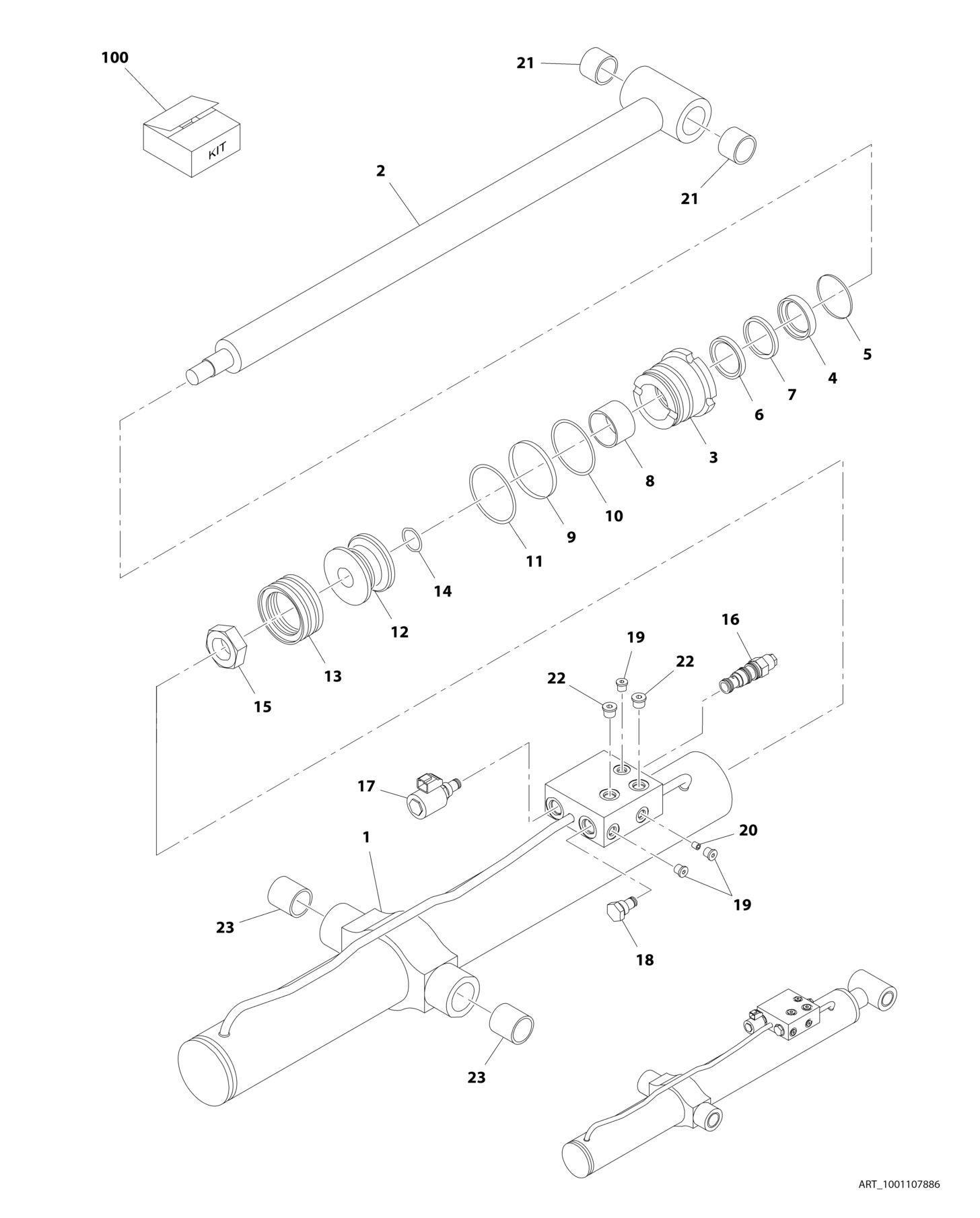

FIGURE 5 4. LIFT CYLINDER ASSEMBLY TOWER BOOM

FIGURE 5-4. LIFT CYLINDER ASSEMBLY - TOWER BOOM

FIGURE 5-4. LIFT CYLINDER ASSEMBLY - TOWER BOOM

ITEM PART NUMBER QTY

DESCRIPTION

1001107886 Ref LIFT CYLINDER ASSEMBLY - TOWER BOOM 1 70002340 1 Barrel Weldment 2 70002339 1 Rod Weldment 3 70002338 1 Head 4 See Note NSS Wiper (Note: Use Item 100) 5 70002410 1 Ring, Retaining 6 See Note NSS Seal, Rod (Note: Use Item 100) 7 See Note NSS Ring, Back-up (Note: Use Item 100) 8 70002337 1 Ring, Wear 9 See Note NSS O-Ring (Note: Use Item 100) 10 See Note NSS Ring, Back-up (Note: Use Item 100) 11 See Note NSS O-Ring (Note: Use Item 100) 12 70002336 1 Piston 13 See Note NSS Seal, Piston (Note: Use Item 100) 14 See Note NSS O-Ring (Note: Use Item 100) 15 70002335 1 Nut 15 0100071 AR Compound, Locking 16 70002387 1 Cartridge, Valve (Counterbalance) 16 2900770 1 Seal Kit - 70002387 Valve (1 Per Assembly) 17 7024884 1 Cartridge, Valve (2 Way Poppet) 17 7012967 1 Seal Kit - 7024884 Valve (1 Per Assembly) 17 70002386 1 Coil 18 7012955 1 Cartridge, Valve (Check) 18 7012967 1 Seal Kit - 7012955 Valve (1 Per Assembly) 19 See Note 3 Plug, O-Ring (Note: Not Available for Purchase) 20 70002334 1 Orifice 21 70002333 2 Bearing 22 See Note 2 Plug, O-Ring (Note: Not Available for Purchase) 23 70002409 2 Bearing 100 70002332 1 Seal Kit (Includes Items 4, 6, 7, 9, 10, 11, 13 & 14)

REV

D
