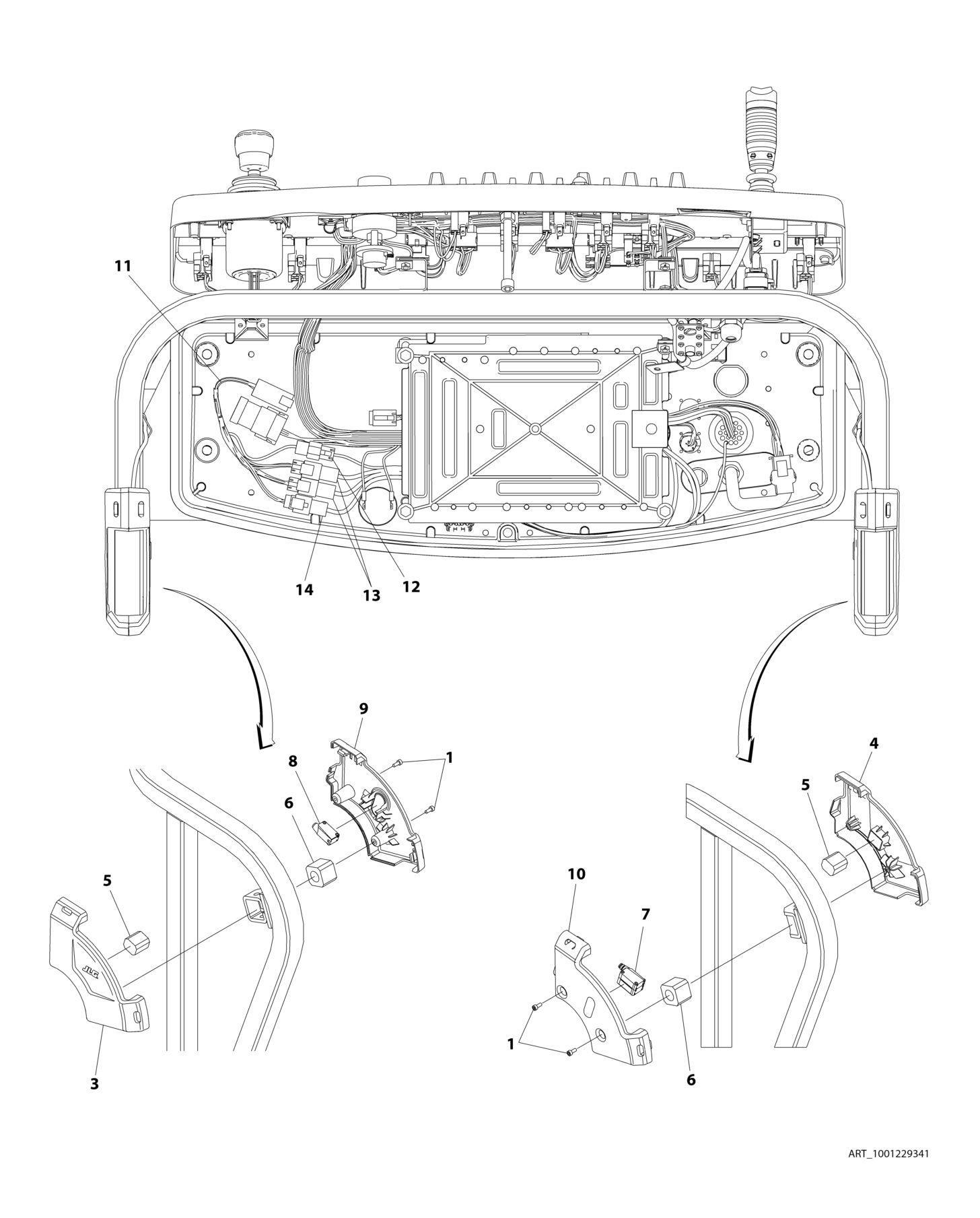

FIGURE 4 17. SKYEYE INSTALLATION

FIGURE 4-17. SKYEYE INSTALLATION

FIGURE 4-17. SKYEYE INSTALLATION

ITEM PART NUMBER QTY DESCRIPTION

1001229341 Ref SKYEYE INSTALLATION 1 4031505 4 Bolt M4 x 10 2 4240033 AR Tie-Strap (Not Shown) 3 1001227633 1 Housing, LH Outer 4 1001227634 1 Housing, RH Outer 5 1001227985 2 Shim 6 1001227987 2 Shim 7 1001228224 2 Sensor, Receiver 8 1001228225 1 Sensor, Emitter 9 1001232164 1 Housing, LH Inner 10 1001232165 1 Housing, RH Inner 11 1001237865 1 Harness, Skyeye Intermediate (See Separate Breakdown in ELECTRICAL SECTION) 12 1001238319 1 Harness, Skyeye Drain Jumper 12 1001187674 1 Plug, Male - 2 Position 12 4460942 1 Terminal 12 4460466 1 Plug, Terminal 12 4460508 1 Pin, Male 13 1001237863 2 Harness, Skyeye Receiver (See Separate Breakdown in ELECTRICAL SECTION) 14 1001237864 1 Harness, Skyeye Emitter (See Separate Breakdown in ELECTRICAL SECTION)

REV

A
