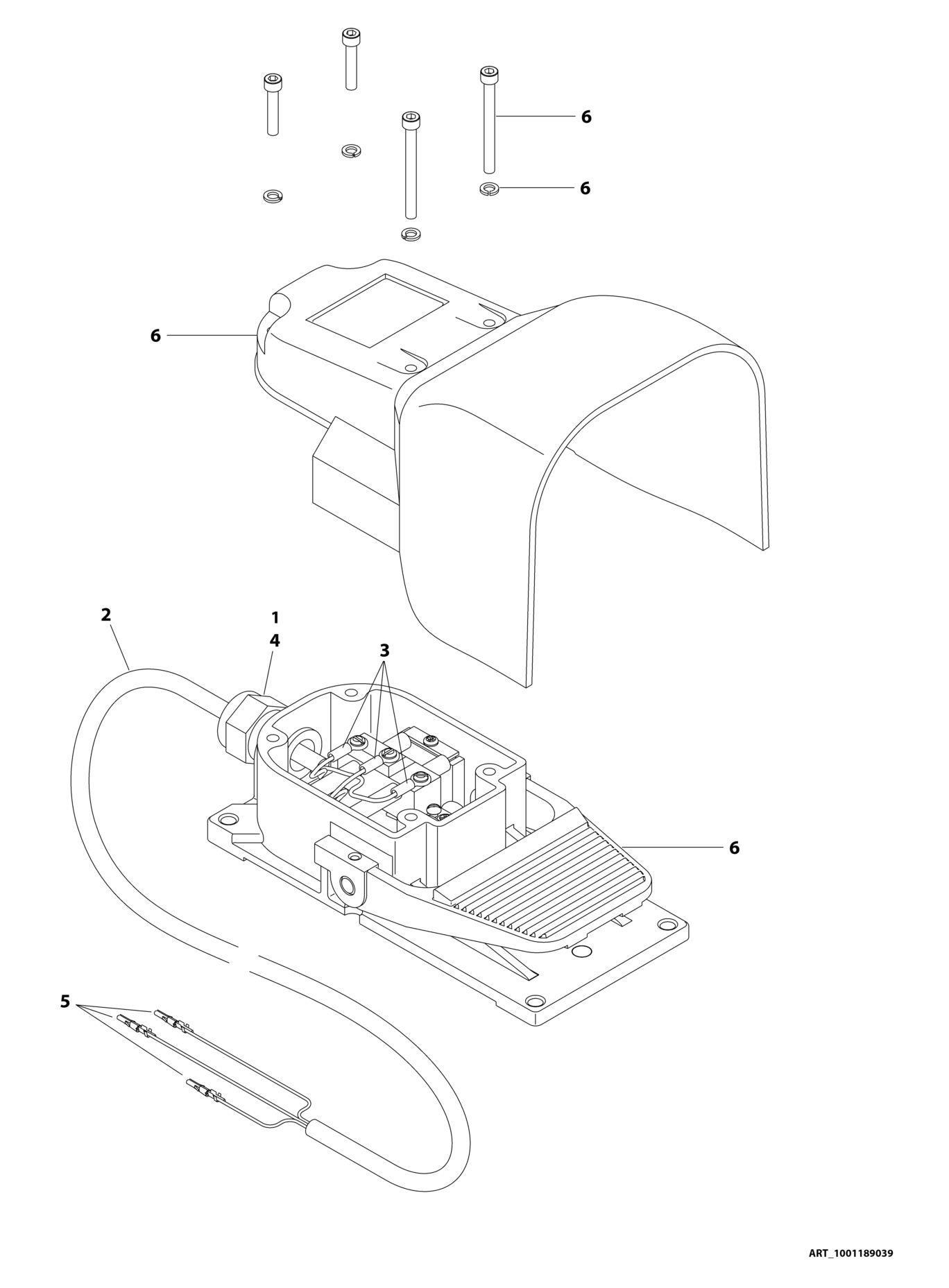

FIGURE 4 13. FOOTSWITCH ASSEMBLY
FIGURE 4-13. FOOTSWITCH ASSEMBLY
FIGURE 4-13. FOOTSWITCH ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001189039 Ref FOOTSWITCH ASSEMBLY 1 0100020 AR Sealant 2 1060330 6 ft /1.8m Cable, Electrical - 16/3 3 4460042 3 Terminal 4 4460071 1 Connector, Strain Relief 5 4460226 3 Socket, Female 6 1001117172 1 Footswitch 6 70002902 1 Switch, 20Amp 6 70002903 1 Gasket 6 70002905 1 Cover 6 70002904 1 Kit, Replacement Bolt
REV
A
