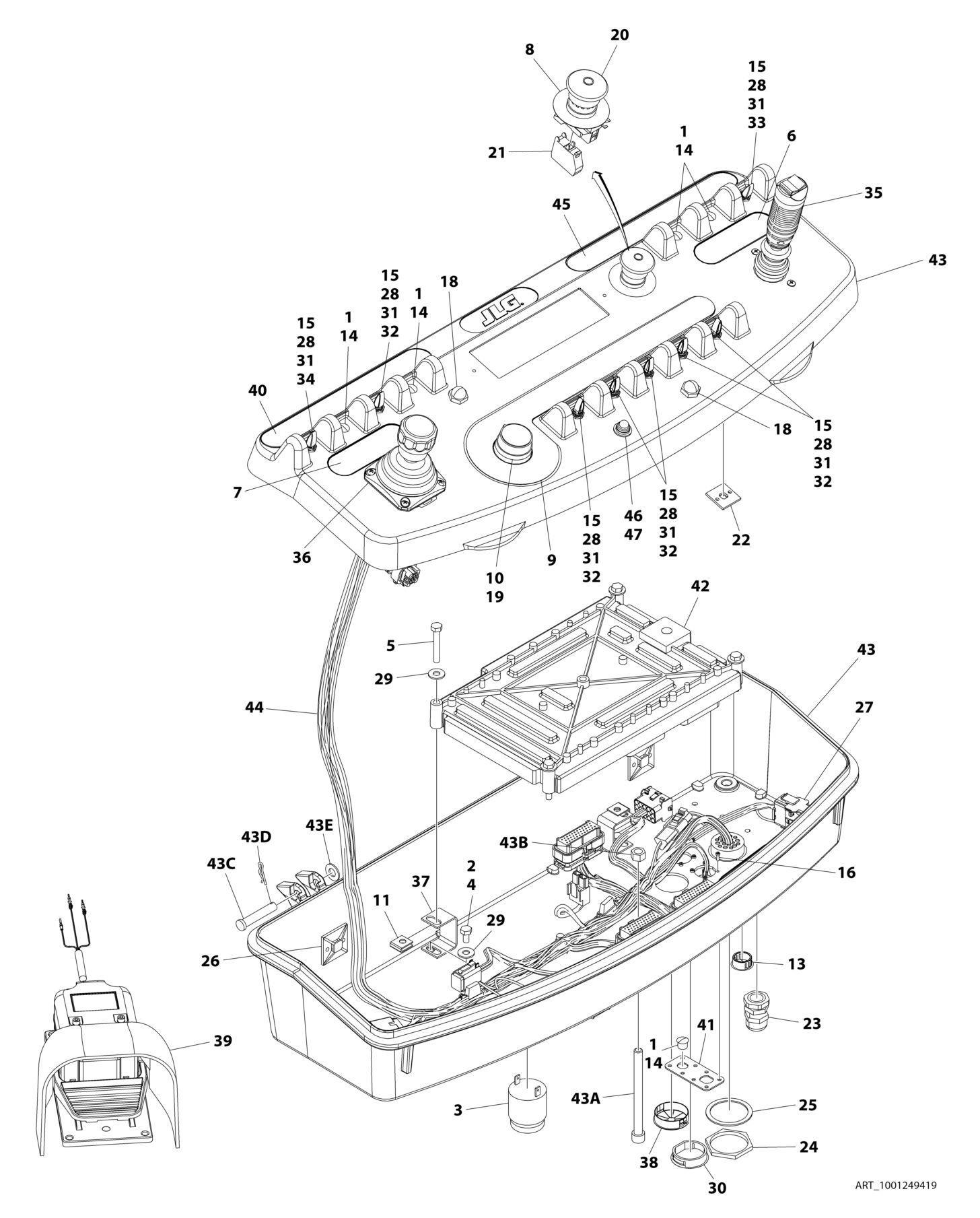

FIGURE 4 10. CONSOLE BOX ASSEMBLY E300AJP (UL SPECS
ITEM PART NUMBER QTY
DESCRIPTION
1001249419 Ref PLATFORM CONSOLE ASSEMBLY 1 0100009 AR Sealant 2 0100035 AR Compound, Locking 3 0140011 1 Alarm 4 0641404 4 Bolt 1/4 x 1/2 5 0641414 4 Bolt 1/4 x 1-3/4 6 1702565 1 Decal - Drive and Steer 7 1702566 1 Decal - Lift and Swing 8 1704260 1 Decal - Emergency Stop 9 1704422 1 Decal - Function Speed 10 2560136 1 Handle, Knob 11 3300353 4 Nut, Tinnerman 13 3520030 1 Plug, Hole 14 3520054 5 Plug, Hole 15 3790012 8 O-Ring 16 3900349 8 Capscrew M2.5 17 4240032 AR Tie-Strap (Not Shown) 18 4360387 2 Switch, Push Button 19 4360407 1 Switch, Potentiometer 19 70003784 1 Seal, O-Ring 19 4460224 1 Plug, Male - 6 Position 19 4460267 6 Pin, Male 20 4360475 1 Switch, Emergency Stop 20 7020175 1 Cap 20 7020176 1 Block, Contact 21 4360476 1 Block, Contact 22 4460234 4 Base, Mounting 23 4460428 1 Connector, Strain Relief 24 4460470 1 Nut 25 4460471 1 Washer 26 4460488 2 Base, Mounting 27 4460708 1 Connector 28 4740397 8 Spacer 29 4751400 8 Washer 1/4 30 1001110434 1 Plug 31 1001155044 8 Nut 15/32 32 1001155045 6 Switch, Toggle 33 1001159256 1 Switch, Toggle 34 1001161710 1 Switch, Toggle 35 1001166538 NLA Controller Assembly - Drive and Steer (Use p/n 1001212415) (See Separate Breakdown in this Section) 36 1001166539 NLA Controller Assembly - Lift and Swing (Use p/n 1001129555) (See Separate Breakdown in this Section ) 37 1001172760 4 Bracket, Module 38 1001185281 1 Plug 39 1001189039 1 Footswitch Assembly (See Separate Breakdown in this Section) 40 1001193987 1 Decal - Horn 41 1001213882 1 Mount 42 1001215835 1 Module, Platform (Note: Recalibration Required when Replaced.) 43 1001215228 1 Box, Console
REV
B
ITEM PART NUMBER QTY DESCRIPTION
43A 0630568 1 Capscrew 3/8 x 4-1/2 43B 3311601 1 Nut 3/8 43C 3430616 2 Pin 43D 3470003 2 Hair Pin 43E 4711600 2 Washer 3/8 44 1001245673 1 Platform Console Harness (See Separate Breakdown in ELECTRICAL SECTION) 45 1001247538 1 Decal - Stop/Generator 46 2920028 1 Light, Indicator 47 2920029 1 Bulb, Light
