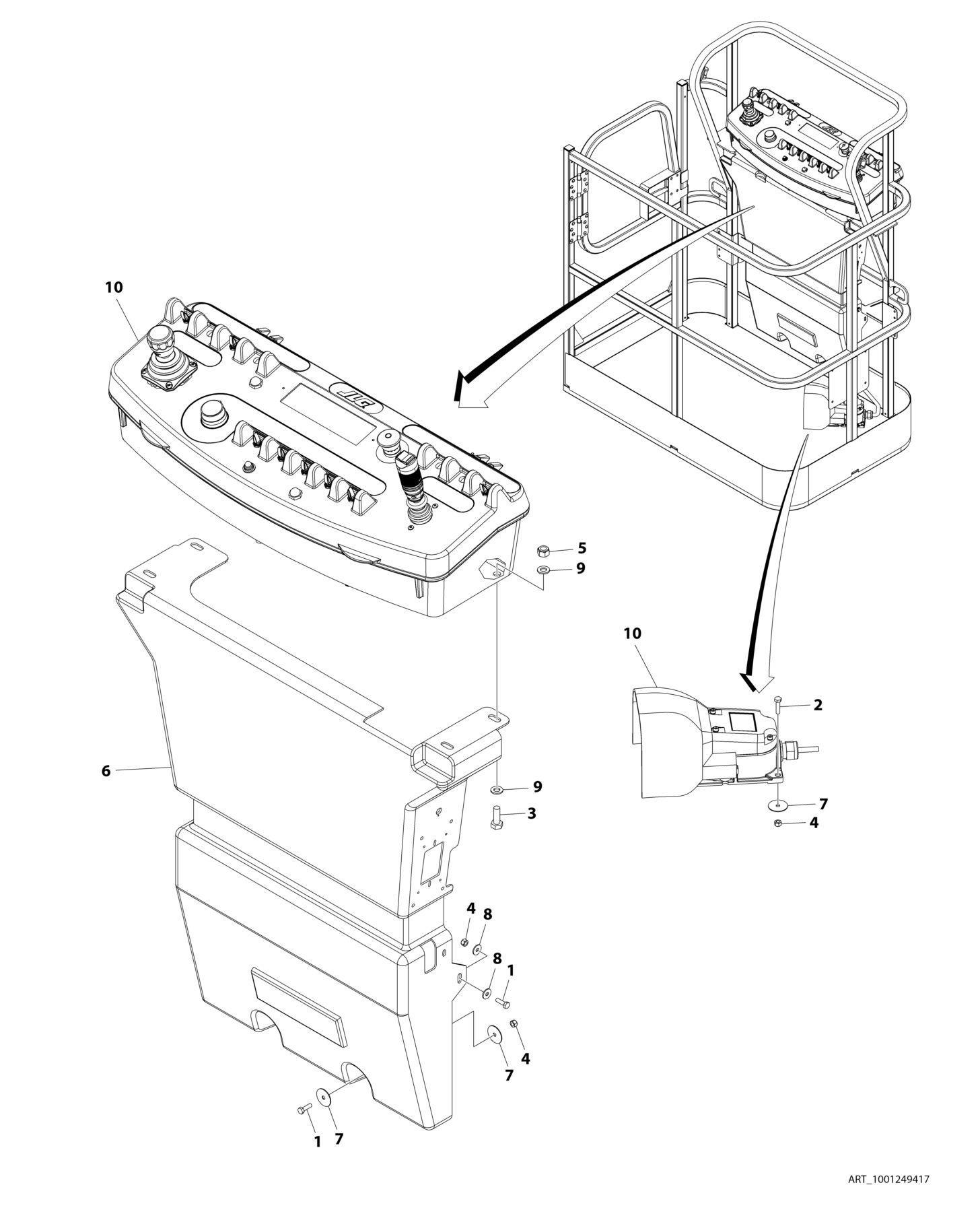

FIGURE 4 6. PLATFORM CONSOLE AND FOOTSWITCH INSTALLATION E300AJP (UL SPECS
ITEM PART NUMBER QTY DESCRIPTION REV
1001249417 Ref PLATFORM CONSOLE AND FOOTSWITCH INSTALLATION A 1 0641406 4 Bolt 1/4 x 3/4 2 0641408 3 Bolt 1/4 x 1 3 0641610 4 Bolt 3/8 x 1-1/4 4 3311405 7 Nut 1/4 5 3311605 4 Nut 3/8 6 3380434 1 Panel, Pedestal 7 4740362 7 Washer 1/4 8 4751400 4 Washer 1/4 9 4751600 8 Washer 3/8 10 1001249419 1 Platform Console Assembly (See Separate Breakdown in this Section)
