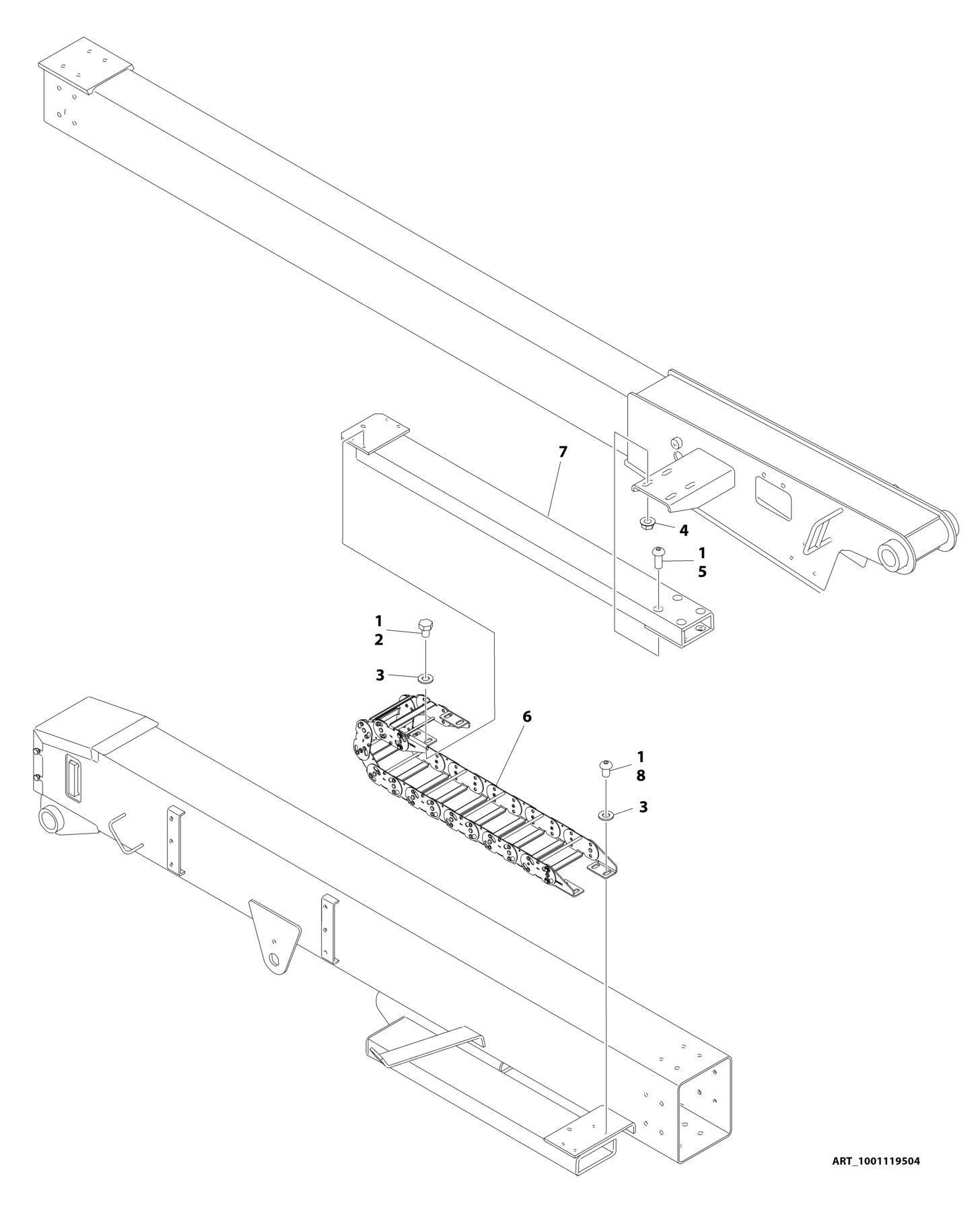

FIGURE 3 11. POWER TRACK INSTALLATION

FIGURE 3-11. POWER TRACK INSTALLATION

FIGURE 3-11. POWER TRACK INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001119504 Ref POWER TRACK INSTALLATION 1 0100011 AR Compound, Locking 2 0761007 4 Bolt M10 x 14 3 4812000 8 Washer M10 4 5221000 4 Nut M10 Grade 10.9 5 8310668 4 Screw M10 x 25 Grade 10.9 6 1001224891 1 Carrier, Power Track 6 70006269 1 Repair Kit (Includes 10 Link Section of Track) 6 70006280 1 Bracket Kit (Includes 4 Mounting Feet and Hardware to Attach to Track) 7 1001119513 1 Tube, Support 8 1001119527 4 Screw M10 x 16

REV

C
