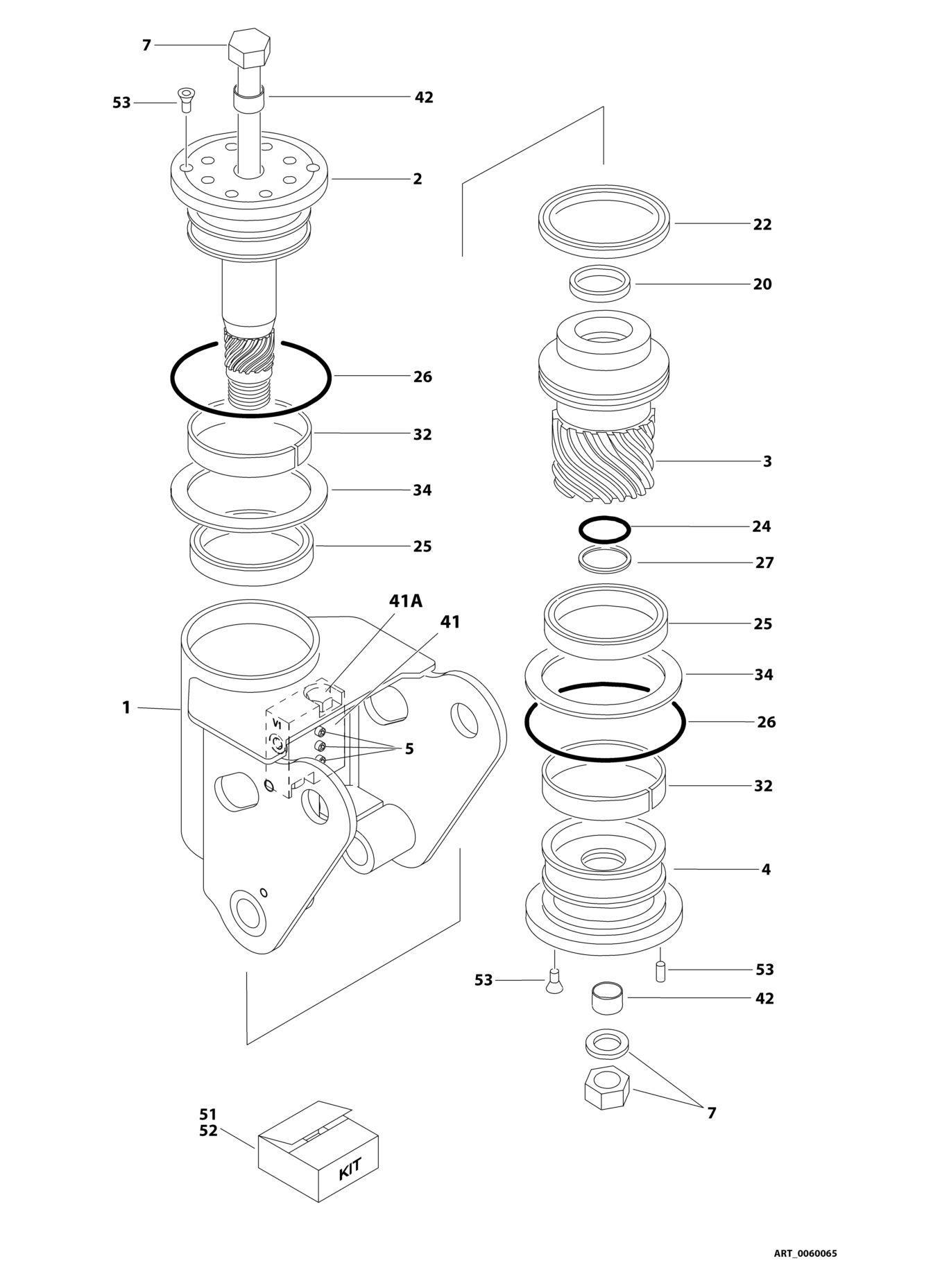

FIGURE 3 10. ROTATOR ASSEMBLY JIB SWING

FIGURE 3-10. ROTATOR ASSEMBLY - JIB SWING

FIGURE 3-10. ROTATOR ASSEMBLY - JIB SWING

ITEM PART NUMBER QTY

DESCRIPTION

0060065 Ref ROTATOR ASSEMBLY - MAIN BOOM TO JIB E400AJP/E400AJPN/M400AJP/M400AJPN 1 See Note 1 Case/Bracket Weldment (Note: Not Available - Purchase Complete Assembly) 2 7017167 1 Shaft 3 7017168 1 Piston Sleeve 4 7017169 1 Cap, End 5 See Note 3 Capscrew, 1/4-20, Grade 8 (Note: Not Available - Purchase Locally) 7 7017173 1 Tie Rod Assembly 20 See Note 1 Seal, Rod (Note: Use Item 52) 22 See Note 1 Seal, Piston (Note: Use Item 52) 24 See Note 1 Seal, Cap (Note: Use Item 52) 25 See Note 2 Packing, Bearing (Note: Use Item 52) 26 See Note 2 Seal (Note: Use Item 52) 27 See Note 1 Ring, Back-up (Note: Use Item 52) 32 See Note 2 Bearing, Shaft (Note: Use Item 51) 34 See Note 2 Washer, Thrust (Note: Use Item 51) 41 7017172 1 Counterbalance Valve Assembly 41A 7017192 2 Valve, Cartridge (No Seal Kit Available) 42 See Note 2 Bushing, Shaft (Note: Not Available for Purchase) 51 7017178 1 Bearing Kit (Includes Items 32-34) 52 7017165 1 Seal Kit - Standard (Includes Items 20, 22 & 24-27, 52 70000340 1 Seal Kit - Low Temperature (Includes Items 20,22 & 24-27) 53 7017179 1 Hardware Kit

REV

C
