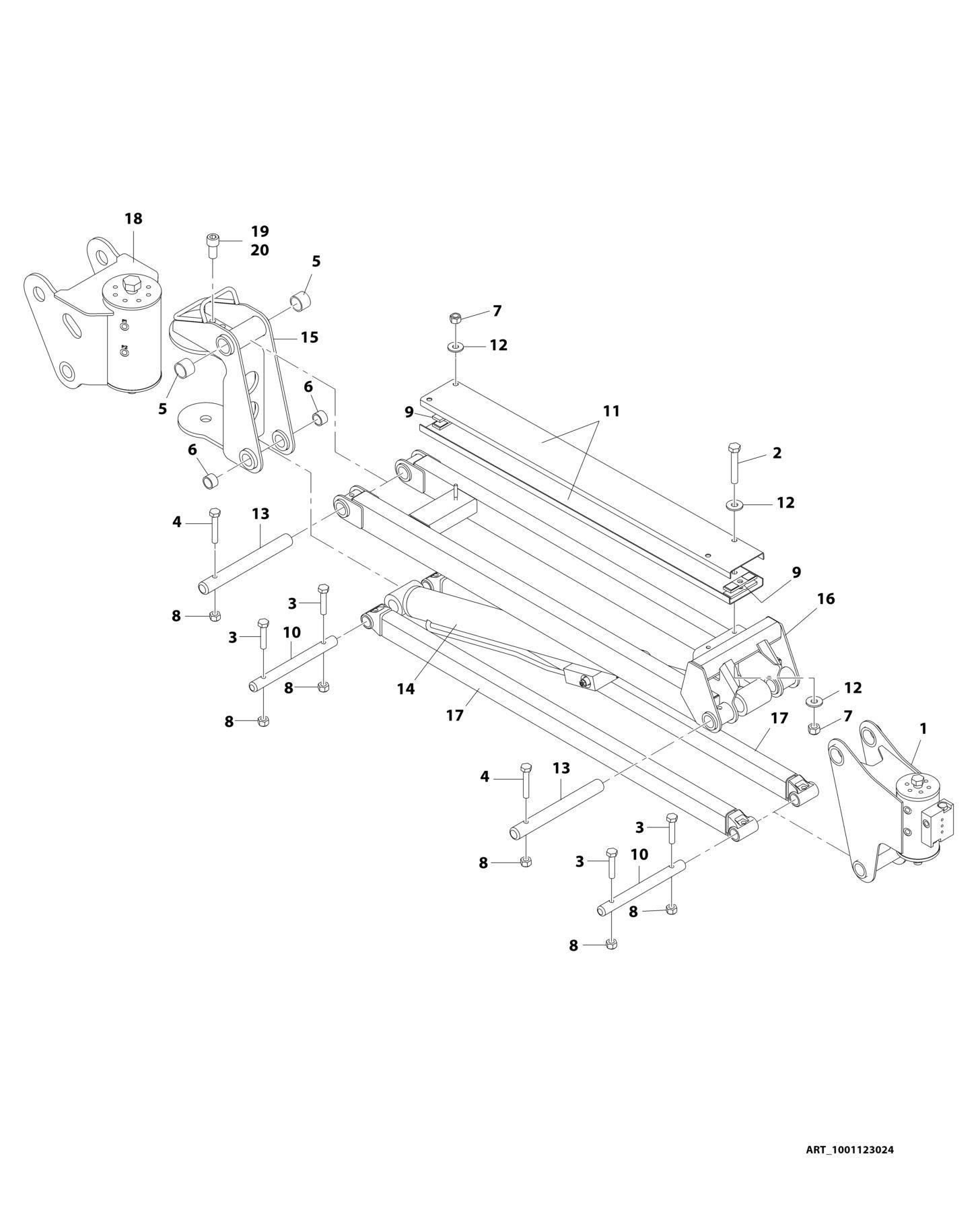

FIGURE 3 8. JIB ASSEMBLY E300AJP

FIGURE 3-8. JIB ASSEMBLY - E300AJP

FIGURE 3-8. JIB ASSEMBLY - E300AJP

ITEM PART NUMBER QTY

DESCRIPTION

1001123024 Ref JIB ASSEMBLY - E300AJP 1 0060044 1 Platform Rotator Assembly (See Separate Breakdown in this Section) 2 0700818 2 Bolt M8 x 50 3 0701018 4 Bolt M10 x 50 4 0701020 2 Bolt M10 x 60 5 0961951 2 Bushing 6 0962292 2 Bushing 7 3290805 4 Nut M8 8 3291005 6 Nut M10 9 3340860 4 Pad, Rubber 10 3422791 2 Pin 11 3572551 2 Channel, Hose Carrier 12 4811902 6 Washer M8 13 1001116550 2 Pin 14 1001108429 1 Lift Cylinder Assembly - Jib (See Separate Breakdown in CYLINDER SECTION) 15 4846502 1 Support 16 1001118482 1 Link, Jib (Top) 17 1001118516 NLA Link, Jib (Bottom) (Use p/n 1001094670) 17 1001094670 2 Link, Jib (Bottom) 18 0060065 1 Jib Swing Rotator Assembly (See Separate Breakdown in this Section) 19 3931816 1 Capscrew 1/2 x 1 20 0100011 AR Compound, Locking

REV

B
