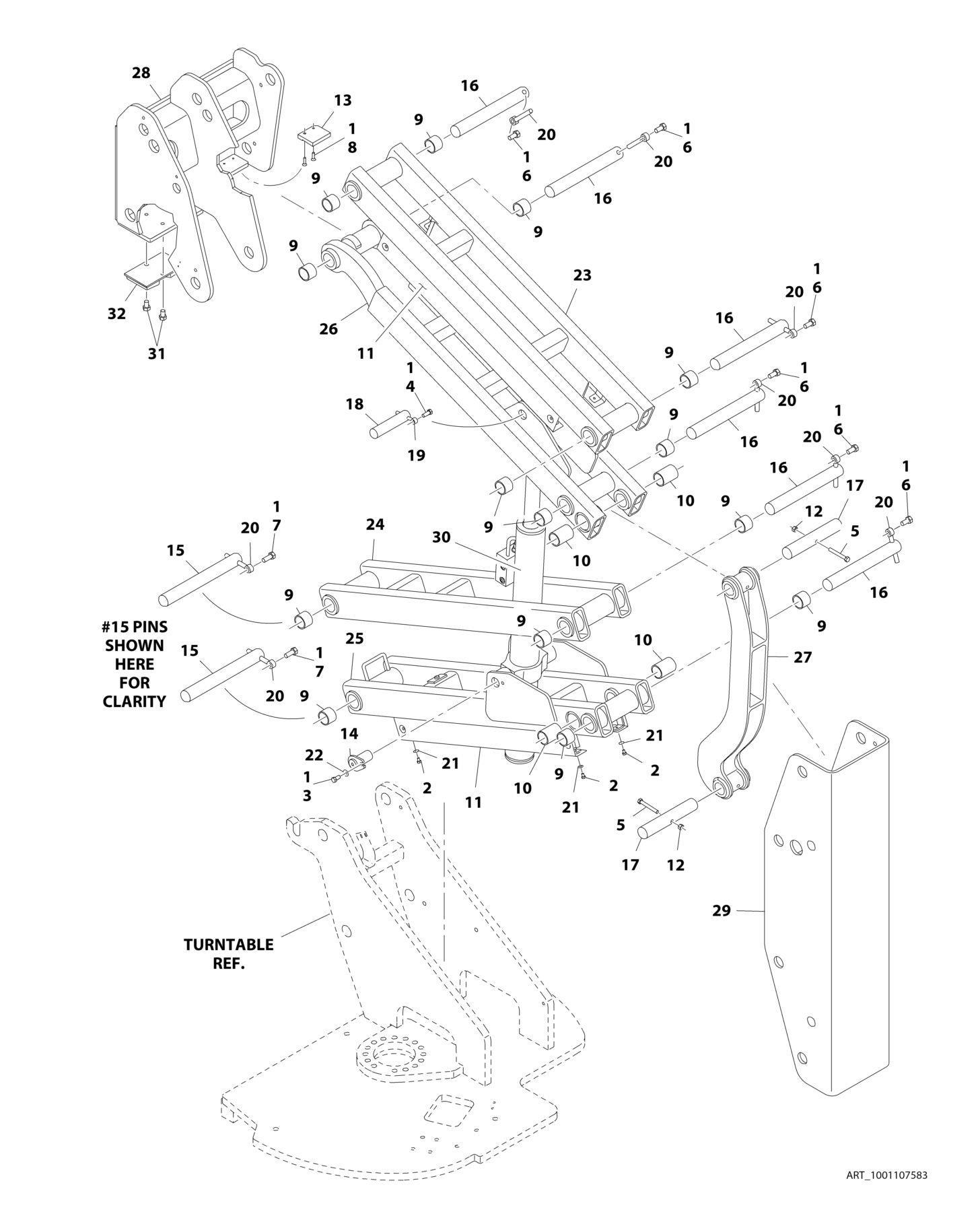

FIGURE 3 6. TOWER BOOM ASSEMBLY E300AJP

FIGURE 3-6. TOWER BOOM ASSEMBLY - E300AJP

FIGURE 3-6. TOWER BOOM ASSEMBLY - E300AJP

ITEM PART NUMBER QTY

DESCRIPTION

1001107583 Ref TOWER BOOM ASSEMBLY - E300AJP 1 0100011 AR Compound, Locking 2 0641403 12 Bolt 1/4 x 3/8 3 0641606 2 Bolt 3/8 x 3/4 4 0641608 1 Bolt 3/8 x 1 5 0641622 2 Bolt 3/8 x 2-3/4 6 0641808 6 Bolt 1/2 x 1 7 0641810 2 Bolt 1/2 x 1-1/4 8 0741408 2 Screw 1/4 x 1 9 0961948 16 Bearing 10 0962259 4 Bearing 11 1271433 4 Channel, Boom Cable/Hose 12 3311605 2 Nut 3/8 13 3340865 1 Pad, Wear 14 3422424 2 Pin 15 3422785 2 Pin 16 3422786 6 Pin 17 3422788 2 Pin 18 3422789 1 Pin 19 3841143 1 Keeper, Pin 20 3841203 8 Keeper, Pin 21 4711400 12 Washer 1/4 22 4711600 2 Washer 3/8 23 4845940 1 Link, Mid Boom (Top) 24 4845942 1 Link, Lower Boom (Top) 25 4845943 1 Link, Lower Boom (Bottom) 26 4846083 1 Link, Mid Boom (Bottom) 27 1001097487 1 Link, Timing 28 1001107217 1 Upright (Top) 29 1001107567 1 Upright (Bottom) 30 1001107886 1 Lift Cylinder Assembly - Tower Boom (See Separate breakdown in CYLINDER SECTION) 31 0641806 2 Bolt 1/2 x 3/4 32 0940048 1 Bumper

REV

B
