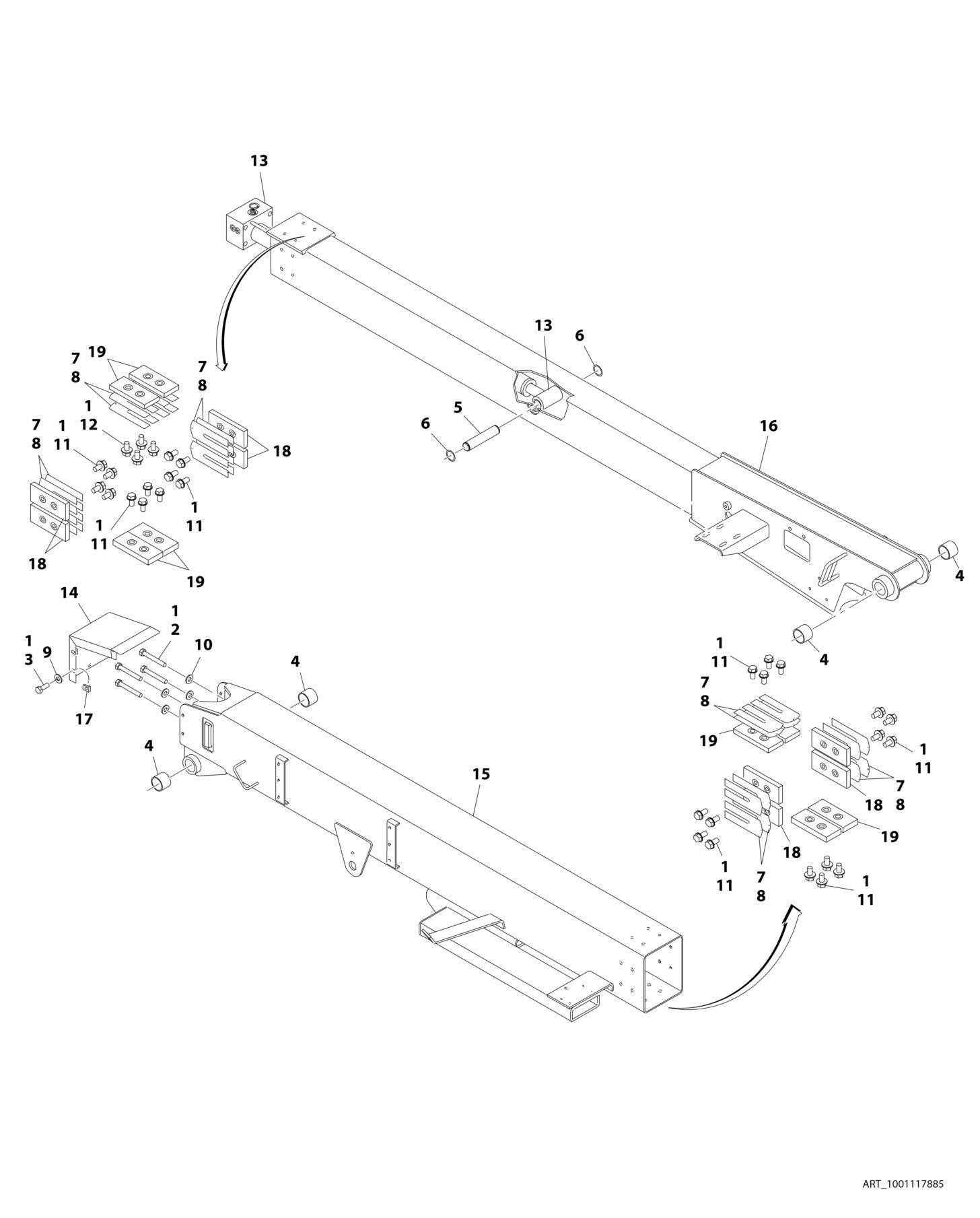

FIGURE 3 3. MAIN BOOM ASSEMBLY E300AJ

FIGURE 3-3. MAIN BOOM ASSEMBLY - E300AJ

FIGURE 3-3. MAIN BOOM ASSEMBLY - E300AJ

ITEM PART NUMBER QTY DESCRIPTION

1001117885 Ref MAIN BOOM ASSEMBLY 1 0100011 AR Compound, Locking 2 0711227 4 Bolt M12 x 100 Grade 10.9 3 0760812 4 Bolt M8 x 25 4 0961948 4 Bushing 5 3422745 1 Pin 6 3760115 2 Ring, Retaining 7 4070897 16 Shim 18Ga 8 4070898 12 Shim 11Ga 9 4811902 4 Washer M8 10 5241200 4 Washer M12 11 5251010 28 Bolt M10 x 20 12 5251012 4 Bolt M10 x 25 13 1001120974 1 Telescope Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 14 1001108290 1 Cover, Boom End 15 1001116876 1 Boom, Base 16 1001116877 1 Boom, Fly 17 1001118274 4 Nut, Retainer M8 18 1001118287 8 Pad, Wear 19 1001118288 8 Pad, Wear

REV

C
