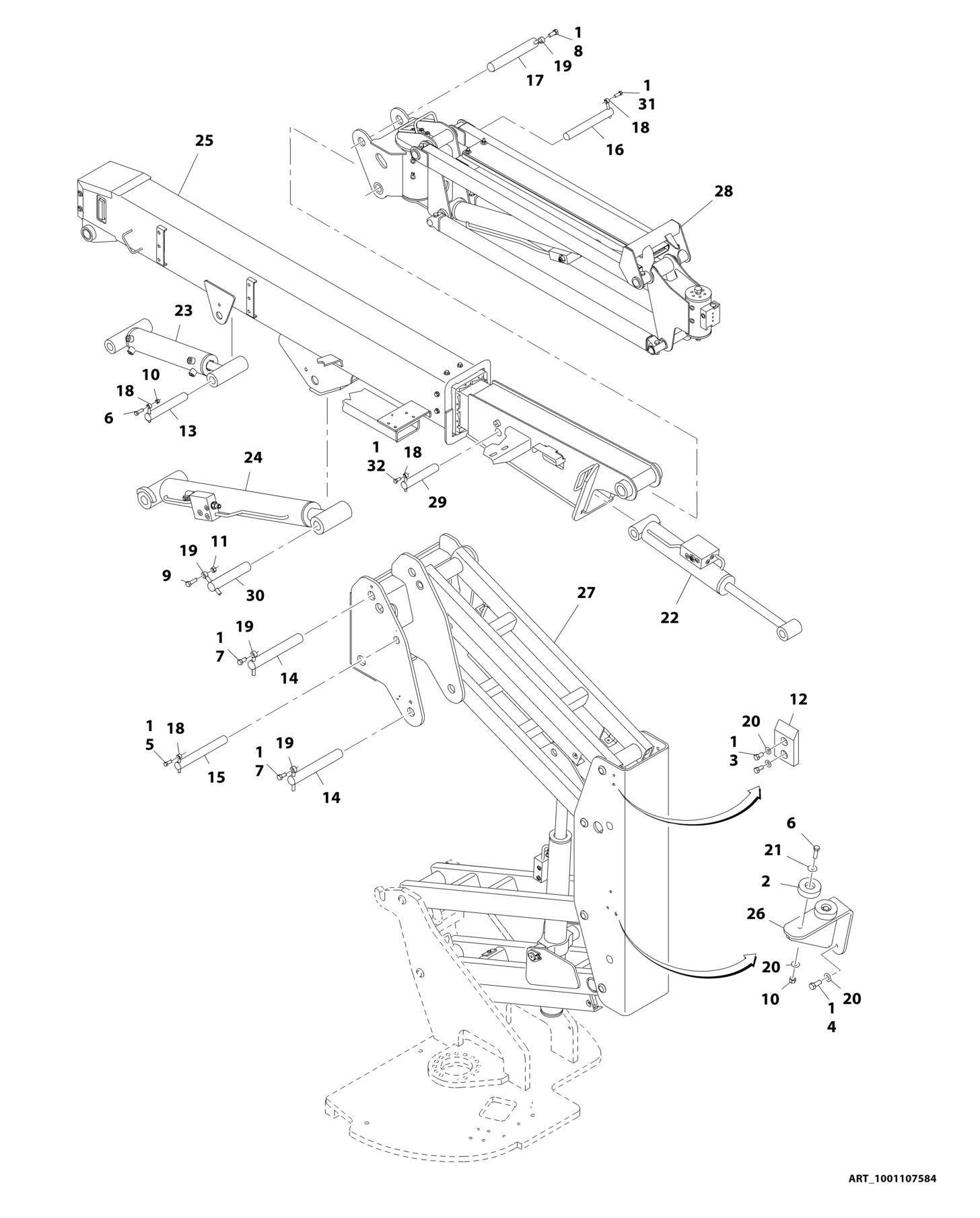

FIGURE 3 2. BOOM AND CYLINDERS INSTALLATION E300AJP
ITEM PART NUMBER QTY
DESCRIPTION
1001107584 Ref BOOM AND CYLINDERS INSTALLATION - E300AJP 1 0100011 AR Compound, Locking 2 1001112607 2 Block, Boom Rest 3 0641606 2 Bolt 3/8 x 3/4 4 0641607 3 Bolt 3/8 x 7/8 5 0641608 1 Bolt 3/8 x 1 6 0641610 3 Bolt 3/8 x 1-1/4 7 0641808 2 Bolt 1/2 x 1 8 0761215 1 Bolt M12 x 35 9 0641812 1 Bolt 1/2 x 1-1/2 10 3311605 3 Nut 3/8 11 3311805 1 Nut 1/2 12 3340854 1 Pad, Boom Guide 13 3422582 1 Pin 14 3422787 2 Pin 15 3422790 1 Pin 16 3422792 1 Pin 17 3422814 1 Pin 18 3841143 4 Keeper, Pin 19 3841203 4 Keeper, Pin 20 4711600 7 Washer 3/8 21 4751600 2 Washer 3/8 22 1001203949 1 Level Cylinder Assembly - Platform Slave (See Separate Breakdown in CYLINDER SECTION) 23 1001105989 1 Master Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 24 1001106880 1 Lift Cylinder Assembly - Main Boom (See Separate Breakdown in CYLINDER SECTION) 25 1001123023 NLA Main Boom Assembly (Use p/n 1001125316) (See Separate Breakdown in this Section) 26 1001125235 1 Plate, Boom Rest 27 1001107583 1 Tower Boom Assembly (See Separate Breakdown in this Section) 28 1001123024 1 Jib Assembly (See Separate Breakdown in this Section) 29 3422709 1 Pin 30 1001109528 1 Pin 31 0761014 1 Bolt M10 x 30 32 0761011 1 Bolt M10 x 22
REV
D
