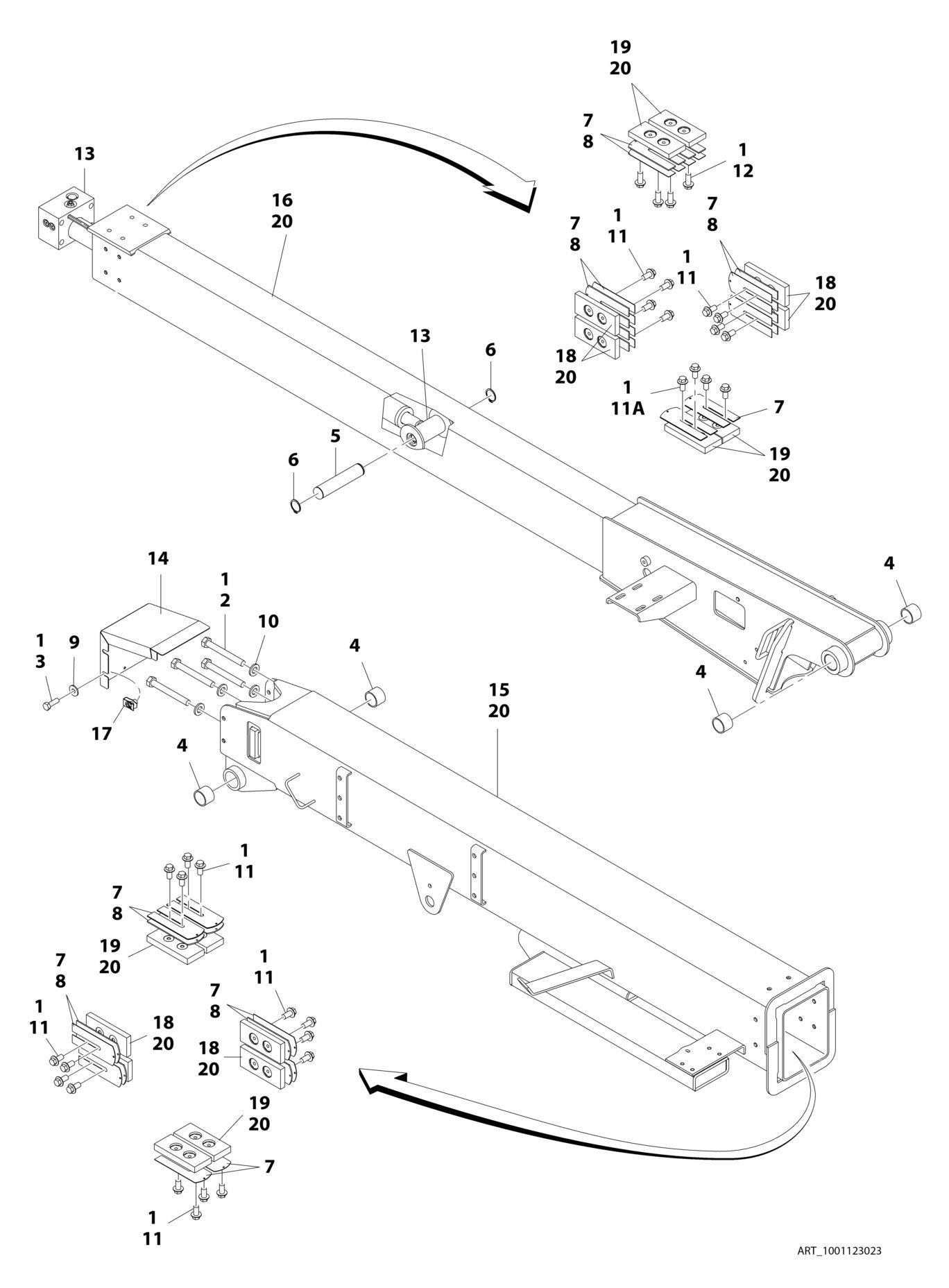

FIGURE 3 4. MAIN BOOM ASSEMBLY E300AJP
FIGURE 3-4. MAIN BOOM ASSEMBLY - E300AJP
FIGURE 3-4. MAIN BOOM ASSEMBLY - E300AJP
ITEM PART NUMBER QTY
DESCRIPTION
1001123023 Ref MAIN BOOM ASSEMBLY - E300AJP 1 0100011 AR Compound, Locking 2 0711227 4 Bolt M12 x 100 Grade 10.9 3 0760812 4 Bolt M8 x 25 4 0961948 4 Bushing 5 3422745 1 Pin 6 3760115 2 Ring, Retaining 7 4070897 16 Shim 18 Ga 8 4070898 12 Shim 11 Ga 9 4811902 4 Washer M8 10 5241200 4 Washer M8 11 5251010 24 Bolt M10 x 20 11A 5251012 4 Bolt M10 x 25 12 5251012 4 Bolt M10 x 25 13 1001106879 1 Telescope Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 14 1001108290 1 Cover 15 1001123026 NLA Boom, Base (Use p/n 1001125319) 16 1001123027 NLA Boom, Fly (Use p/n 1001125320) 17 1001118274 4 Nut 18 1001123044 8 Pad 19 1001123045 8 Pad 20 3020022 AR Grease, White Lithium
REV
B
