FIGURE 2 26. STROBE LIGHT INSTALLATION RED

from JLG E300AJ E300AJP PVC 2001 Parts Manual (31215002)_english

FIGURE 10 1. SPECIAL OPTIONS

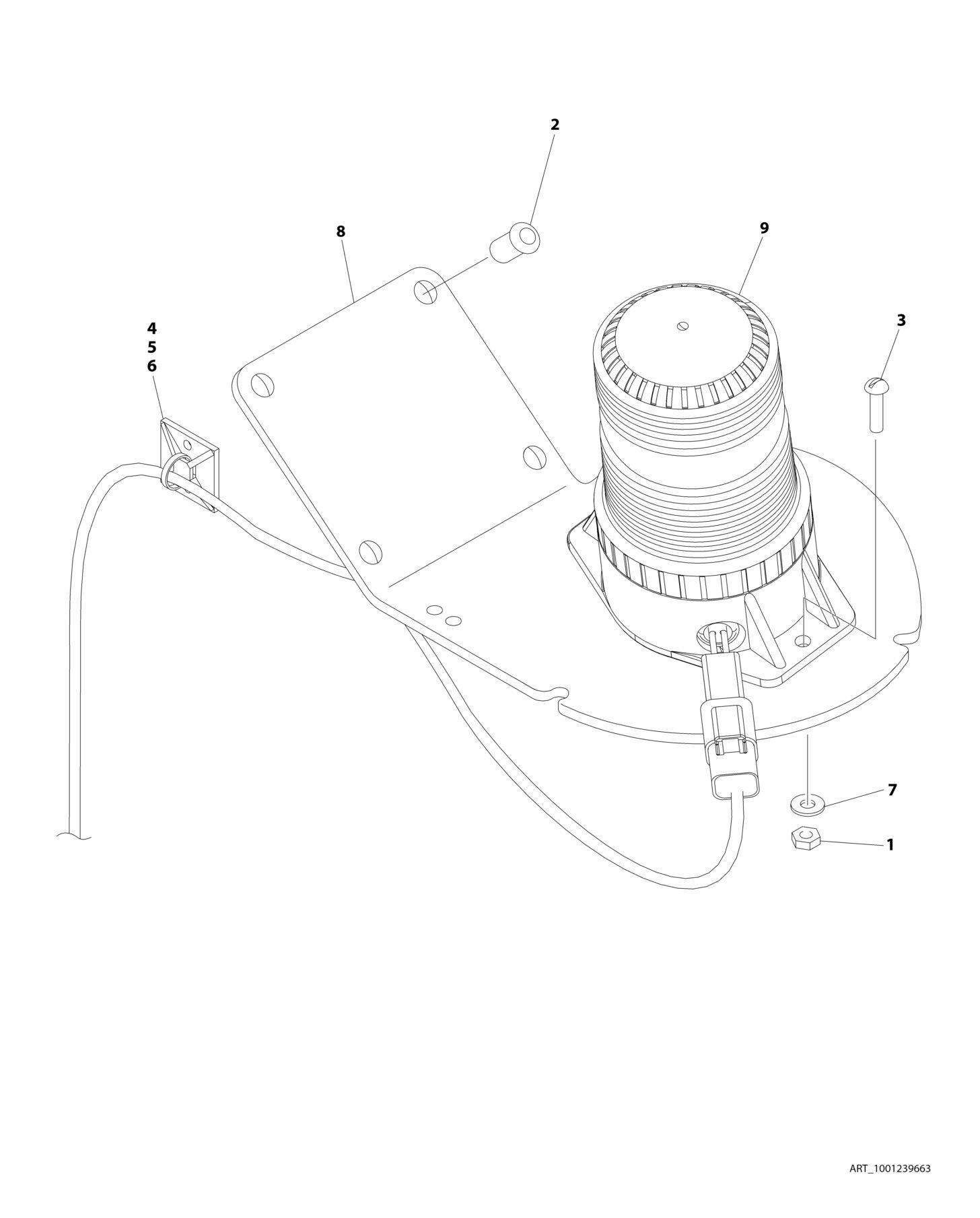

FIGURE 2-26. STROBE LIGHT INSTALLATION - RED

ITEM PART NUMBER QTY

DESCRIPTION

1001239663 Ref STROBE LIGHT INSTALLATION - RED 1 3311005 2 Nut #10 2 3820020 4 Rivet 3 3911012 2 Screw #10 x 3/4 4 4240032 5 Tie-Strap 5 4240033 AR Tie-Strap 6 4460234 5 Mount, Cable 7 4711000 4 Washer #10 8 1001197583 1 Bracket 9 1001207004 1 Strobe Light Assembly - Red 9 4460897 1 Receptacle, Female - 2 Position 9 4460464 2 Pin, Male

FIGURE 2 26. STROBE LIGHT INSTALLATION RED

Next Article

FIGURE 10 1. SPECIAL OPTIONS

FIGURE 2-26. STROBE LIGHT INSTALLATION - RED

FIGURE 2-26. STROBE LIGHT INSTALLATION - RED

ITEM PART NUMBER QTY

DESCRIPTION

REV
