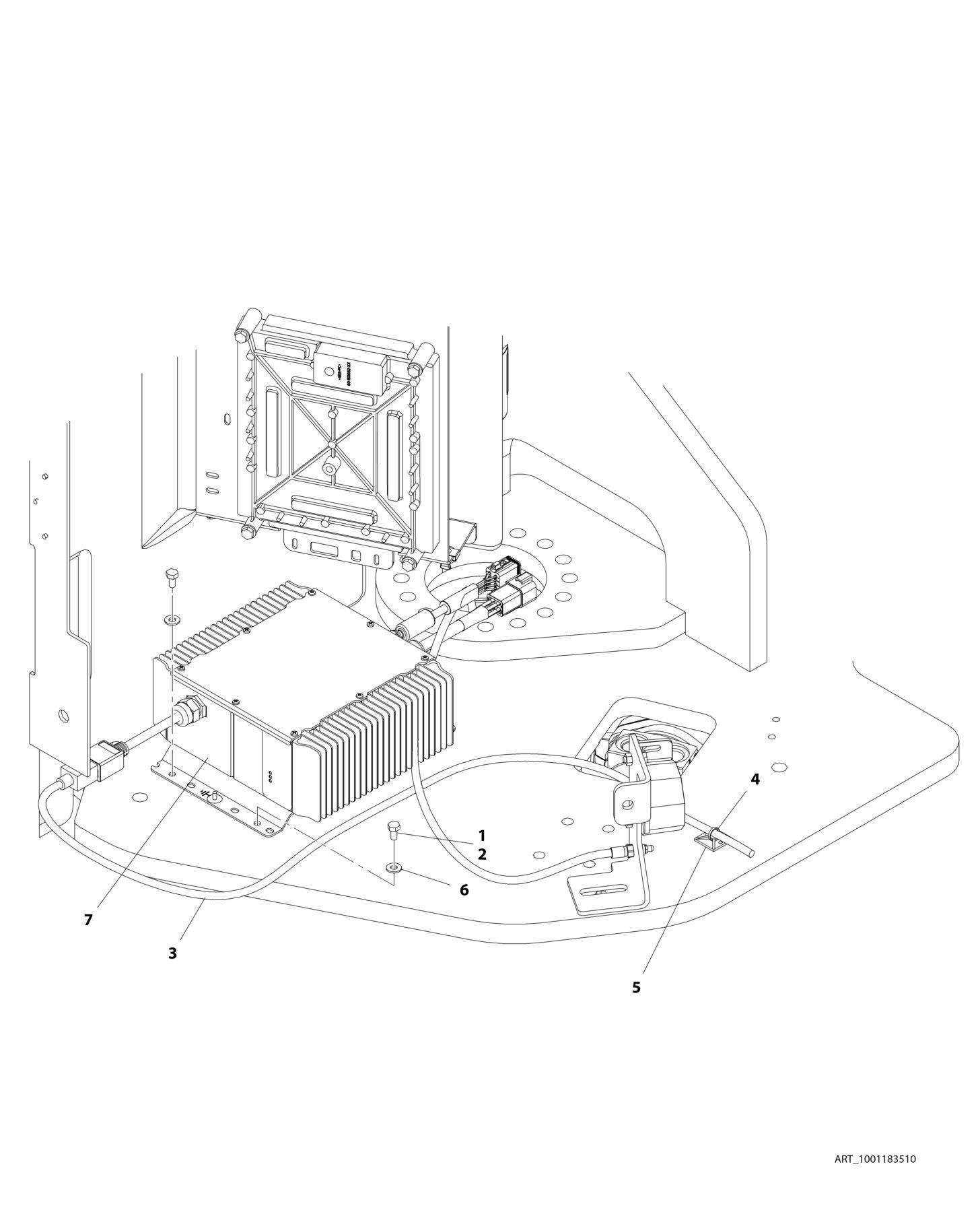

FIGURE 2 22. BATTERY CHARGER INSTALLATION WITHOUT PLUG

FIGURE 2-22. BATTERY CHARGER INSTALLATION - WITHOUT PLUG

FIGURE 2-22. BATTERY CHARGER INSTALLATION - WITHOUT PLUG

ITEM PART NUMBER QTY

DESCRIPTION

1001183510 Ref BATTERY CHARGER INSTALLATION - WITHOUT PLUG 1 0100011 AR Compound, Locking 2 0641404 4 Bolt 1/4 x 1/2 3 1060689 1 Cable, AC Cord 4 4240032 AR Tie-Strap 5 4460234 1 Mount, Cable 6 4711400 4 Washer 1/4 7 1001103105 1 Battery Charger Assembly (See Separate Breakdown in this Section)

REV

C
