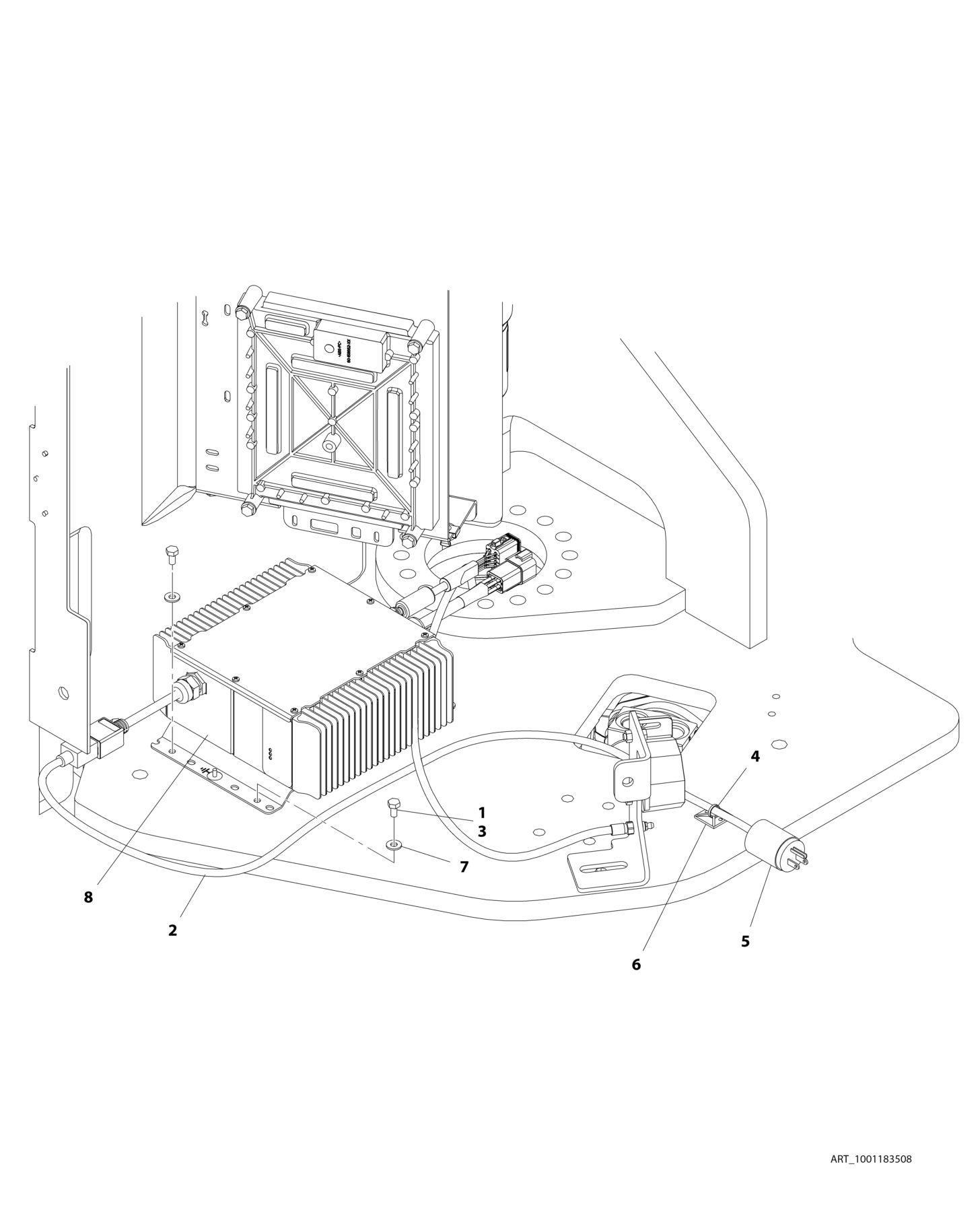

FIGURE 2 20. BATTERY CHARGER INSTALLATION WITH PLUG (ALL SPECS EXCEPT CE SPECS

FIGURE 2-20. BATTERY CHARGER INSTALLATION - WITH PLUG (ALL SPECS EXCEPT CE SPECS)

FIGURE 2-20. BATTERY CHARGER INSTALLATION - WITH PLUG (ALL SPECS EXCEPT CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001183508 Ref BATTERY CHARGER INSTALLATION - WITH PLUG (ALL SPECS EXCEPT CE SPEC) 1 0100011 AR Compound, Locking 2 1060689 1 Cable, AC Cord 3 0641404 4 Bolt 1/4 x 1/2 4 4240032 AR Tie-Strap 5 4460138 1 Plug 6 4460234 1 Mount, Cable 7 4711400 4 Washer 1/4 8 1001103105 1 Battery Charger Assembly (See Separate Breakdown in this Section)

REV

D
