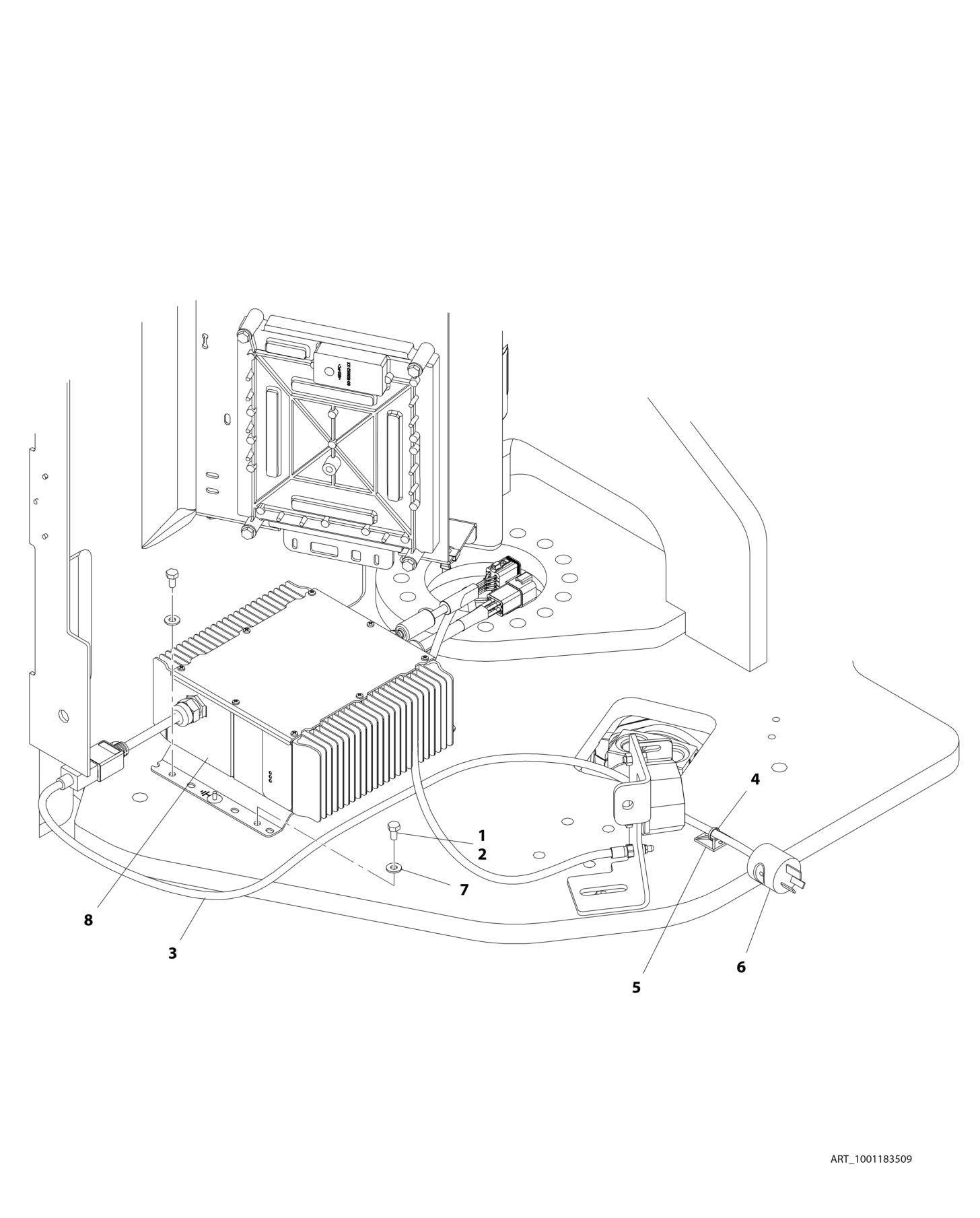

FIGURE 2 21. BATTERY CHARGER INSTALLATION WITH PLUG (CE SPECS
ITEM PART NUMBER QTY DESCRIPTION REV
1001183509 Ref BATTERY CHARGER INSTALLATION - WITH PLUG (CE SPEC) D 1 0100011 AR Compound, Locking 2 0641404 4 Bolt 1/4 x 1/2 3 1060689 1 Cable, AC Cord 4 4240032 AR Tie-Strap 5 4460234 1 Mount, Cable 6 4460805 1 Plug 7 4711400 4 Washer 1/4 8 1001103105 1 Battery Charger Assembly (See Separate Breakdown in this Section)
