FIGURE 2 18. GROUND CONTROL BOX ASSEMBLY E300AJP (ALL SPECS EXCEPT CE SPECS

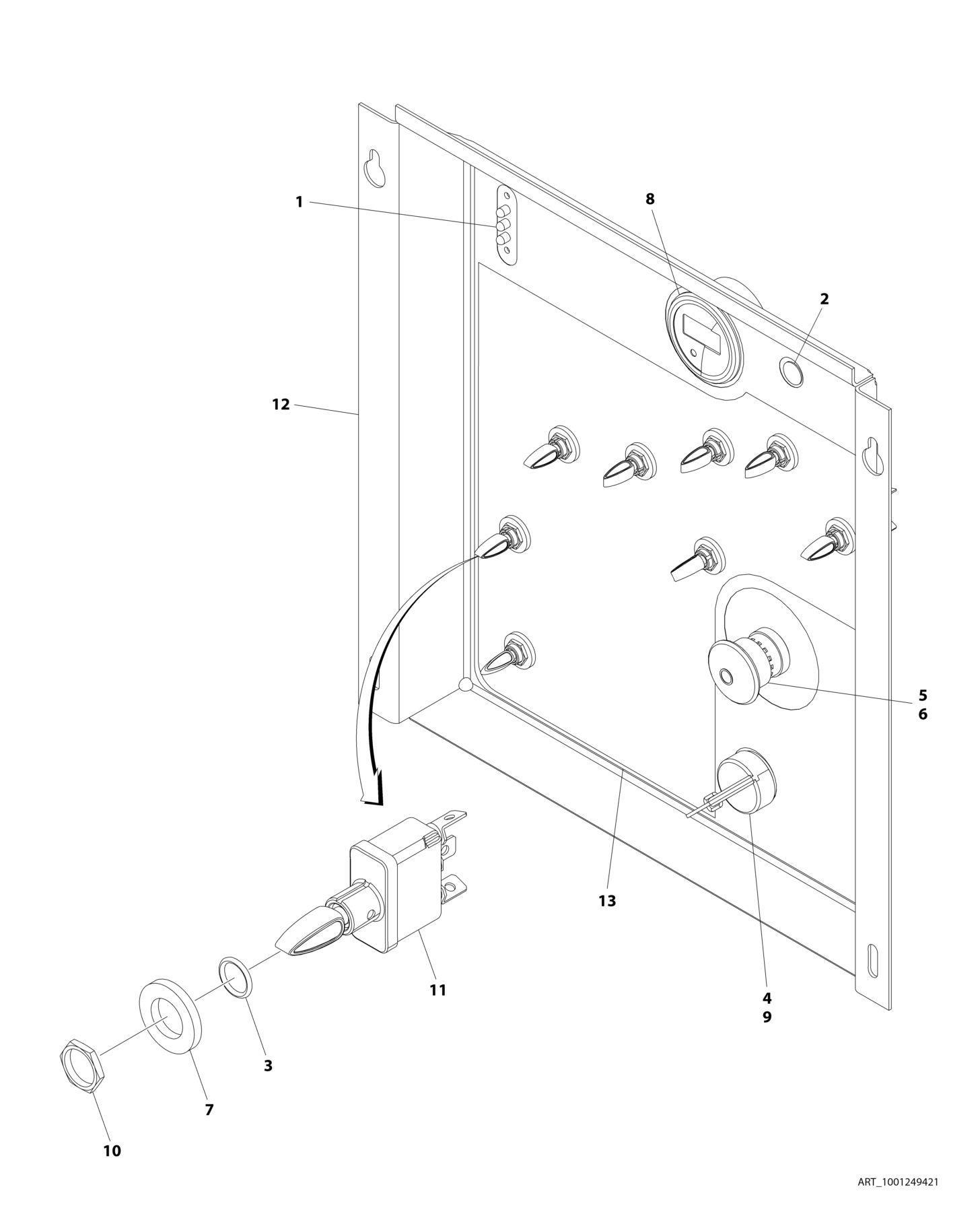

FIGURE 2-18. GROUND CONTROL BOX ASSEMBLY - E300AJP (ALL SPECS EXCEPT CE SPECS)

FIGURE 2-18. GROUND CONTROL BOX ASSEMBLY - E300AJP (ALL SPECS EXCEPT CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001249421 Ref GROUND CONTROL BOX ASSEMBLY 1 0610131 1 Board, LED 2 3520028 1 Plug 3 3790012 8 O-Ring 4 4360469 1 Switch, Key 4 2860030 1 Set Key, Replacement 5 4360475 1 Switch, Emergency Stop 5 7020175 1 Cap 5 7020176 1 Block, Contact 6 4360476 1 Switch, Contact 7 4740397 8 Spacer, Washer 8 1001109503 1 Gauge 9 1001151393 1 Shim, Nylon .063 10 1001155044 8 Nut 15/32 11 1001155045 8 Switch, Toggle 12 1001181633 1 Panel, Ground Control 13 1001221449 1 Decal - E300AJP Ground Control

REV

A
