FIGURE 2 24. STROBE LIGHT INSTALLATION AMBER

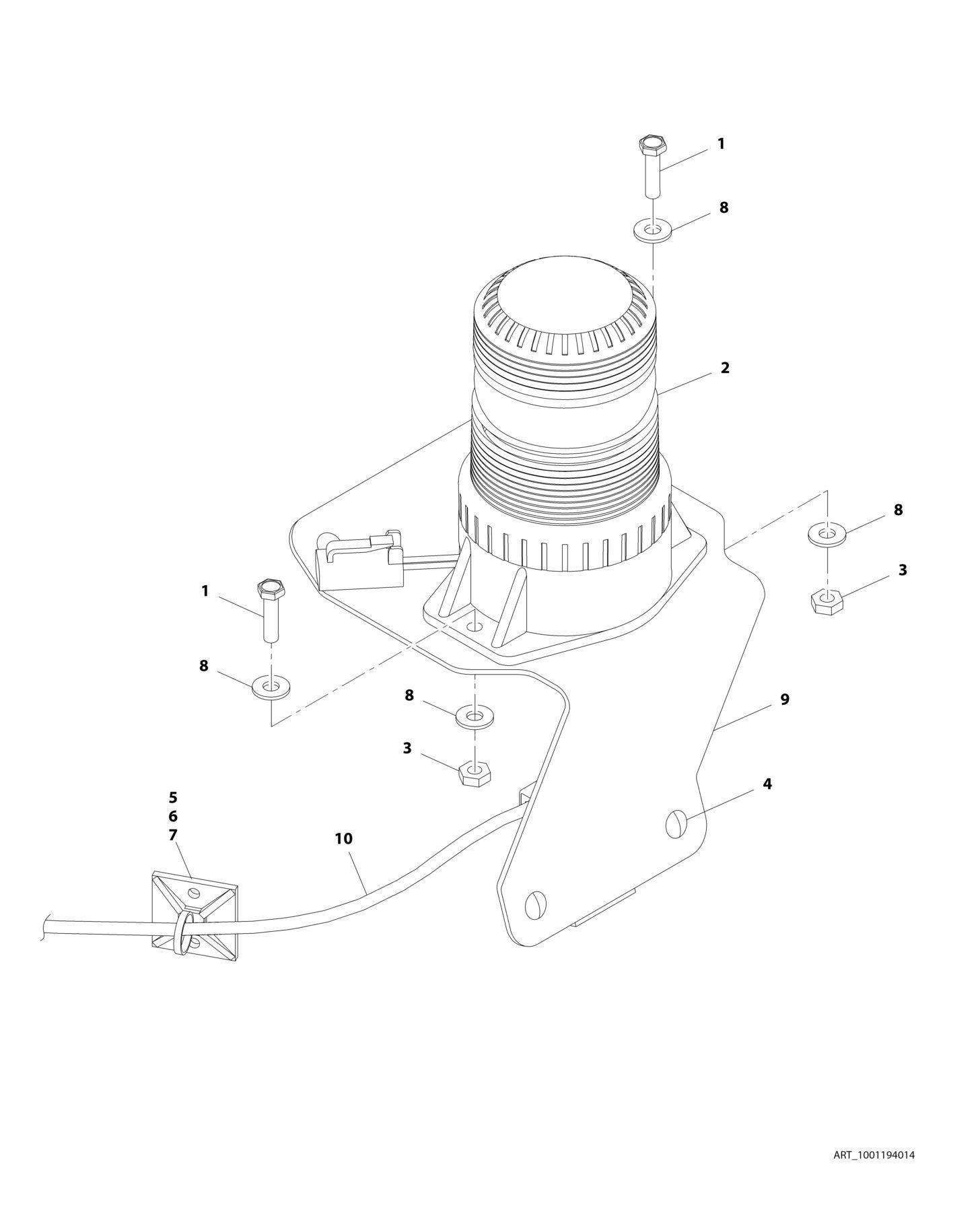

FIGURE 2-24. STROBE LIGHT INSTALLATION - AMBER

FIGURE 2-24. STROBE LIGHT INSTALLATION - AMBER

ITEM PART NUMBER QTY

DESCRIPTION

1001194014 Ref STROBE LIGHT INSTALLATION - AMBER 1 0721006 2 Screw #10 x 3/4 2 1001191139 1 Strobe Light Assembly 2 4460891 1 Plug, Male - 2 Position 2 4460465 2 Socket, Female 2 4060865 1 Guard (Optional) 3 3311005 2 Nut #10 4 3820019 4 Rivet 5 4240032 AR Tie-Strap 6 4240033 AR Tie-Strap 7 4460234 2 Mount, Cable 8 4751000 4 Washer #10 9 1001173253 1 Bracket 10 1001194071 1 Strobe Light Harness (See Separate Breakdown in ELECTRICAL SECTION)

REV

B
