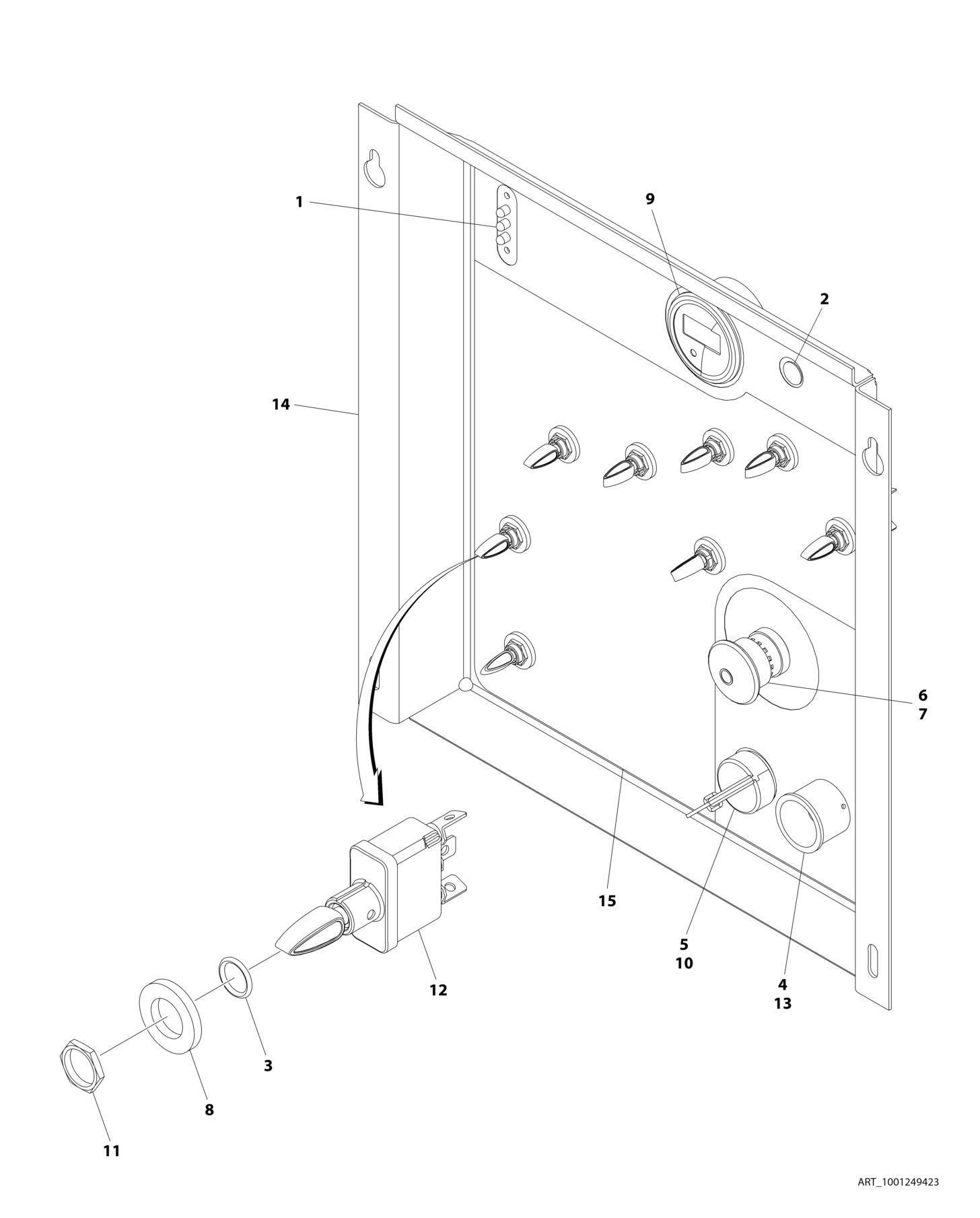

FIGURE 2 19. GROUND CONTROL BOX ASSEMBLY E300AJP (CE SPECS

FIGURE 2-19. GROUND CONTROL BOX ASSEMBLY - E300AJP (CE SPECS)

FIGURE 2-19. GROUND CONTROL BOX ASSEMBLY - E300AJP (CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001249423 Ref GROUND CONTROL BOX ASSEMBLY 1 0610131 1 Board, LED 2 3520028 1 Plug 3 3790012 8 O-Ring 4 4360387 1 Switch, Push Button 5 4360469 1 Switch, Key 5 2860030 1 Set Key, Replacement 6 4360475 1 Switch, Emergency Stop 6 7020175 1 Cap 6 7020176 1 Block, Contact 7 4360476 1 Switch, Contact 8 4740397 8 Spacer, Washer 9 1001109503 1 Gauge 10 1001151393 1 Shim, Nylon .063 11 1001155044 8 Nut 15/32 12 1001155045 8 Switch, Toggle 13 1001176469 1 Shroud, Switch 14 1001181633 1 Panel, Ground Control 15 1001221450 1 Decal - E300AJP Ground Control

REV

A
