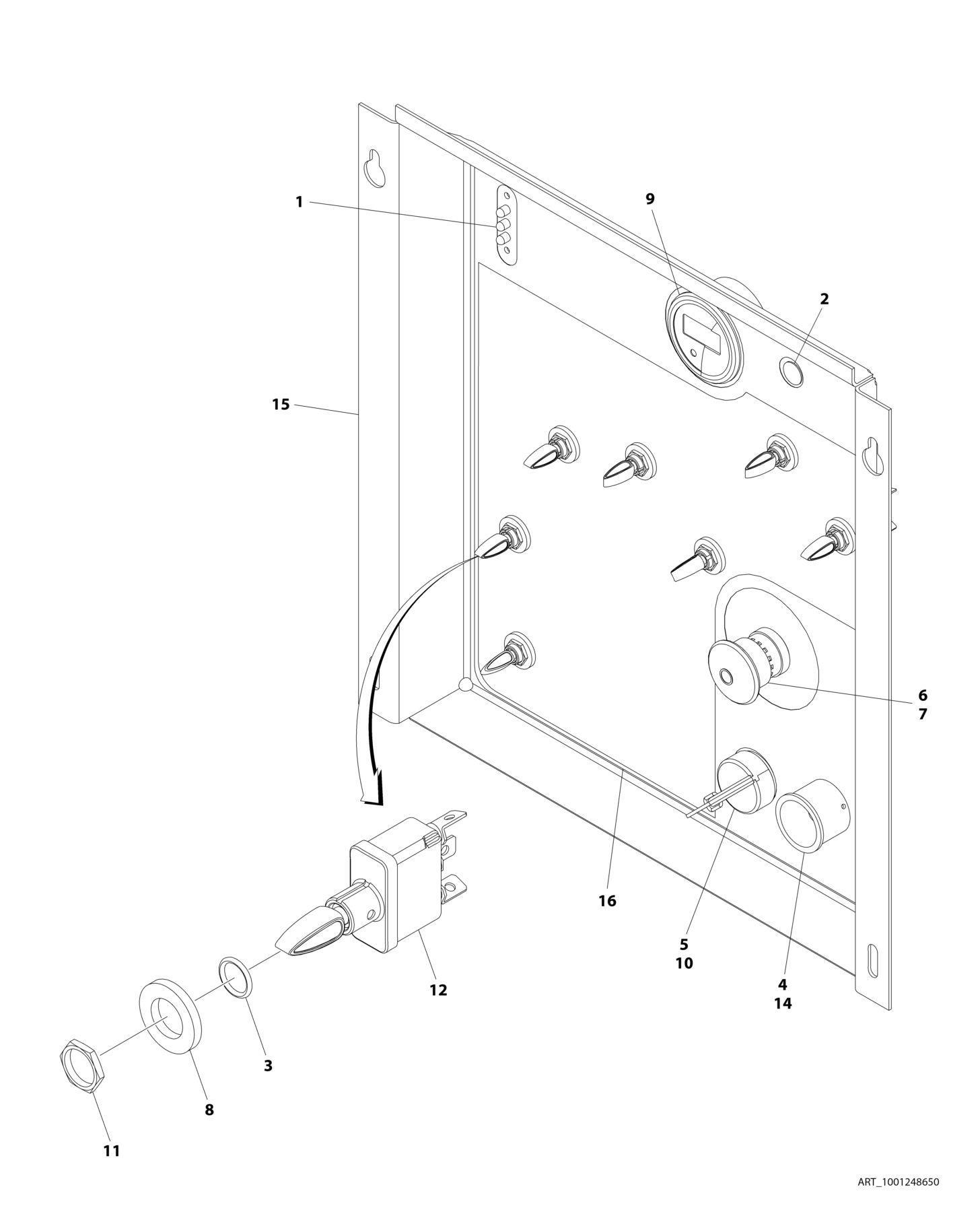

FIGURE 2 17. GROUND CONTROL BOX ASSEMBLY E300AJ (CE SPECS
ITEM PART NUMBER QTY
DESCRIPTION
1001248650 Ref GROUND CONTROL BOX ASSEMBLY 1 0610131 1 Board, LED 2 3520028 1 Plug 3 3790012 7 O-Ring 4 4360387 1 Switch, Push Button 5 4360469 1 Switch, Key 5 2860030 1 Set Key, Replacement 6 4360475 1 Switch, Emergency Stop 6 7020175 1 Cap 6 7020176 1 Block, Contact 7 4360476 1 Switch, Contact 8 4360397 7 Spacer, Washer 9 1001109503 1 Gauge 10 1001151393 1 Shim, Nylon .063 11 1001155044 7 Nut 15/32 12 1001155045 7 Switch, Toggle 14 1001176469 1 Shroud, Switch 15 1001181633 1 Panel, Ground Control 16 1001221448 1 Decal - E300AJ Ground Control
REV
A
