FIGURE 2 16. GROUND CONTROL BOX ASSEMBLY E300AJ (ALL SPECS EXCEPT CE SPECS

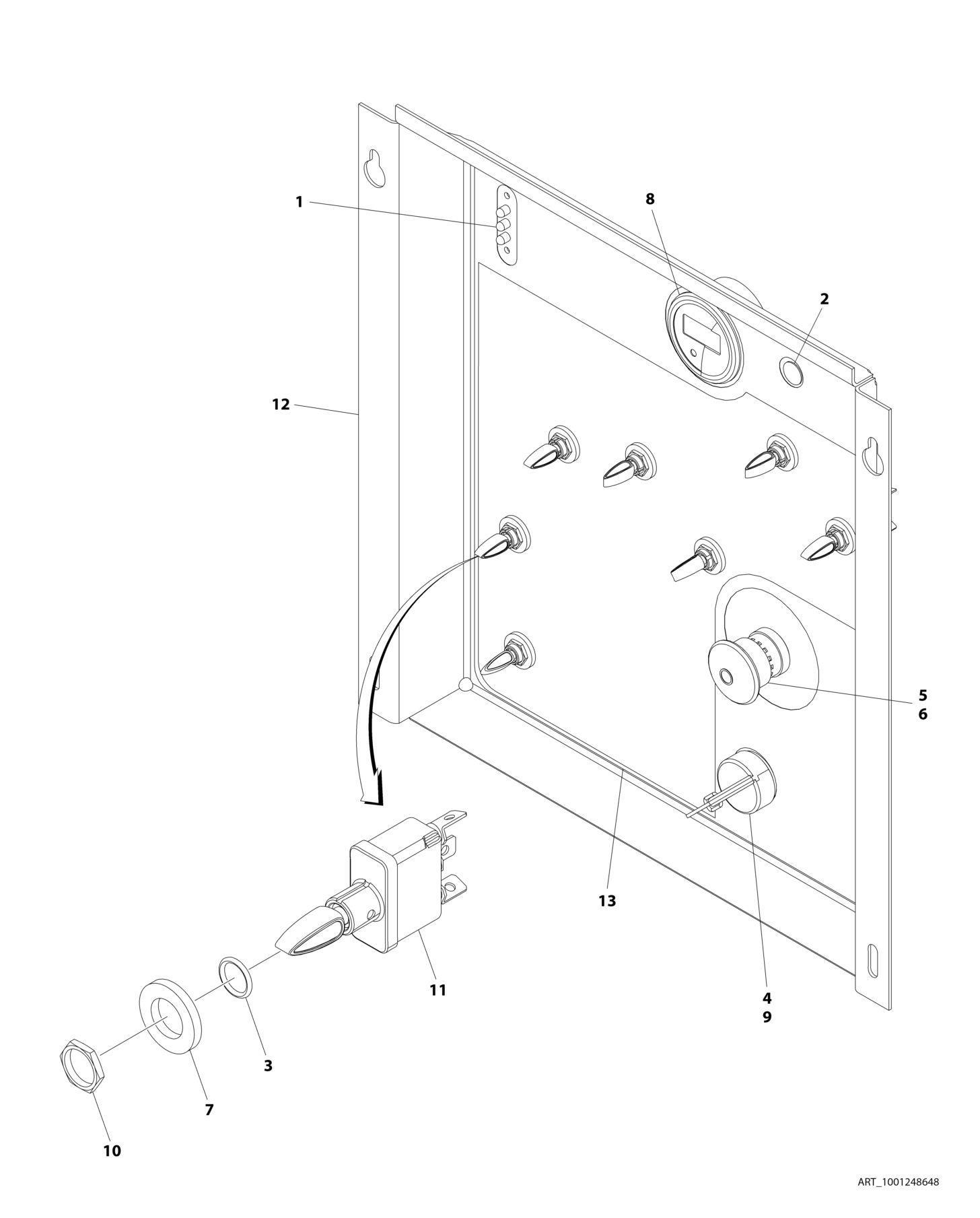

FIGURE 2-16. GROUND CONTROL BOX ASSEMBLY - E300AJ (ALL SPECS EXCEPT CE SPECS)

FIGURE 2-16. GROUND CONTROL BOX ASSEMBLY - E300AJ (ALL SPECS EXCEPT CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001248648 Ref GROUND CONTROL BOX ASSEMBLY 1 0610131 1 Board LED 2 3520028 1 Plug 3 3790012 7 O-Ring 4 4360469 1 Switch, Key 4 2860030 1 Set Key, Replacement 5 4360475 1 Switch, Emergency Stop 5 7020175 1 Cap 5 7020176 1 Block, Contact 6 4360476 1 Switch, Contact 7 4740397 7 Spacer, Washer 8 1001109503 1 Gauge 9 1001151393 1 Shim, Nylon .063 10 1001155044 7 Nut 15/32 11 1001155045 7 Switch, Toggle 12 1001181633 1 Panel, Ground Control 13 1001221447 1 Decal- E300AJ Ground Control

REV

A
