FIGURE 2 11. ELECTRICAL COMPONENTS INSTALLATION E300AJ (CE SPECS

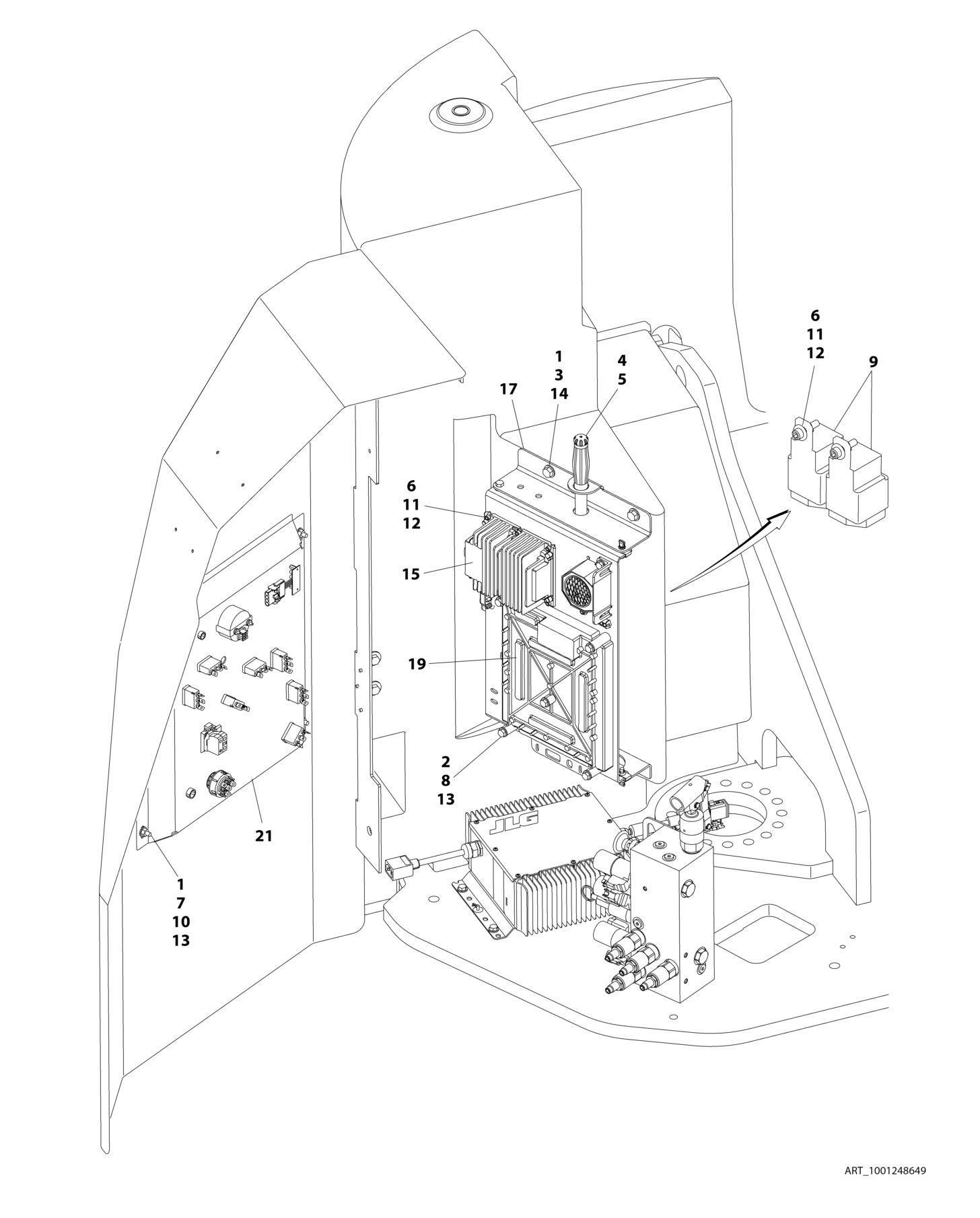

FIGURE 2-11. ELECTRICAL COMPONENTS INSTALLATION - E300AJ (CE SPECS)

FIGURE 2-11. ELECTRICAL COMPONENTS INSTALLATION - E300AJ (CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001248649 Ref ELECTRICAL COMPONENTS INSTALLATION 1 0100011 AR Compound, Locking 2 0641418 5 Bolt 1/4 x 2-1/4 3 0641606 4 Bolt 3/8 x 3/4 4 2560122 1 Handle 5 2560123 1 Grip, Handle 6 3311005 7 Nut #10 7 3311401 4 Nut 1/4 8 3311405 5 Nut 1/4 9 3740080 2 Relay 10 3900258 4 Screw 1/4 x 3/4 11 3931012 7 Capscrew #10 x 3/4 12 4711000 8 Washer #10 13 4711400 14 Washer 1/4 14 4711600 4 Washer 3/8 15 1001174447 1 Converter 16 1001181095 1 Ground Control Harness (Not Shown) (See Separate Breakdown in ELECTRICAL SECTION) 17 1001181639 1 Plate, Mounting 18 1001182474 1 Valve Harness (Not Shown) (See Separate Breakdown in ELECTRICAL SECTION) 19 1001182700 1 Module, Ground (Note: Recalibration Required when Replaced.) 20 1001245672 1 Turntable Harness (Not Shown) (See Separate Breakdown in ELECTRICAL SECTION) 21 1001248650 1 Ground Control Assembly (See Separate Breakdown in this Section)
