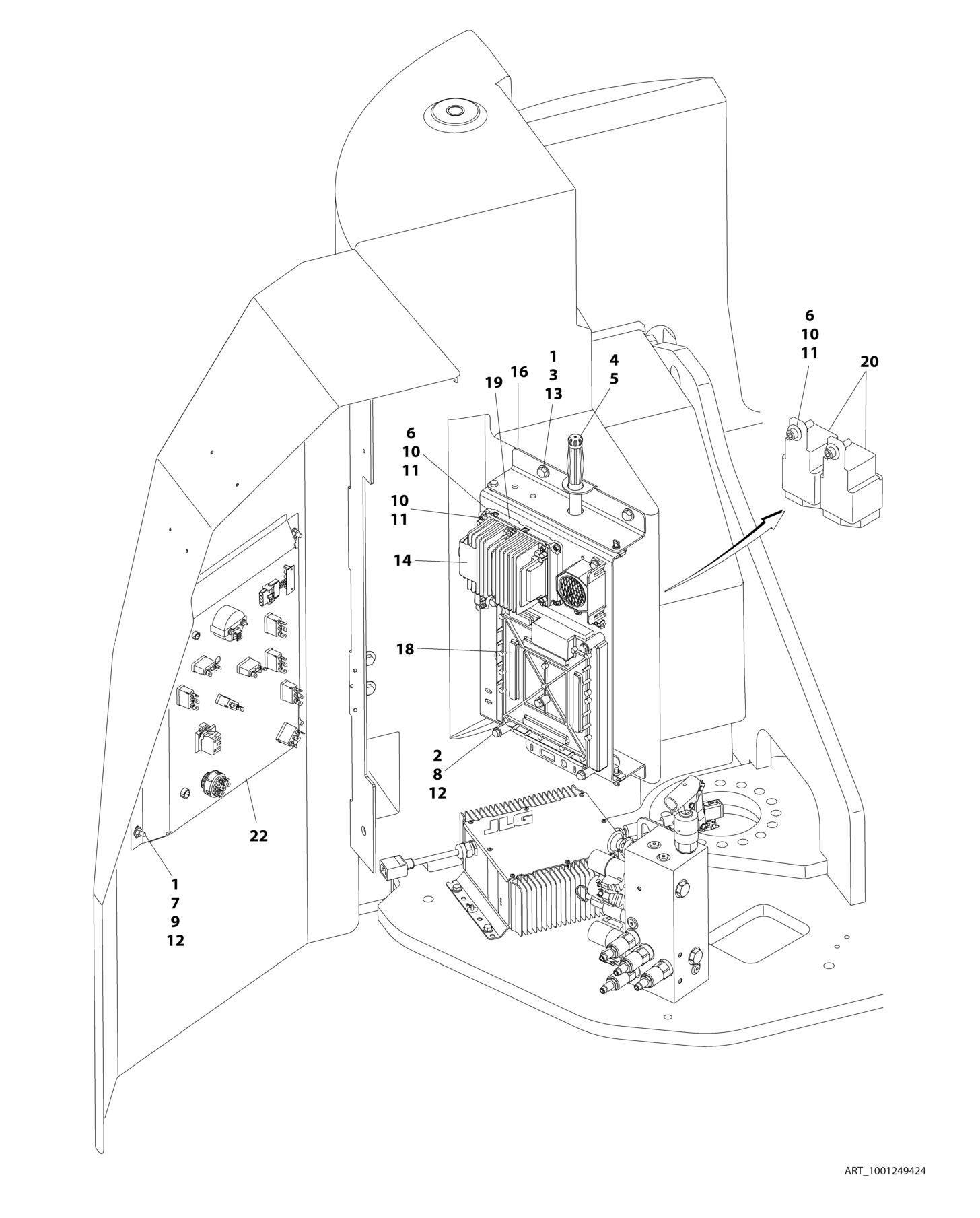

FIGURE 2 15. ELECTRICAL COMPONENTS INSTALLATION E300AJP (UL SPECS
ITEM PART NUMBER QTY
DESCRIPTION
1001249424 Ref ELECTRICAL COMPONENTS INSTALLATION 1 0100011 AR Compound, Locking 2 0641418 5 Bolt 1/4 x 2-1/4 3 0641606 4 Bolt 3/8 x 3/4 4 2560122 1 Handle 5 2560123 1 Grip, Handle 6 3311005 7 Nut #10 7 3311401 4 Nut 1/4 8 3311405 5 Nut 1/4 9 3900258 4 Screw 1/4 x 3/4 10 3931012 13 Capscrew #10 x 3/4 11 4711000 14 Washer #10 12 4711400 14 Washer 1/4 13 4711600 4 Washer 3/8 14 1001174447 1 Converter 15 1001181095 1 Ground Control Harness (Not Shown) (See Separate Breakdown in ELECTRICAL SECTION) 16 1001181639 1 Plate, Mounting 17 1001182474 1 Valve Harness (Not Shown) (See Separate Breakdown in ELECTRICAL SECTION) 18 1001182700 1 Module, Ground (Note: Recalibration Required when Replaced.) 19 1001212450 1 Insulate, Converter 20 1001214667 2 Relay 21 1001245672 1 Turntable Harness (Not Shown) (See Separate Breakdown in ELECTRICAL SECTION) 22 1001249421 1 Ground Control Assembly (See Separate Breakdown in this Section)
REV
A
