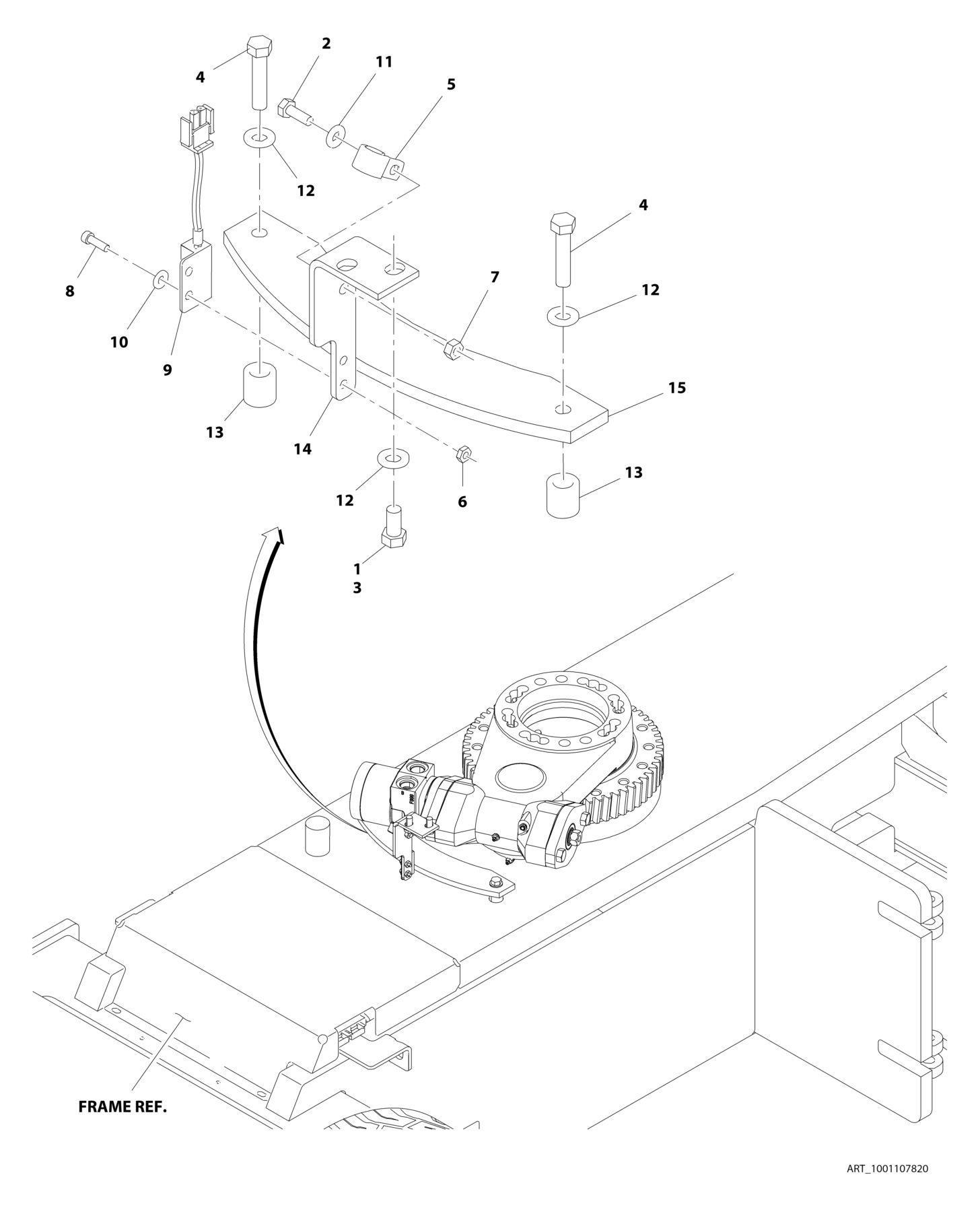

FIGURE 2 9. DRIVE ORIENTATION INSTALLATION

FIGURE 2-9. DRIVE ORIENTATION INSTALLATION

FIGURE 2-9. DRIVE ORIENTATION INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001107820 Ref DRIVE ORIENTATION INSTALLATION 1 0100011 AR Compound, Locking 2 0641406 1 Bolt 1/4 x 3/4 3 0641606 2 Bolt 3/8 x 3/4 4 0641616 2 Bolt 3/8 x 2 5 1320041 1 Clamp 6 3311005 2 Nut #10 7 3311405 1 Nut 1/4 8 3931010 2 Capscrew #10 x 5/8 9 4360517 1 Switch, Proximity 9 4460320 1 Plug, Male - 2 Position 9 4460227 2 Pin, Male 10 4711000 2 Washer #10 10 4740120 2 Washer, Nylon 11 4711400 1 Washer 1/4 12 4711600 4 Washer 3/8 13 1001114757 2 Spacer 14 1001102527 1 Bracket, Switch Mounting 15 1001108274 1 Cam

REV

C
