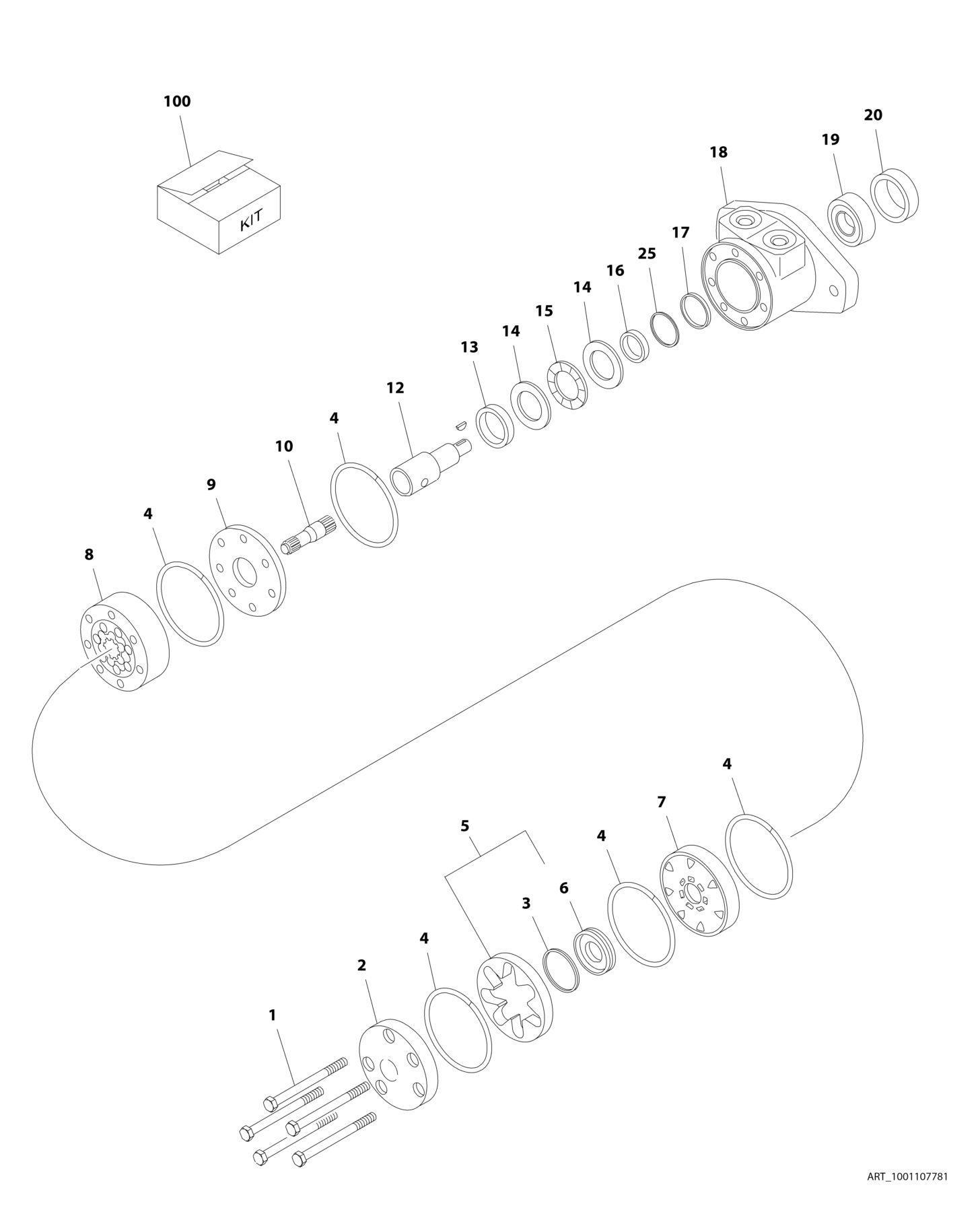

FIGURE 2 8. SWING MOTOR ASSEMBLY

FIGURE 2-8. SWING MOTOR ASSEMBLY

FIGURE 2-8. SWING MOTOR ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001107781 Ref SWING MOTOR ASSEMBLY 1 70002311 5 Bolt 2 7004035 1 Cover, End 3 See Note 1 Seal, Commutator (Note: Use p/n 7024389) 4 See Note 5 Seal, Ring (Note: Use p/n 7024389) 5 7024453 1 Commutator and Ring Assembly 6 See Note 1 Ring (Note: Use p/n 7024453) 7 7024379 1 Manifold 8 70002312 1 Rotor Set 9 7024380 1 Plate, Wear 10 70002313 1 Link, Drive 12 70000088 1 Shaft, Coupling 12 70000089 1 Key, Woodruff 13 7024381 1 Bushing, Bronze 14 7004043 2 Washer, Thrust 15 7004044 1 Bearing, Thrust 16 See Note 1 Seal, Inner (Note: Use p/n 7024389) 17 See Note 1 Washer, Back-up (Note: Use p/n 7024389) 18 See Note 1 Housing (Note: Not Available - Purchase Complete Assembly) 19 7024390 1 Bearing 20 See Note 1 Seal (Note: Use p/n 7024389) 25 See Note 1 Washer, Back-up (Note: Use p/n 7024389) 100 7024389 1 Seal Kit (Includes Items 3, 4, 16,17, 20 & 25)

REV

A
