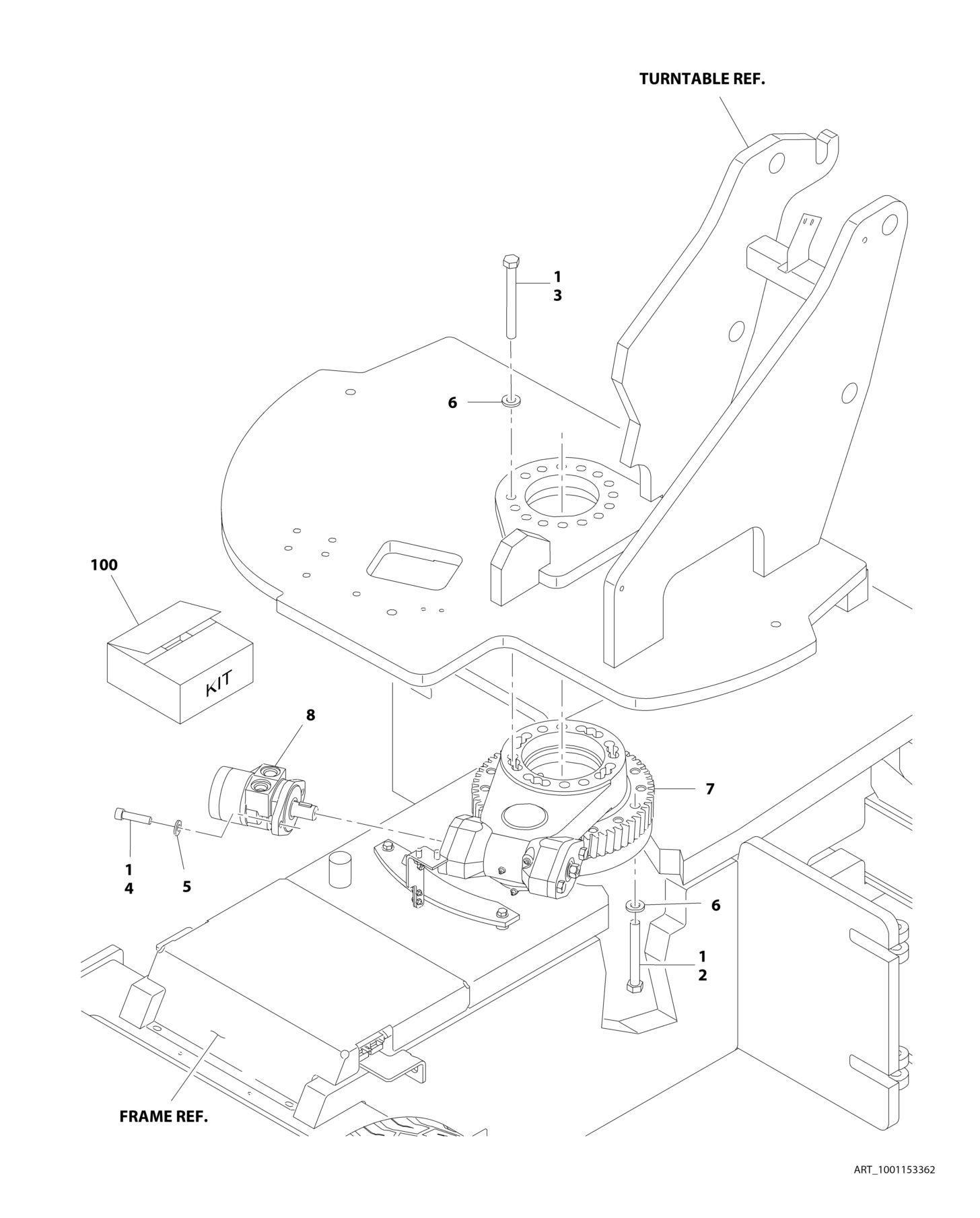

FIGURE 2 6. TURNTABLE BEARING AND SWING DRIVE INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
Ref Note: See Control Valves and Tank/Motor Installations for Remote Bearing Lube Components. 1001153362 Ref TURNTABLE BEARING AND SWING DRIVE INSTALLATION JING WEI 1 0100019 AR Compound, Locking 2 0682040 16 Bolt 5/8 x 5 (Grade 8) 3 0682048 15 Bolt 5/8 x 6 (Grade 8) 4 3931832 2 Capscrew 1/2 x 2 5 4740171 2 Washer 6 4892000 31 Washer 5/8 7 1001153013 1 Turntable Bearing Assembly (Use Item 100) (See Separate Breakdown in this Section) 8 1001107781 1 Swing Motor Assembly (See Separatae Breakdown in this Section) 100 1001160529 1 Turntable Bearing Kit (Includes p/n 1001153013 Bearing, Hardware and Instructions)
