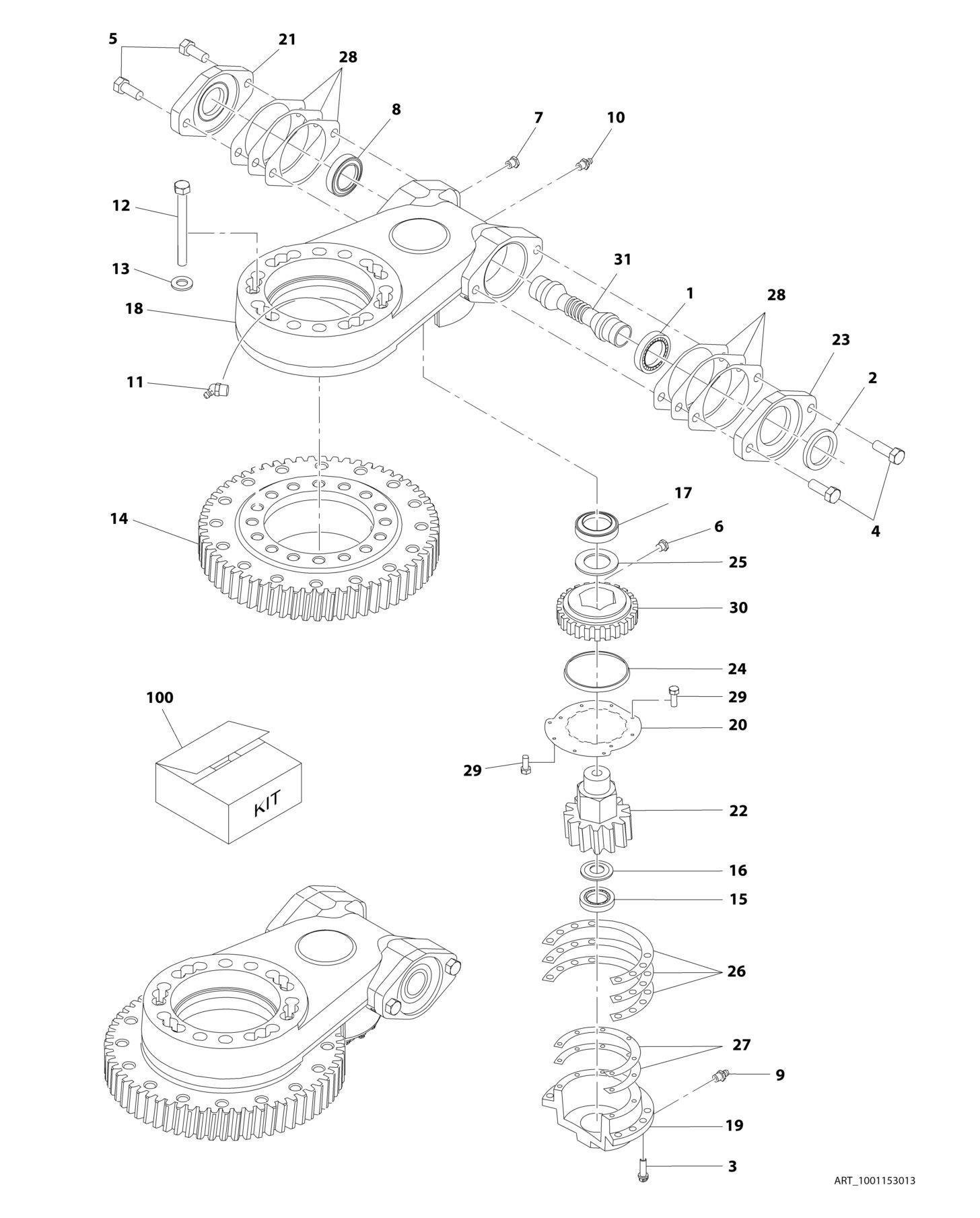

FIGURE 2 7. TURNTABLE BEARING ASSEMBLY

FIGURE 2-7. TURNTABLE BEARING ASSEMBLY

FIGURE 2-7. TURNTABLE BEARING ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001153013 Ref TURNTABLE BEARING ASSEMBLY - JING WEI 1 70002643 2 Cup, Bearing 1 70002644 2 Cone, Bearing 2 70002645 1 Seal 3 70002646 8 Bolt 5/16 x 7/8 4 70002647 2 Bolt 1/2 x 1 5 70002648 2 Bolt 1/2 x 1-1/4 6 70000865 1 Plug 7 70002649 1 Vent, Pressure 8 70002650 1 Seal 9 70002651 1 Fitting, Grease 1/4 10 Ref Component Options: 10 70002652 1 Fitting, Grease 1/8 Straight 10 See Note NSS Plug, Pipe (Note: Not Available - Purchase Locally) 11 7027359 1 Fitting, Grease 12 70002653 2 Capscrew 5/16 x 1-1/4 13 70002654 2 Washer 1/4 14 70004160 1 Ring Gear Kit (Kit Includes Ring Gear and Mounting Hardware) 15 70002656 1 Cup, Bearing 15 70002657 1 Cone, Bearing 16 70002658 1 Ring, Grease 17 7026048 1 Cup, Bearing 17 7026049 1 Cone, Bearing 18 1001103646 1 Housing 19 70002659 1 Cap, Gear 20 70002660 1 Plate, Cover 21 70002661 1 Cap, Worm 22 70002662 1 Pinion, Output 23 70002663 1 Adapter, Motor 24 70002664 1 Seal, Face 25 7026052 1 Spacer, Washer 26 70002665 1 Shim .0075 Natural 26 70002666 1 Shim .005 Blue 26 70002667 1 Shim .003 Green 27 70002668 1 Shim .005 Blue 27 70002669 1 Shim .020 Yellow 28 7027352 1 Gasket .010 Brown 28 7027351 1 Gasket .0075 Clear 28 7027350 1 Gasket .005 Blue 28 7027353 1 Gasket .020 Yellow 29 70000681 10 Bolt #6 x 3/8 30 70002670 1 Gear, Worm 31 70002671 1 Shaft, Worm 100 1001160529 1 Turntable Bearing Kit (Includes p/n 1001153013 Bearing, Hardware and Instructions)

REV

B
