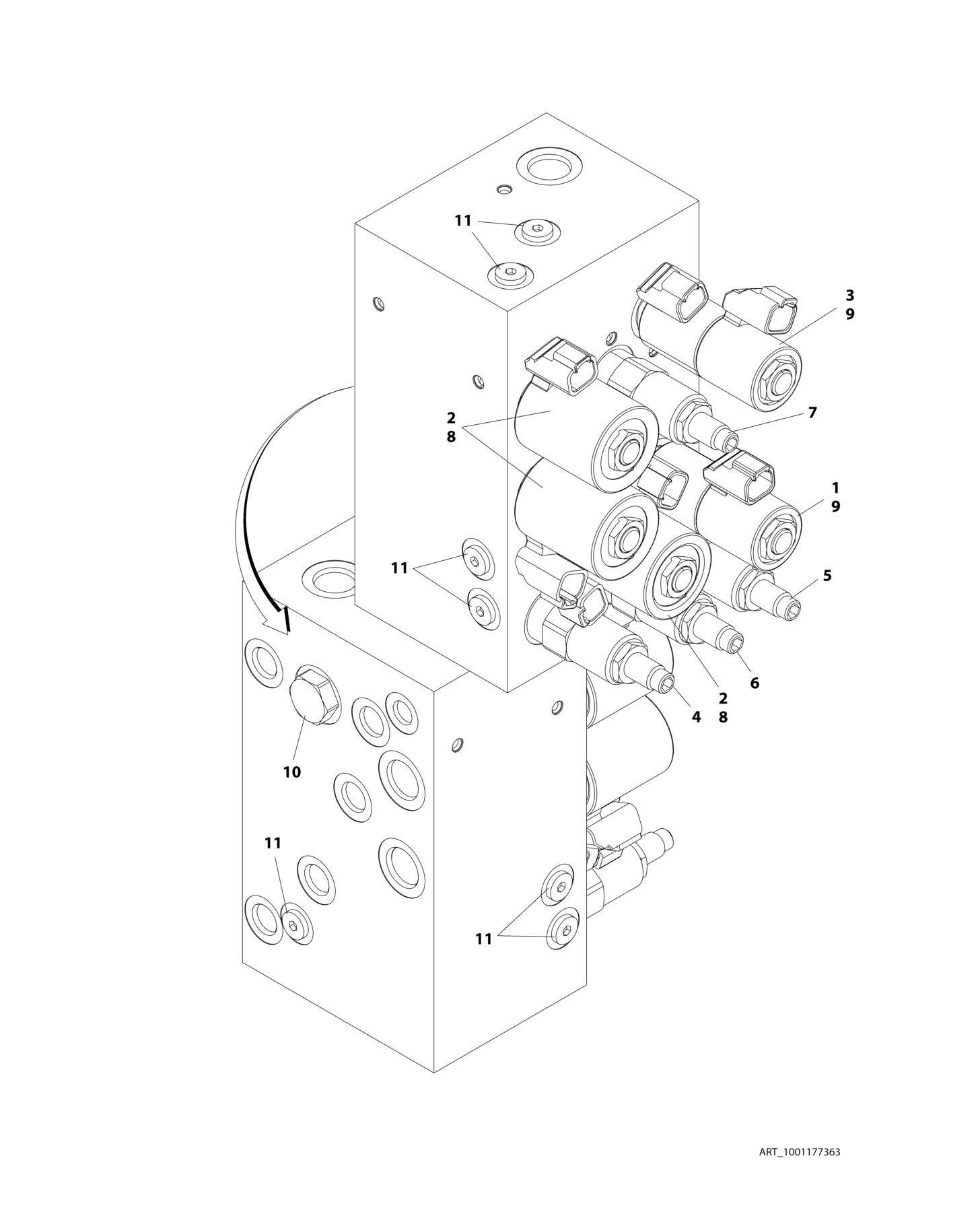

FIGURE 2 3. MAIN VALVE ASSEMBLY

FIGURE 2-3. MAIN VALVE ASSEMBLY

FIGURE 2-3. MAIN VALVE ASSEMBLY

ITEM PART NUMBER QTY DESCRIPTION

1001177363 Ref MAIN VALVE ASSEMBLY 1 7017433 1 Cartridge, Solenoid Valve (Steer Direction) 1 7017402 1 Seal Kit - 7017433 Cartridge 2 70002401 3 Cartridge, Solenoid (Flow Control/Main and Tower Lift Dump) 2 7017496 3 Seal Kit - 70002401 Cartridge 3 70002402 1 Cartridge, Solenoid (Swing) 3 7017402 1 Seal Kit - 70002402 Cartridge 4 70002403 1 Cartridge, Relief Valve (Main) 4 7012972 1 Seal Kit - 70002403 Cartridge 5 7017489 1 Cartridge, Relief Valve (Steer) 5 7012998 1 Seal Kit - 7017489 Cartridge 6 7017488 1 Cartridge, Relief Valve (Steer) 6 7012998 1 Seal Kit - 7017488 Cartridge 7 70002404 1 Cartridge, Relief Valve (Swing) 7 7012998 1 Seal Kit - 70002404 Cartridge 8 7024883 3 Coil 9 7024885 4 Coil 10 7010542 1 Cartridge, Load Shuttle (Swing) 10 7010543 1 Seal Kit - 7010542 Cartridge 11 7017406 AR Plug

REV

B
