FIGURE 2 4. BOOM VALVE ASSEMBLY E300AJ

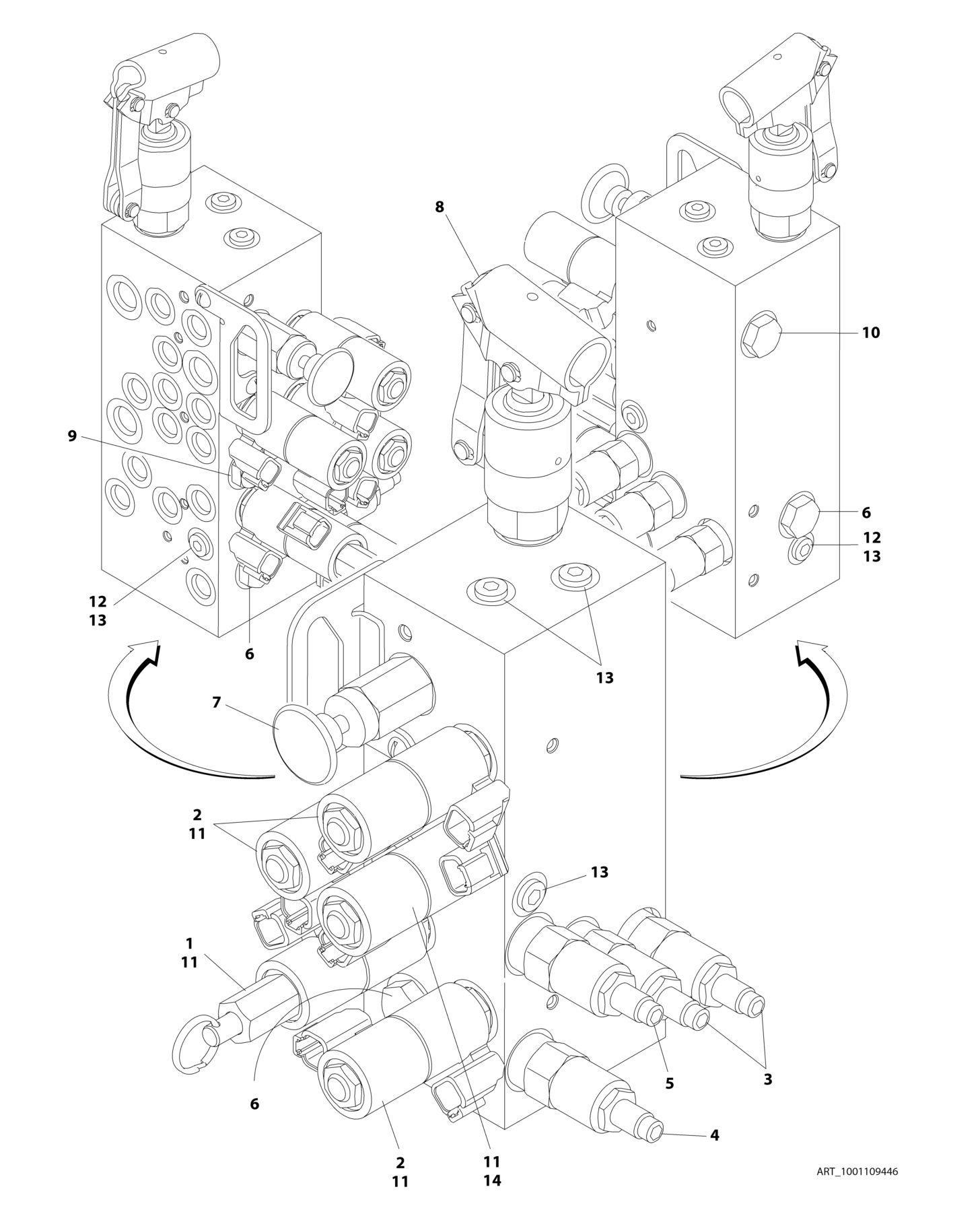

FIGURE 2-4. BOOM VALVE ASSEMBLY - E300AJ

FIGURE 2-4. BOOM VALVE ASSEMBLY - E300AJ

ITEM PART NUMBER QTY

DESCRIPTION

1001109446 Ref BOOM VALVE ASSEMBLY - E300AJP 1 70002405 1 Cartridge, Solenoid (Jib Lift) 1 7017402 1 Seal Kit - 70002405 Cartridge 2 7017452 3 Cartridge, Solenoid Valve (Telescope/Platform Rotate/Platform Level and Master) 2 7017402 3 Seal Kit - 7017452 Cartridge 3 7017421 2 Cartridge, Relief Valve (Jib Lift/Platform Level and Master) 3 7012998 2 Seal Kit - 7017421 Cartridge 4 7017418 1 Cartridge, Relief Valve (Platform Level and Master) 4 7012998 1 Seal Kit - 7017418 Cartridge 5 7017489 1 Cartridge, Relief Valve (Jib Lift) 5 7012998 1 Seal Kit - 7017489 Cartridge 6 7012914 2 Cartridge, Pressure Control Valve 6 7012918 2 Seal Kit - 7012914 Cartridge 7 70002406 1 Cartridge, Manual Control Valve 7 7012904 1 Seal Kit - 70002406 Cartridge 7 7012959 1 Knob 8 70004019 1 Cartridge, Hand Pump Valve (was p/n 7012694) 8 7017496 1 Seal Kit - 7012694 Cartridge 8 2900756 1 Seal Kit - 70004019 Cartridge 9 7022391 1 Cartridge, Check Valve 9 7012967 1 Seal Kit - 7022391 Cartridge 10 4641129 1 Cartridge, Check Valve 10 7012540 1 Seal Kit - 4641129 Cartridge 11 7024885 10 Coil 12 70003528 2 Orifice 13 701706 8 Plug 14 7017452 1 Cartridge, Solenoid (Jib Rotate) 14 7017402 1 Seal Kit - 7017452 Cartridge
