FIGURE 2 1. VALVES, TANK AND MOTOR INSTALLATION E300AJ

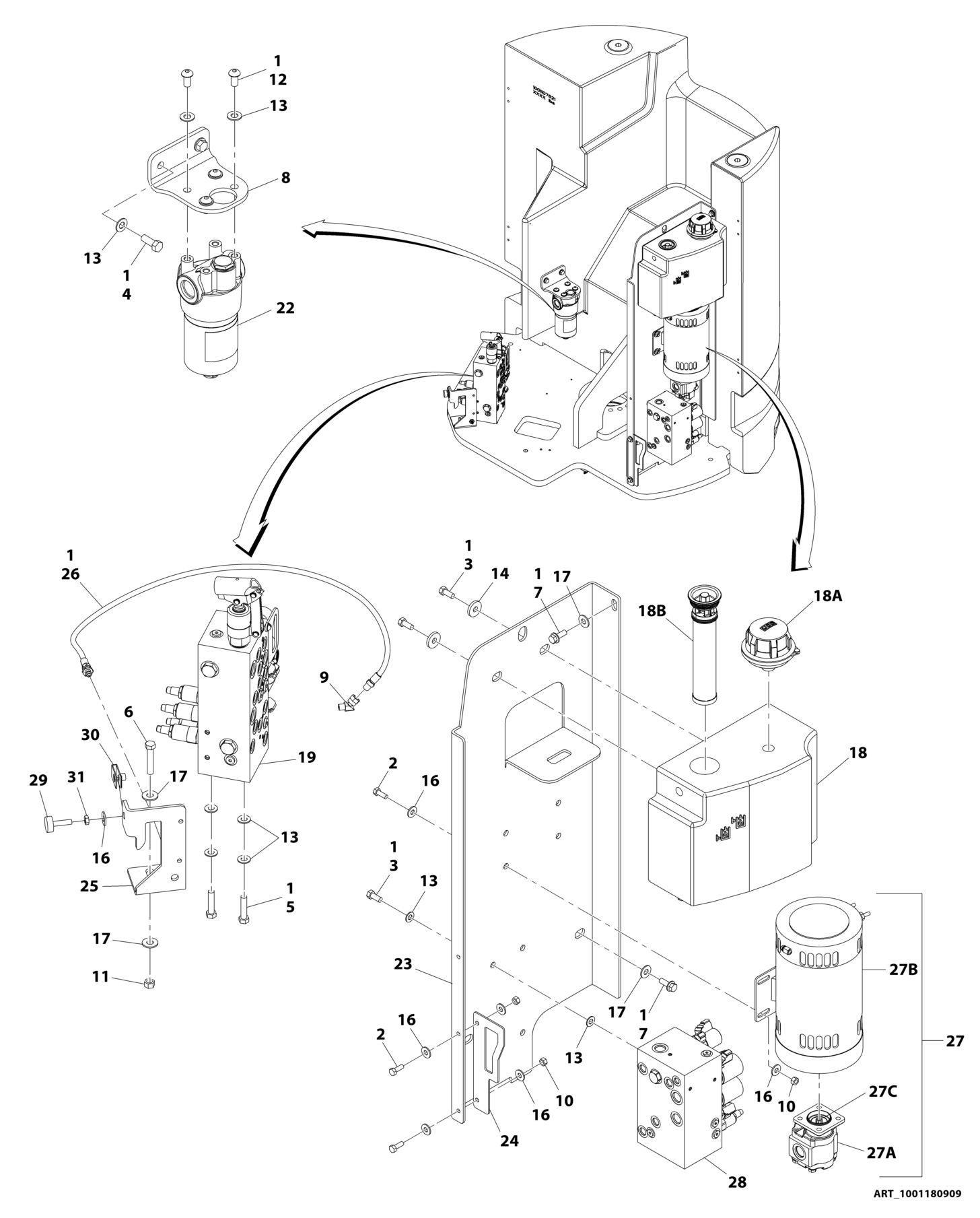

FIGURE 2-1. VALVES, TANK AND MOTOR INSTALLATION - E300AJ

FIGURE 2-1. VALVES, TANK AND MOTOR INSTALLATION - E300AJ

ITEM PART NUMBER QTY

DESCRIPTION

1001180909 Ref VALVES, TANK AND MOTOR INSTALLATION - E300AJ 1 0100011 AR Compound, Locking 2 0641507 6 Bolt 5/16 x 7/8 3 0641607 5 Bolt 3/8 x 7/8 4 0641608 2 Bolt 3/8 x 1 5 0641613 4 Bolt 3/8 x 1-5/8 6 0641616 1 Bolt 3/8 x 2 7 0811608 3 Screw 3/8 x 1 8 0903530 1 Bracket, Filter Mounting 9 2220124 1 Fitting, 45 NPT 10 3311505 6 Nut 5/16 11 3311605 1 Nut 3/8 12 3900283 4 Screw 3/8 x 3/4 13 4711600 20 Washer 3/8 14 4740308 2 Washer 16 4751500 13 Washer 5/16 17 4751600 5 Washer 3/8 18 1001109126 1 Hydraulic Tank Assembly 18A 70002526 1 Breather 18B 70002525 1 Filter 19 1001109447 1 Boom Valve Assembly (See Separate Breakdown in this Section) 22 1001162882 1 Filter, High Pressure 22 70004228 1 Element, Filter 23 1001164642 1 Plate, Hydraulic Tray 24 1001164643 1 Plate, Clamp Holder 25 1001164706 1 Plate, Latch 26 1001174991 1 Hose 27 1001227665 1 Pump (Spline Shaft) Electric Motor Assembly 27 Ref Note: When replacing pump or motor/pump assembly, refer to Service Manual for initial pump start up procedure. 27A 1001230634 1 Pump 27A 70006345 1 Mounting Kit (Includes (4) Screws, (4) Washers & (1) Gasket) 27B 1001175350 1 Motor 27C 3020037 1 Lube, Coupling Grease 27B 1001175350 1 Motor 28 1001177363 1 Main Valve Assembly (See Separate Breakdown in this Section) 29 0940049 1 Stopper 30 88662523 1 Nut, Tinnerman 31 3311502 1 Nut 5/16

REV

D
