FIGURE 1 13. INVERTER INSTALLATION OPTIONAL

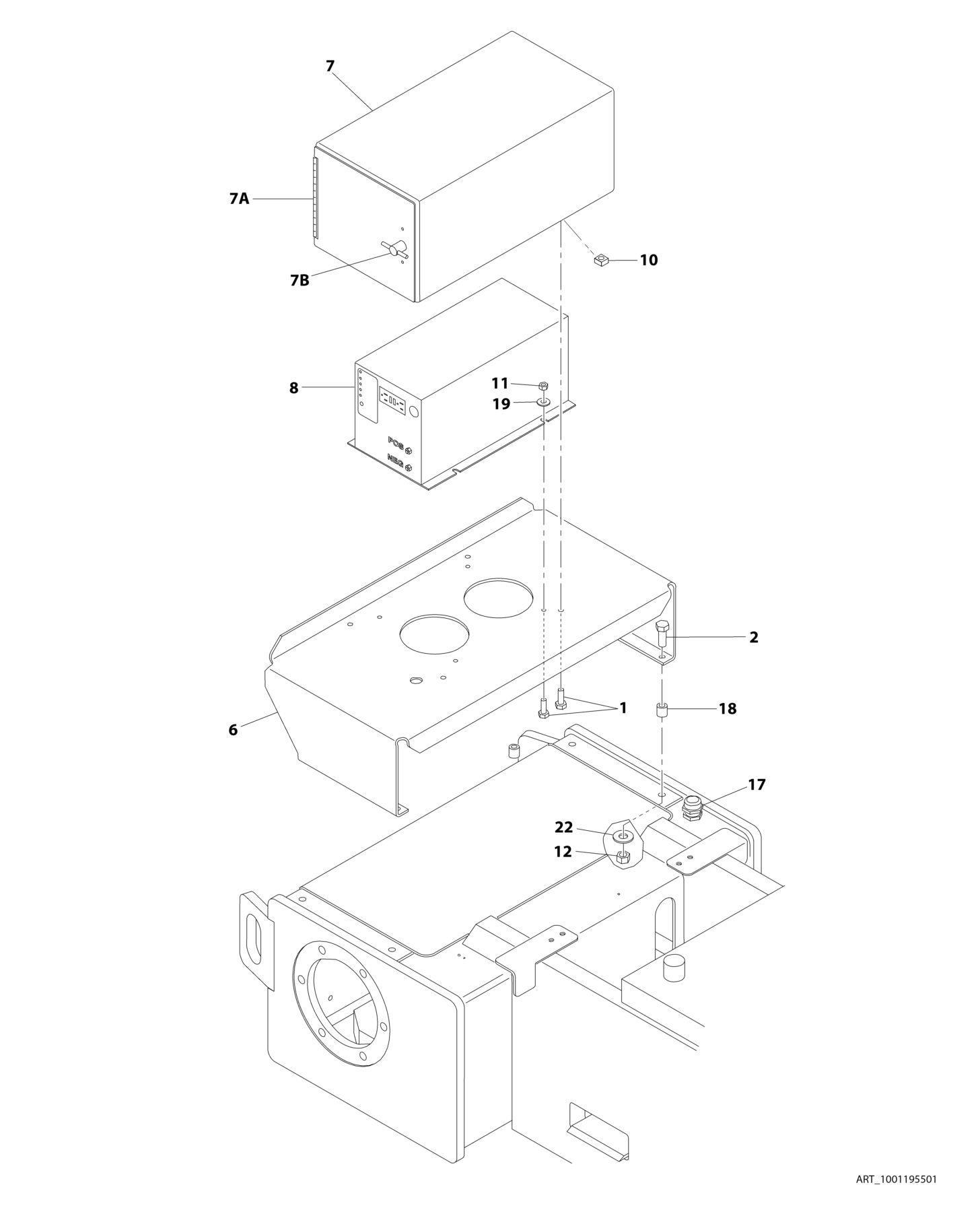

FIGURE 1-13. INVERTER INSTALLATION - OPTIONAL

FIGURE 1-13. INVERTER INSTALLATION - OPTIONAL

ITEM PART NUMBER QTY

DESCRIPTION

1001195501 Ref INVERTER INSTALLATION - OPTIONAL 1 0641406 8 Bolt 1/4 x 3/4 2 0641618 4 Bolt 3/8 x 2-1/4 3 1060494 AR Cable, Electrical - 12/3 (Not Shown) 4 1060801 1 Cable, Inverter Positive (Not Shown) 5 1060802 1 Cable, Inverter Negative (Not Shown) 6 1271463 1 Channel, Mounting 7 1670953 1 Cover 7A 2600103 1 Hinge (Welded on Part) 7B 2940048 1 Latch 8 2460037 1 Inverter/Generator Assembly 10 3300353 4 Nut, Tinnerman 11 3311405 4 Nut 1/4 12 3311605 4 Nut 3/8 15 4460134 1 Connector, Female Twist Lock (Not Shown) 16 4460138 1 Plug, Male (Not Shown) 17 4460426 1 Connector, Strain Relief 18 4568165 4 Spacer, Tube 19 4751400 4 Washer 1/4 21 1001192293 1 Inverter Harness (Not Shown - See Separate Breakdown in ELECTRICAL SECTION) 22 4751600 4 Washer 3/8
