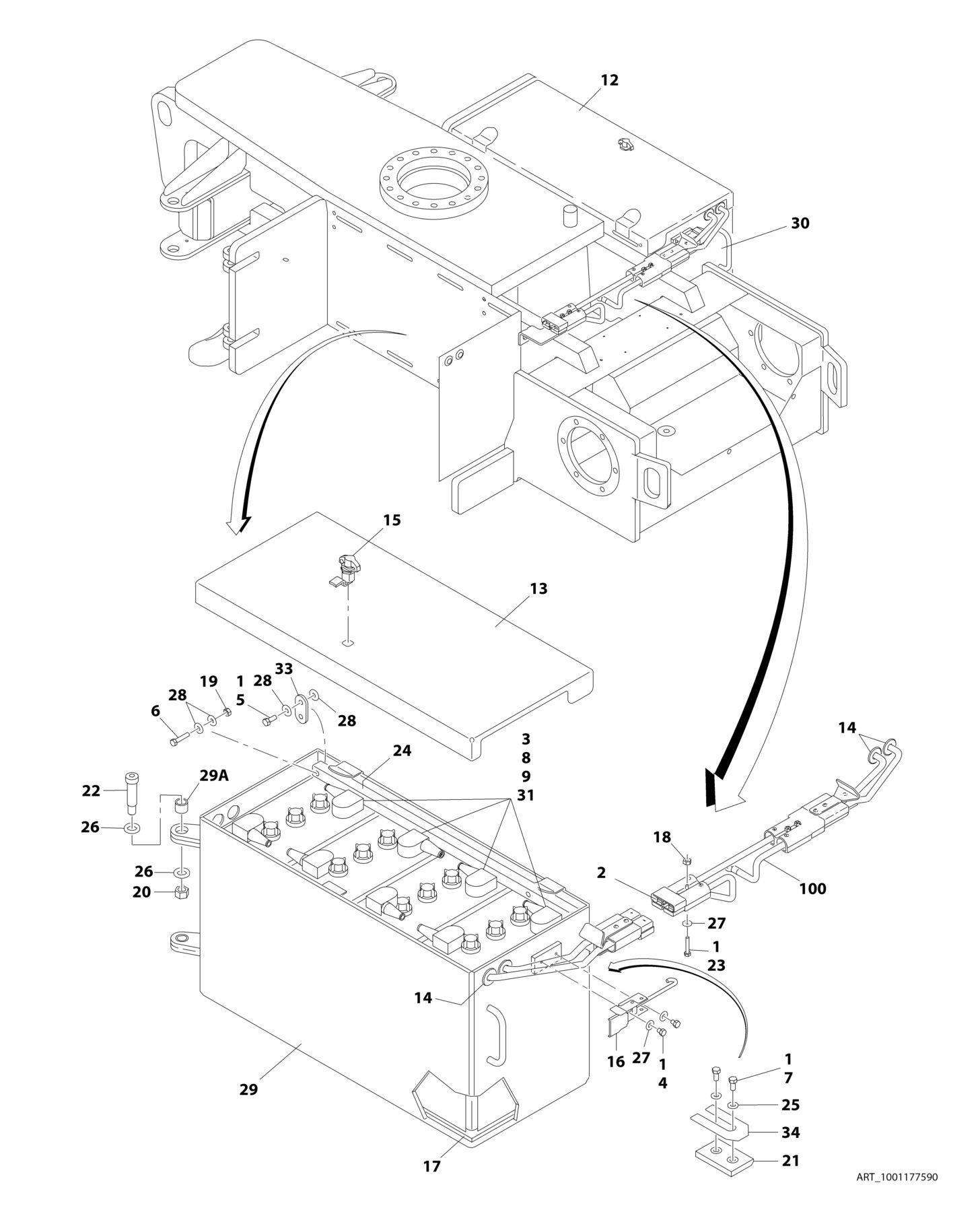

FIGURE 1 11. BATTERY INSTALLATION 305AH AGM BATTERIES
ITEM PART NUMBER QTY
DESCRIPTION
1001177590 Ref BATTERY INSTALLATION - 305AH AGM BATTERIES 1 0100011 AR Compound, Locking 2 0100048 AR Grease, Dielectric 3 0100051 AR Grease, Battery Terminal 4 0641403 4 Bolt 1/4 x 3/8 5 0641505 4 Bolt 5/16 x 5/8 6 0641514 4 Bolt 5/16 x 1-3/4 7 0641606 4 Bolt 3/8 x 3/4 8 0840031 7 Boot, Terminal ("d" Shaped) 9 0840032 9 Boot, Terminal ("b" Shaped) 12 1670878 1 Cover (Right) 13 1670890 1 Cover (Left) 14 2540020 4 Grommet 15 2940073 2 Latch 16 2940114 2 Latch 17 3000003 2 Liner 18 3311401 4 Nut 1/4 19 3311505 4 Nut 5/16 20 3312005 4 Nut 5/8 21 3340852 2 Pad 22 3900266 4 Screw 23 3931430 4 Capscrew 1/4 x 1-7/8 24 4567739 2 Tube 25 4711600 4 Washer 3/8 26 4740086 8 Thrustwasher 27 4751400 8 Washer 1/4 28 4751500 AR Washer 5/16 29 4845923 1 Box, Battery (Left) 29A 0962233 2 Bushing 30 4845924 1 Box, Battery (Right) 30A 0962233 2 Bushing (Not Shown) 31 1001114782 8 Battery (6V-305AH-AGM) 33 1001116006 4 Bracket 34 4070904 2 Shim 100 1001194945 1 Battery Cable kit (See Separate Breakdown in ELECTRICAL SECTION)
REV
B
