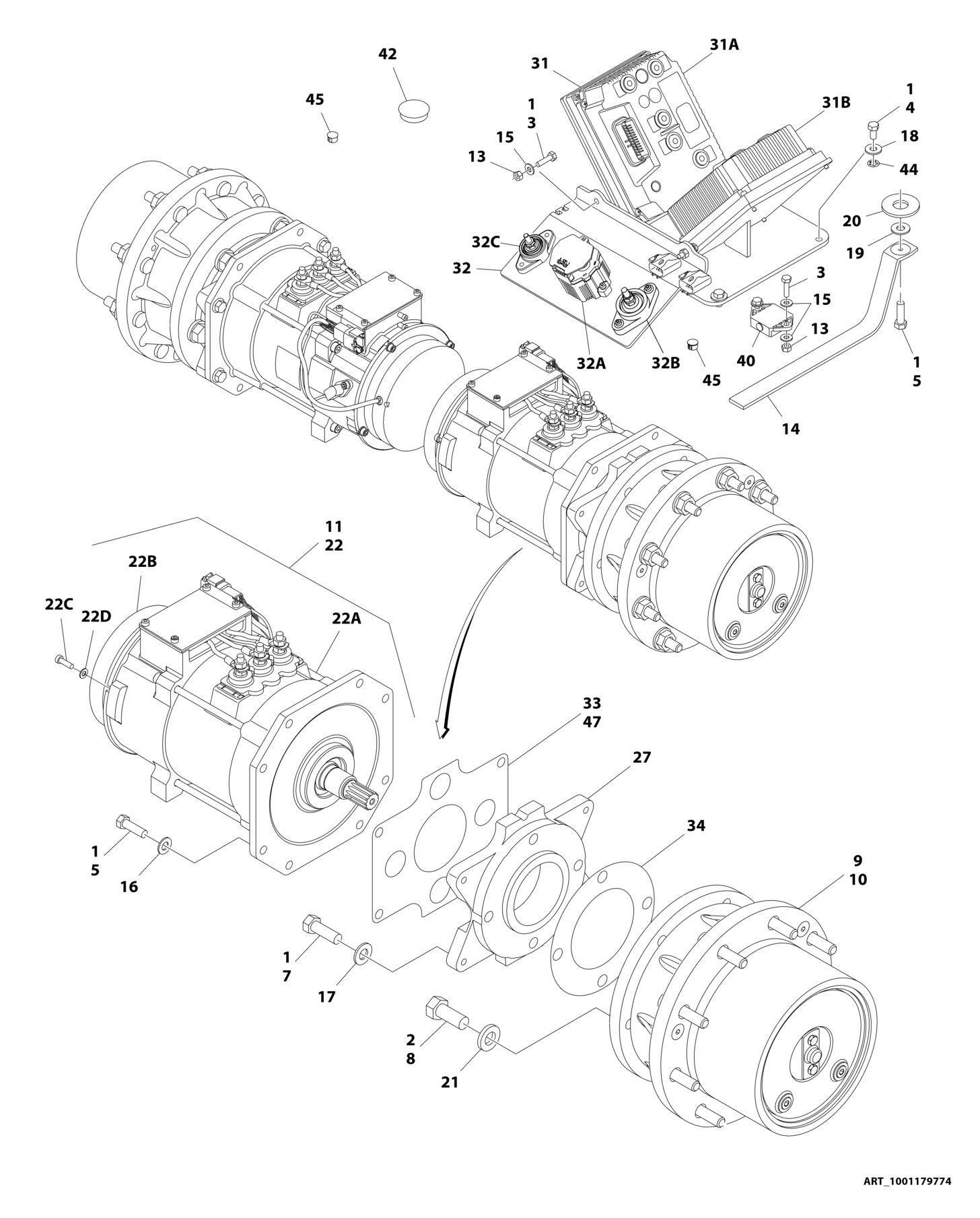

FIGURE 1 4. WHEEL DRIVE INSTALLATION (ALL SPECS EXCEPT UL SPEC
ITEM PART NUMBER QTY DESCRIPTION REV
1001179774 Ref WHEEL DRIVE INSTALLATION (ALL SPECS EXCEPT UL SPEC) L 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0641408 4 Bolt 1/4 x 1 4 0641505 4 Bolt 5/16 x 5/8 5 0641610 9 Bolt 3/8 x 1-1/4 7 0641812 8 Bolt 1/2 x 1-1/2 8 0682012 12 Bolt 5/8 x 1-1/2 9 2780282 2 Drive Hub Assembly (See Separate Breakdown in this Section) 10 3020008 0.4 gl/ Lube, Gear 80W-90 1.5L 11 3020037 AR Grease, Coupling 13 3311401 4 Nut 1/4 14 4240084 1 Strap, Anti-Static 15 4711400 6 Washer 1/4 16 4711600 8 Washer 3/8 17 4711800 8 Washer 1/2 18 4751500 4 Washer 5/16 19 4751600 1 Washer 3/8 20 4752200 1 Washer 3/4 21 4892000 12 Washer 5/8 22 1001184854 2 Drive Motor/Brake Assembly G 22A 1001182550 2 Drive Motor Assembly (See Separate Breakdown in this Section) 22B 1001184852 2 Drive Brake Assembly 22B 70005415 2 O-Ring Between Brake and Motor (Not Shown) 22C 4031707 8 Capscrew M6 x 16 22D 1001109892 8 Washer M6 23 1001192112 1 Traction Module to Turntable Harness (Not Shown - See Separate Breakdown in ELECTRICAL SECTION) 24 1001192110 1 Traction Module to Drive Harness (Not Shown - See Separate Breakdown in ELECTRICAL SECTION) 27 1001219722 2 Plate, Adapter Motor 31 1001180317 1 Drive Module Assembly 31A 1001178339 1 Module, Drive 31B 1001192212 1 Module, Drive 32 1001180675 1 Drive Plate Assembly F 32A 1001170367 1 Relay 32B 1001186860 1 Power Distribution Stud 32C 1001212359 1 Power Distribution Stud 33 1001220271 2 Seal, Motor 34 1001182960 2 Seal, Hub 40 1001219601 1 Sensor 42 3520035 1 Plug (Located on Frame) 44 1001119228 4 Nut M8 45 3520028 4 Plug (Located on Frame) 46 4240033 1 Tie-Strap (Not Shown) 47 0100020 AR Sealant 100 1001195097 1 Drive Cable Kit (Not Shown - See Separate Breakdown in ELECTRICAL SECTION)
