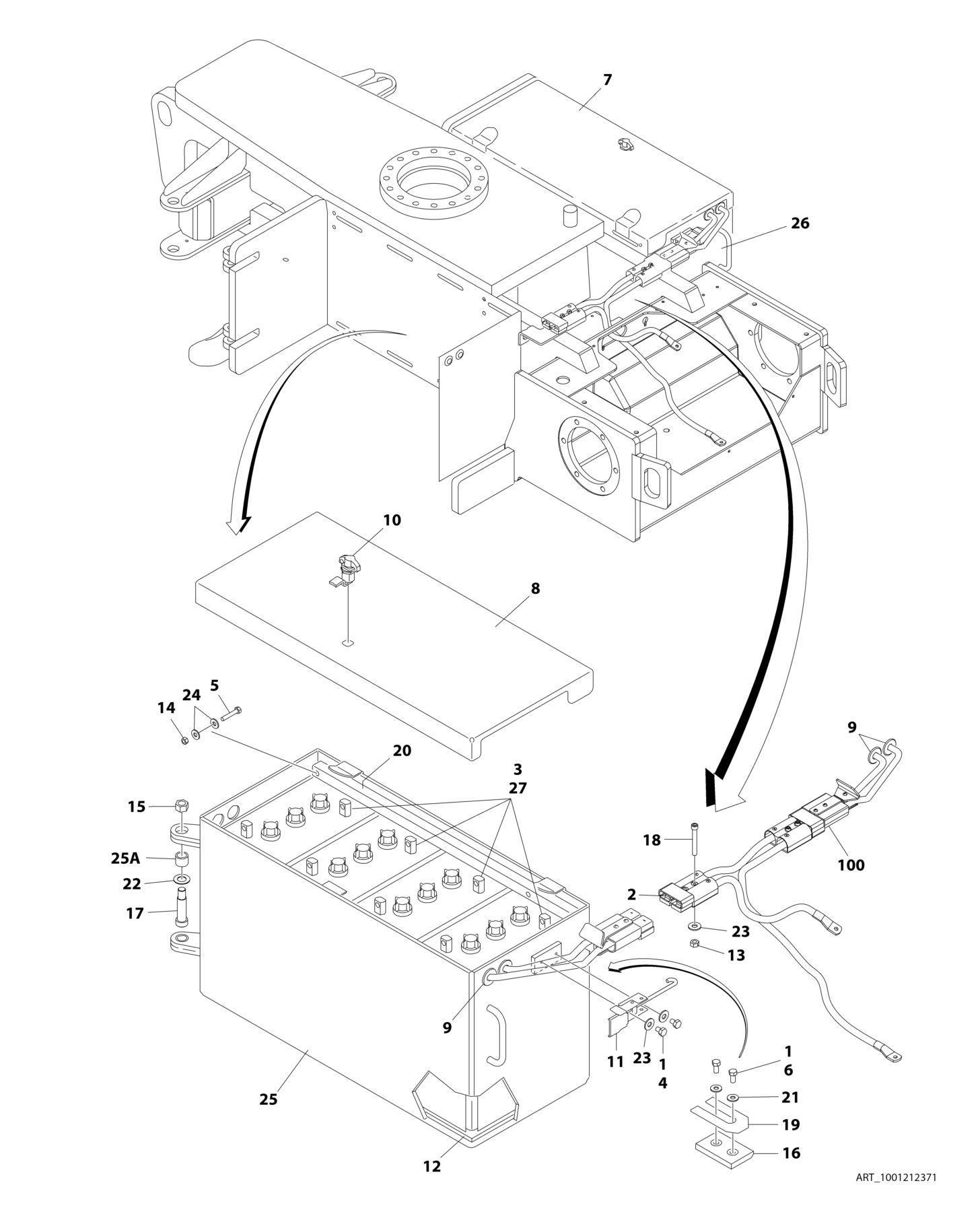

FIGURE 1 10. BATTERY INSTALLATION 305AH BATTERIES (UL SPECS
ITEM PART NUMBER QTY DESCRIPTION REV
1001212371 Ref BATTERY INSTALLATION - 305AH BATTERIES (UL SPECS) A 1 0100011 AR Compound, Locking 2 0100048 AR Grease, Dielectric 3 0100051 AR Grease, Battery Terminal 4 0641403 4 Bolt 1/4 x 3/8 5 0641514 4 Bolt 5/16 x 1-3/4 6 0641606 4 Bolt 3/8 x 3/4 7 1670878 1 Cover (Right) 8 1670890 1 Cover (Left) 9 2540020 4 Grommet 10 2940073 2 Latch 11 2940114 2 Latch 12 3000003 2 Liner 13 3311401 4 Nut 1/4 14 3311505 4 Nut 5/16 15 3312005 4 Nut 5/8 16 3340852 2 Pad 17 3900266 4 Screw 18 3931430 4 Capscrew 1/4 x 1-7/8 19 4070904 2 Shim 20 4567739 2 Tube 21 4711600 4 Washer 3/8 22 4740086 4 Thrustwasher 23 4751400 8 Washer 1/4 24 4751500 8 Washer 5/16 25 4845923 1 Box, Battery (Left) 25A 0962233 2 Bushing 26 4845924 1 Box, Battery (Right) 26A 0962233 2 Bushing (Not Shown) 27 1001105091 8 Battery (6V-305-S) 100 1001212376 1 Battery Cable Kit (See Separate Breakdown in ELECTRICAL SECTION)
