FIGURE 1 3. HUB AND SPINDLE ASSEMBLY RH

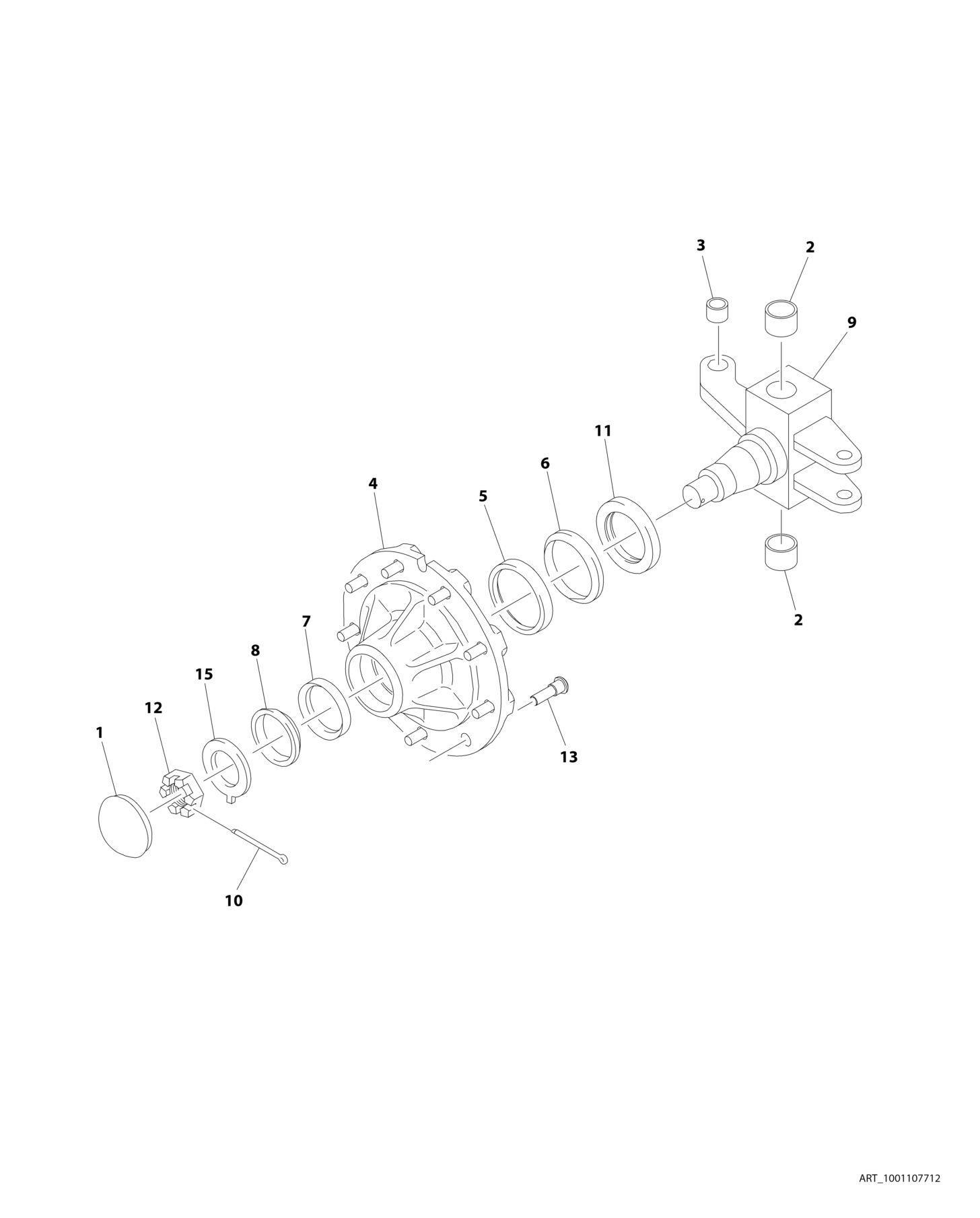

FIGURE 1-3. HUB AND SPINDLE ASSEMBLY - RH
FIGURE 1-3. HUB AND SPINDLE ASSEMBLY - RH
ITEM PART NUMBER QTY
DESCRIPTION
1001107712 Ref HUB AND SPINDLE ASSEMBLY - RH 1 7020137 1 Cap, Dust 2 0961951 2 Bushing 3 0962140 1 Bearing 4 70002434 1 Hub 5 7020036 1 Cup, Bearing (Inner) (Part of Item 4) 6 7020037 1 Cone, Bearing (Inner) 7 7020038 1 Cup, Bearing (Outer) (Part of Item 4) 8 7020039 1 Cone, Bearing (Outer) 9 70002435 1 Spindle 10 7020140 1 Pin, Cotter 11 7020040 1 Seal 12 7020054 1 Nut 1-1/4 13 7020041 9 Stud 5/8 15 7020055 1 Washer 1-1/4
REV
C
