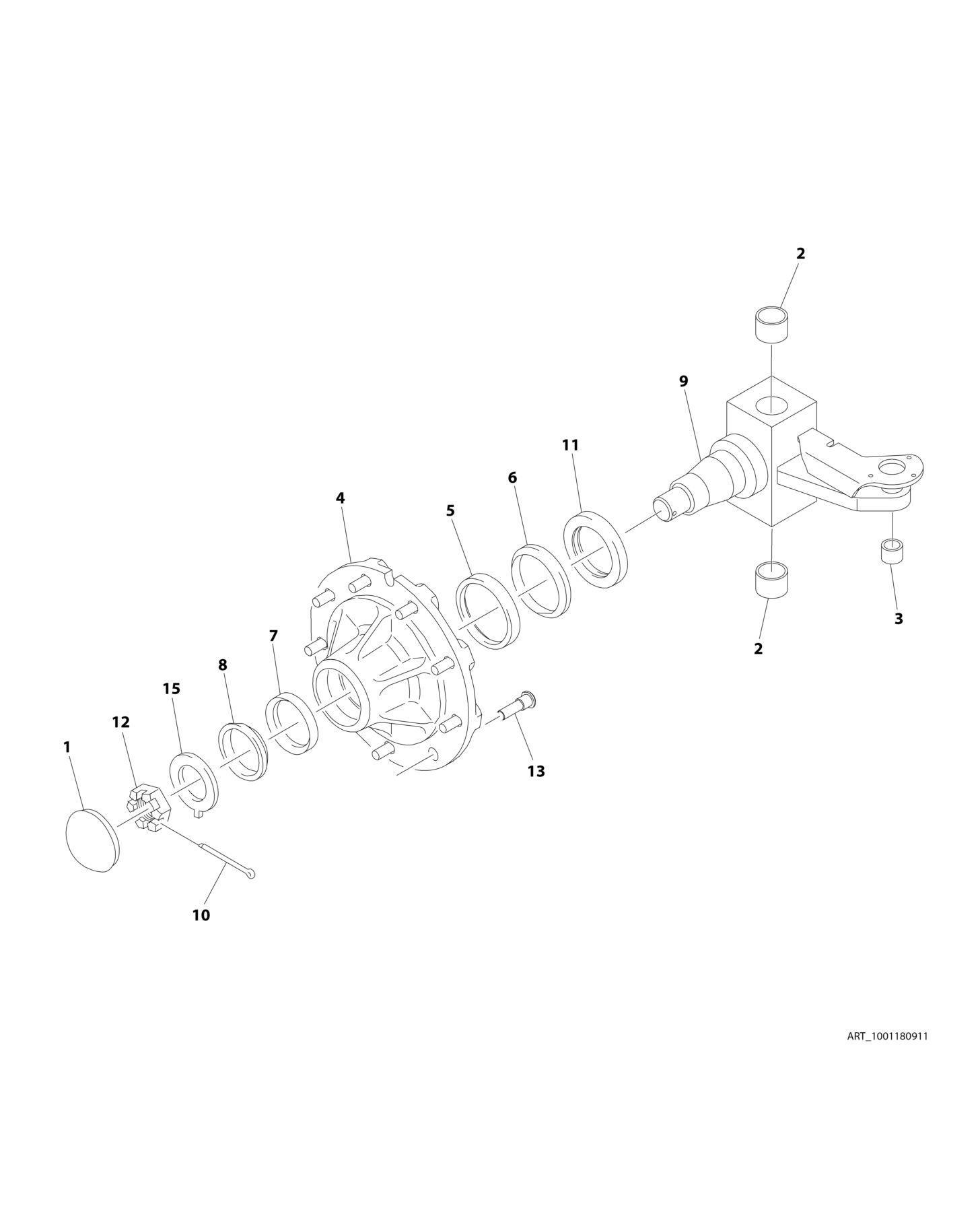

FIGURE 1 2. HUB AND SPINDLE ASSEMBLY LH

FIGURE 1-2. HUB AND SPINDLE ASSEMBLY - LH

FIGURE 1-2. HUB AND SPINDLE ASSEMBLY - LH

ITEM PART NUMBER QTY

DESCRIPTION

1001180911 Ref HUB AND SPINDLE ASSEMBLY - LH 1 7020137 1 Cap, Dust 2 0961951 2 Bushing 3 0962140 1 Bearing 4 70002434 1 Hub 5 7020036 1 Cup, Bearing (Inner) (Part of Item 4) 6 7020037 1 Cone, Bearing (Inner) 7 7020038 1 Cup, Bearing (Outer) (Part of Item 4) 8 7020039 1 Cone, Bearing (Outer) 9 See Note NSS Spindle (Note: Use p/n 1001180911) 10 7020140 1 Pin, Cotter 11 7020040 1 Seal 12 7020054 1 Nut 1-1/4 13 7020041 9 Stud 5/8 15 7020055 1 Washer 1-1/4

REV

D
